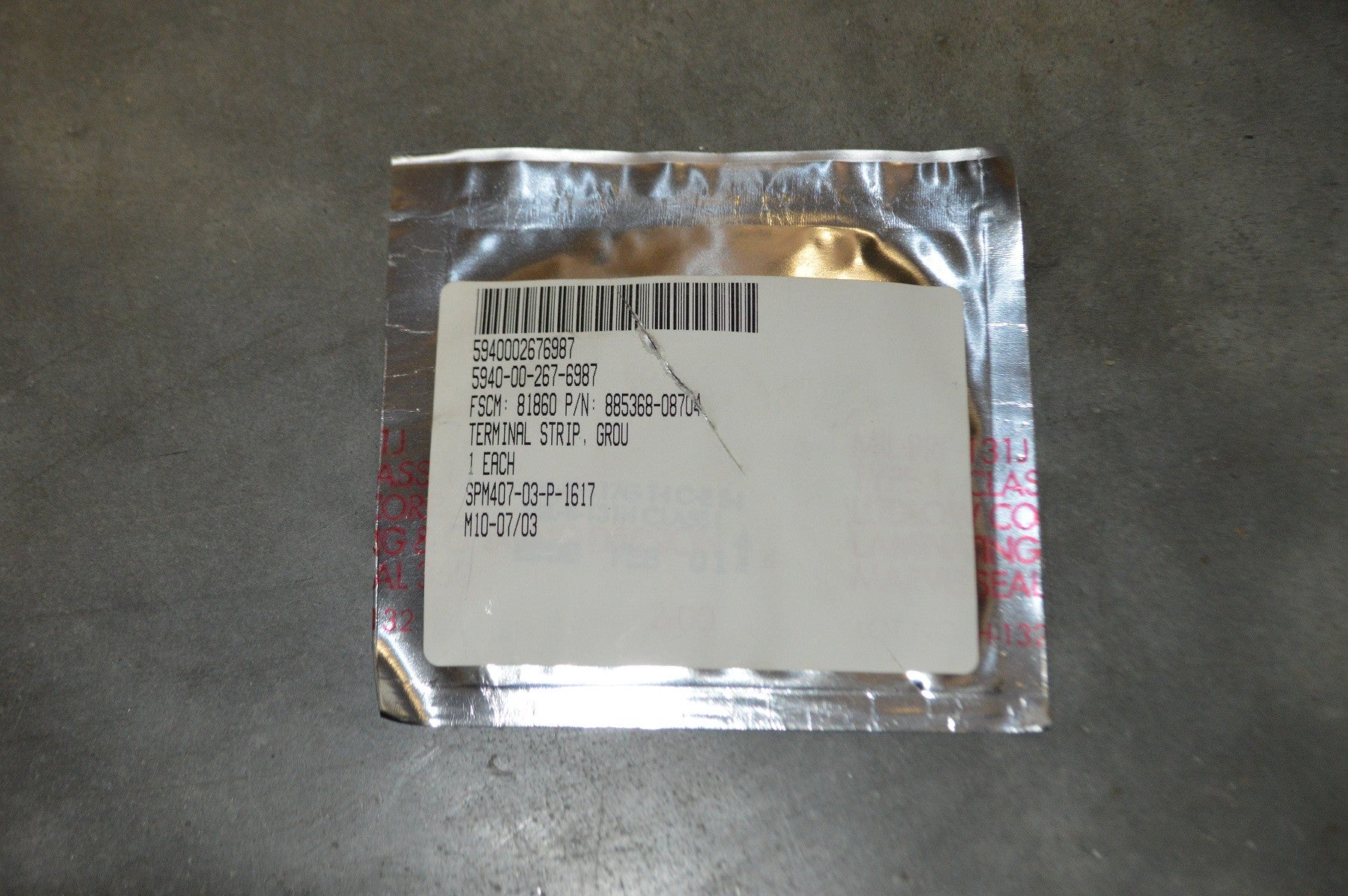

Grounding Terminal Switch NSN:5940-00-267-6987 P/N:885368-08704
Please fill out the form below for a price quote and availability on this item.
Grounding Terminal Switch- A rigid metallic item of electrically conductive material. it is designed with terminal(s) and/or wire-accommodating holes on one end and facilities for connection to another conductive surface on the other end. for items without terminals or wire-accommodating facilities, see plate, electrical grounding; contact strip, radio frequency grounding; and strip, electrical grounding.
| Material: | Bronze, qq-p-330, comp d-canceled |
| Mounting Configuration: | Two 0.196 inch dia mtg holes on 3.625 inch mtg centers |
| Mounting Method: | Hole |
| Overall Length: | 4.000 inches nominal |
| Overall Thickness: | 0.005 inches nominal |
| Overall Width: | 0.750 inches nominal |
| Wire Accommodation Quantity: | 2 |
| Wire Accommodation Size: | 0.196 in. dia of holes |
| Surface Treatment: | Cadmium, qq-p-416, type 1, class b |
| Unit Type: | Plate |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
