Globe Valve 3/4" P/N 590T700-34 NSN: 4820-01-444-1097
Regular price
$39.00

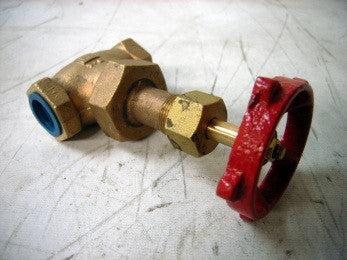

Globe valve 3/4" - Part Number 590T700-34
| For Use With/On: | Mars class afs |
| Bonnet Attachment Method: | Union |
| Bonnet Type: | Inside screw |
| Connection Style: | Plain,optional end(pipe) all ends |
| Connection Type: | Threaded internal pipe all ends |
| Furnished Items And Quantity: | 1 handwheel |
| Features Provided: | Bonnet packing |
| Flow Control Device: | Disk |
| Material: | Copper alloy 836 body |
| Material: | Copper alloy 836 stem |
| Maximum Operating Pressure: | 150.0 pounds per square inch 1st response |
| Maximum Operating Pressure: | 300.0 pounds per square inch 2nd response |
| Media For Which Designed: | Steam 1st response |
| Media For Which Designed: | Water-oil-gas 2nd response |
| Nominal Thread Size: | 0.750 inches all ends |
| Material Document And Classification: | Astm b62 assn std single material response body |
| Material Document And Classification: | Astm b62 assn std single material response stem |
| Style Designator: | Straight thru |
| Thread Direction: | Right-hand all ends |
| Thread Series Designator: | Npt all ends |
| Valve Operation Method: | Manual |
