Gear Spur for Sheridam M551 Tank NSN: 009-05-7551 P/N:  8356391

Regular price $39.00

New in box!

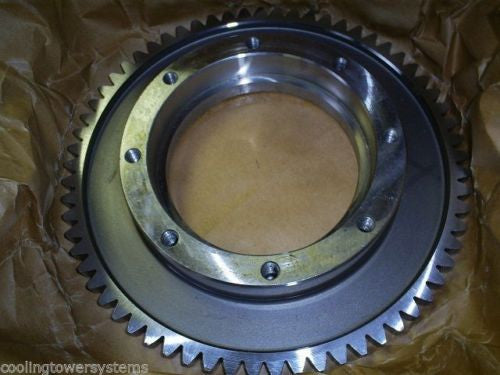

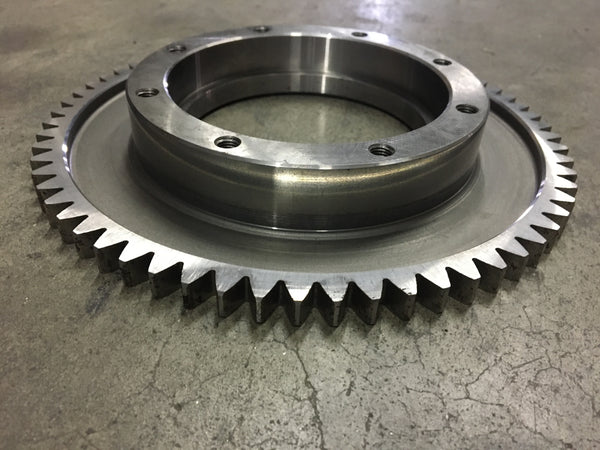

Gear Spur for Sheridan M551 Military Tank

NSN: 009057551

P/N:  8356391

Characteristics:



AAQL Body style 3B Webbed, Offset, Solid
ABSX Attachment method Mounting hole
AGJS Pitch diameter 8.1250 Inches nominal
AJLA Teeth quantity 65
ANTP Bore style 14 w/ counter-bore both ends
CMLK Mounting hole thread series designator UNF Axially through hub, first end
CMLM Mounting hole thread quantity per inch 24 Axially through hub, first end
CQFM Hardness rating 32.0 Rockwell C Minimum hub and 36.0 Rockwell C Maximum hub
CQFM Hardness rating 85.0 Rockwell superfical 15-N minimum teeth
CQLT Mounting hole nomial thread size 0.312 Inches transversely through hub, first end
CTQY Mounting hole type and quantity 8 Threaded axially through hub, first end
CWCD Nominal outside diameter 8.358 Inches
CWNH Tooth form Standard
CWPP Pressure angle  25.0000 Degrees
CWQL Nominal distance between body face and protruding hub end 0.762 Inches first end
CWRB Body recess nominal depth  0.203 Inches first end
CWRM Face nominal width 0.380 Inches
CWRS Bore nominal diameter 3.938 Inches both ends
CWTB Counterbore nominal depth 0.706 Inches first end
CWTG Counterbore nominal diameter 4.330 Inches first end
CWTR Hub style designator 1 Plain first end
CWTX Hub nominal diameter 5.502 Inches first end
CWZN Bolt hole circle nominal diamter 4.920 Inches axially through hub, first end
MATT Material Steel comp 4140 overall
MDCL Material document and classification 66 Fed STD Single material response overeall and AISI/SAE 4140 ASSN STD Single material response overall
STYL Style designator 8 Protruding hub, Recessed body

Used on tank made in 1960's!
