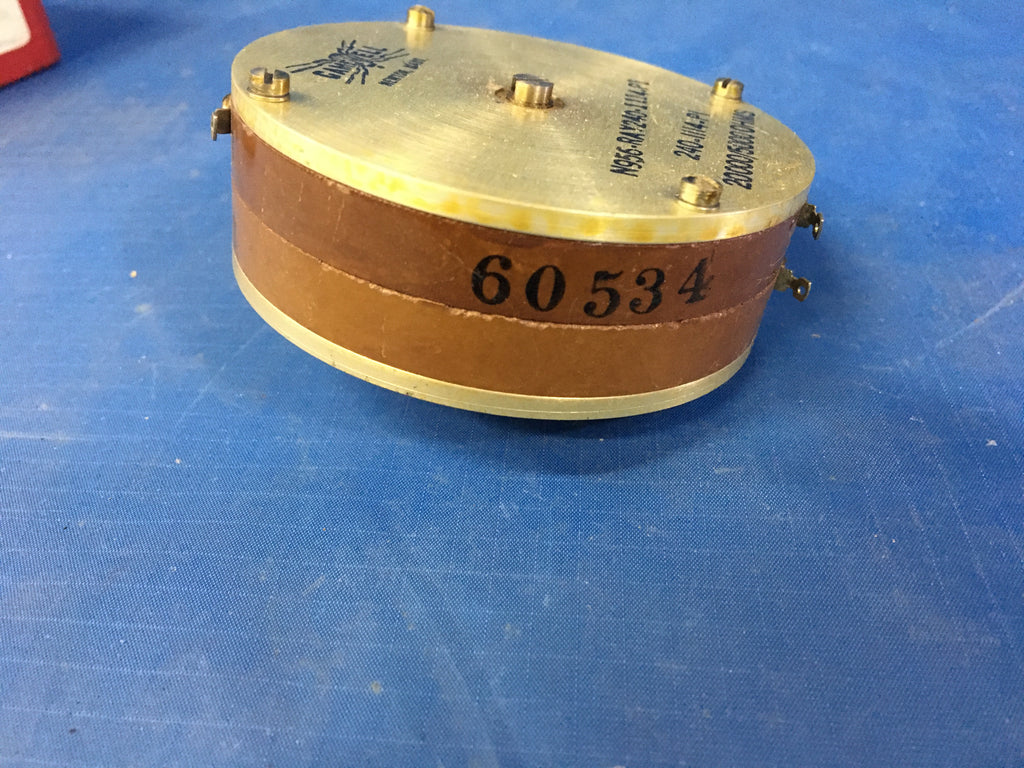

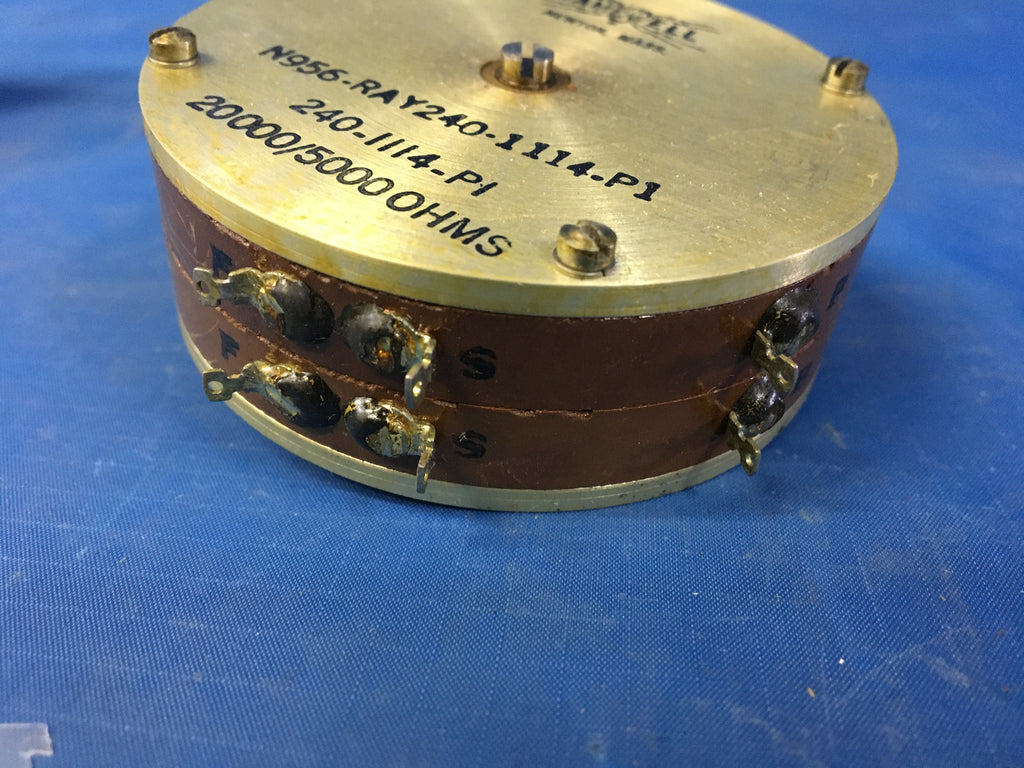

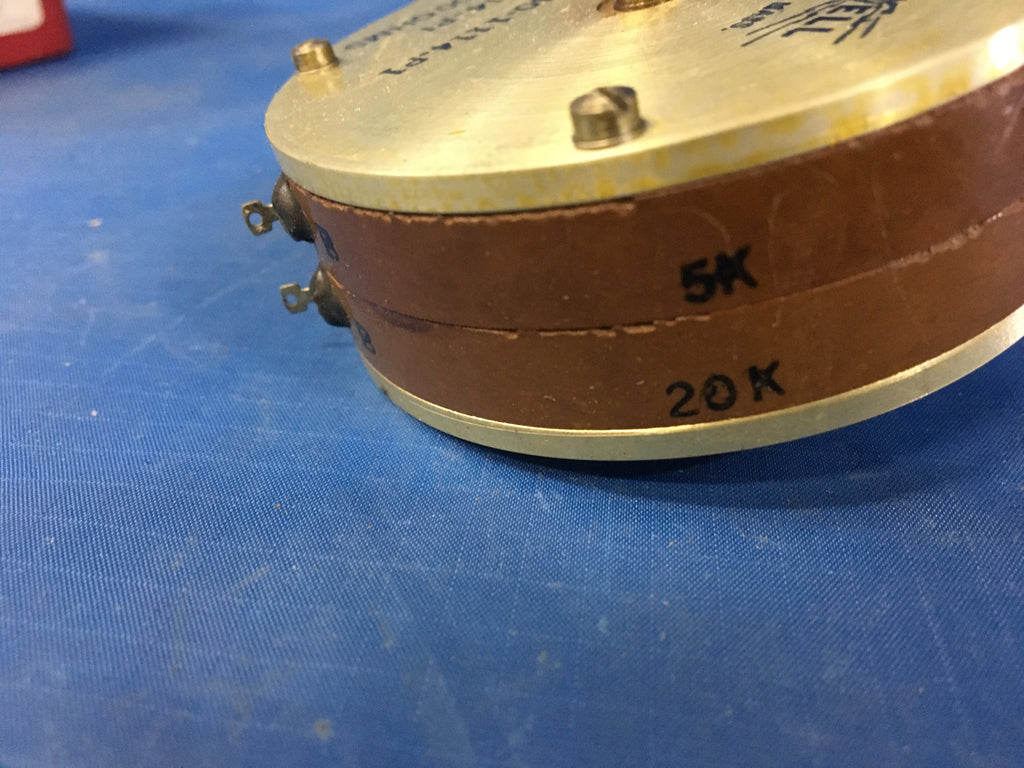

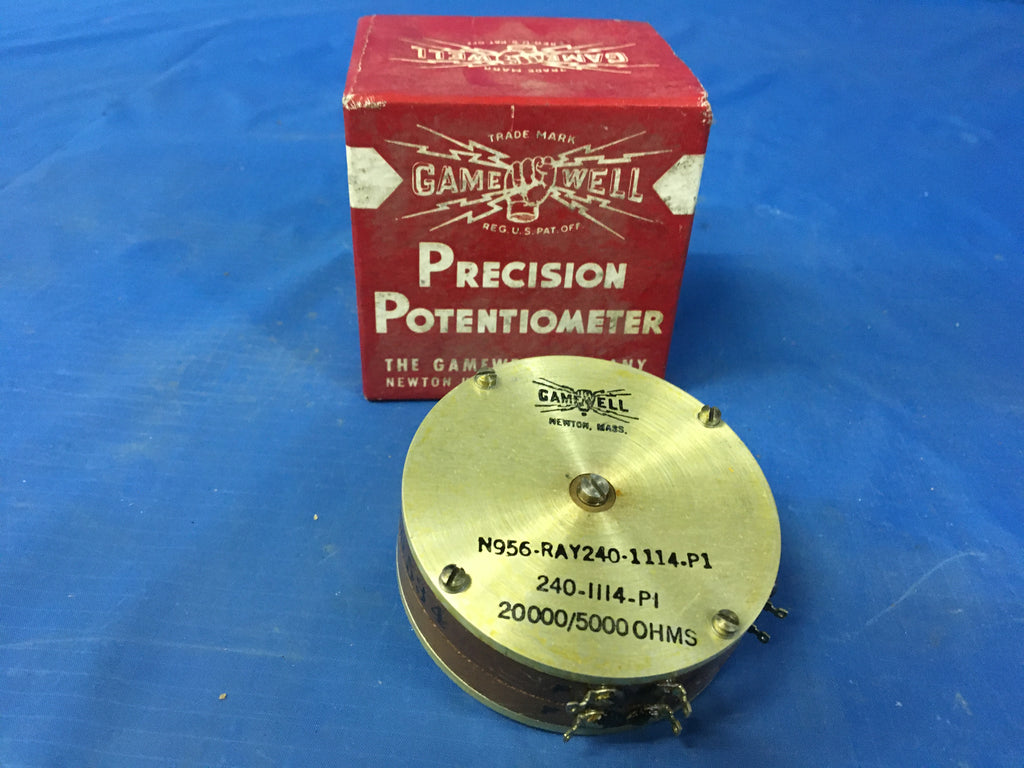

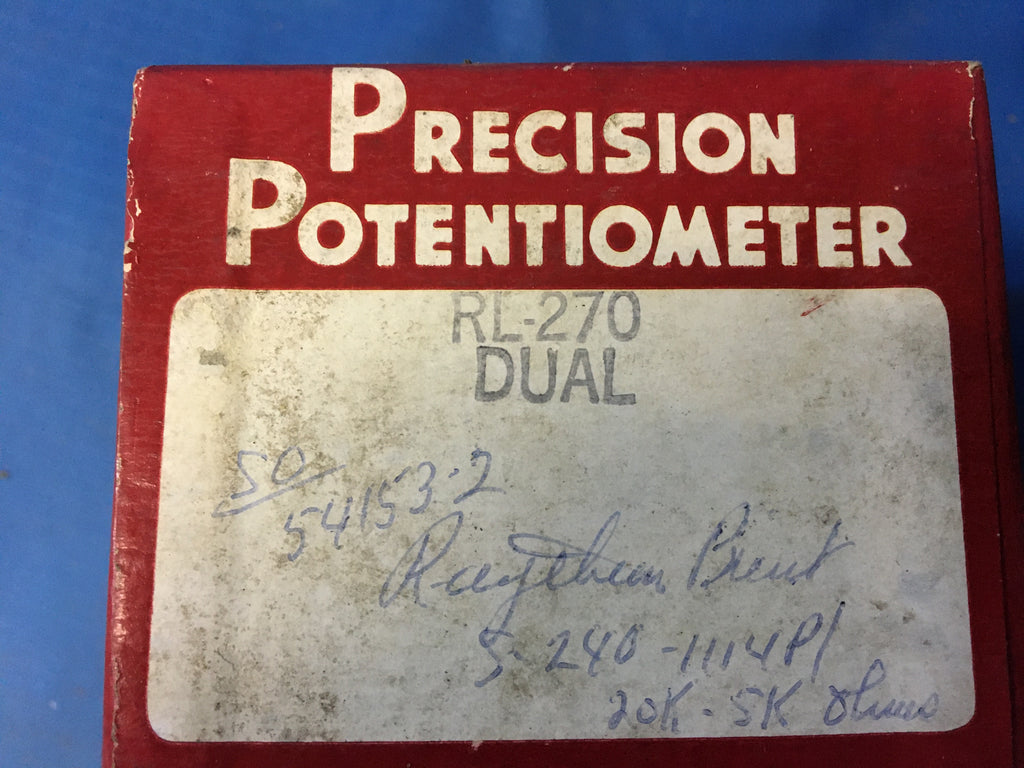

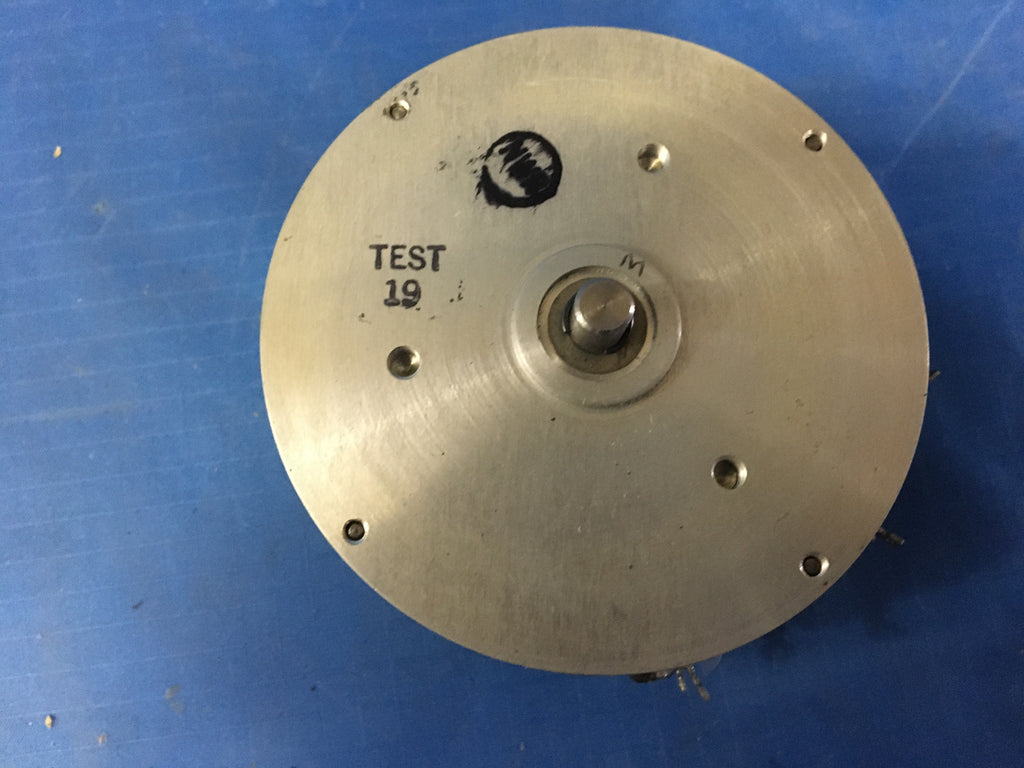

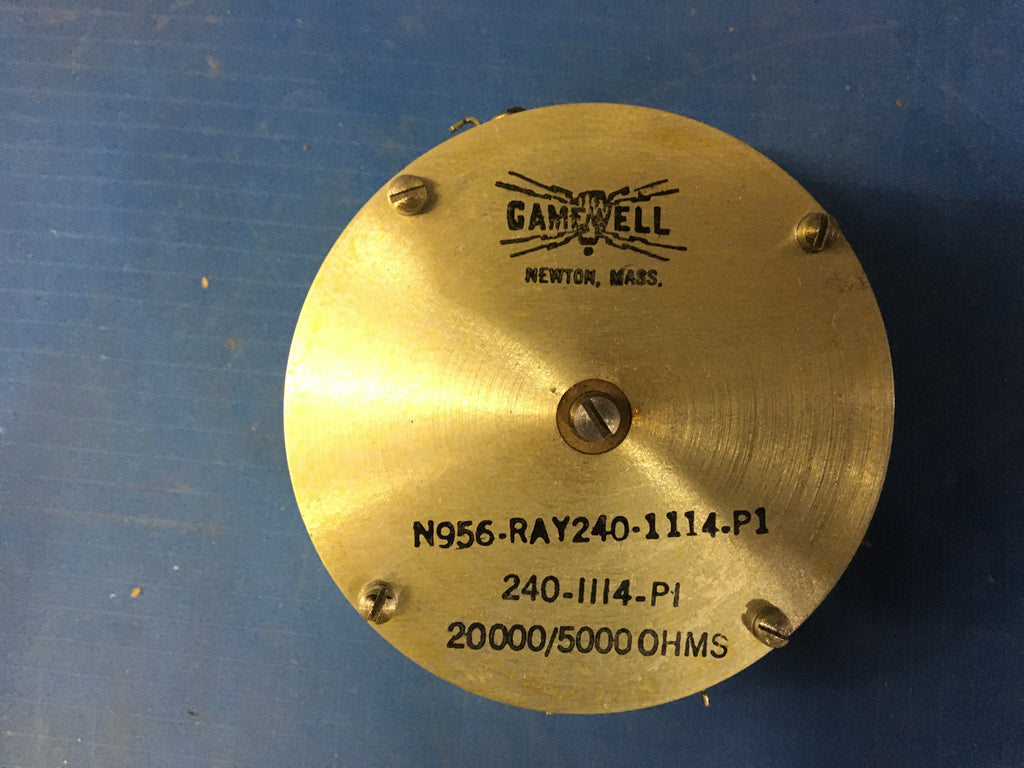

Gamewell Precision RL-270 Potentiometer 20000/5000 OHMS NSN:5905-00-549-8316 Model:240-1114P1

Regular price $69.99

Nonprecision Wire Wound Variable Resistor

NSN: 5905-00-549-8316 | Model: 240-1114P1
ITAR Registered seal

A resistor in which a sliding or rolling contact moves over an exposed area of the restive element to change the oh mic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see resistor, adjustable. For items with step by step variation, see rheostat and resistor, step by step. For tandem-mounted items designed to function together as an attenuate (and rated accordingly), see attenuator, variable. Excludes resistor (1), variable, non wire wound, nonprecision; resistor (1), variable, non wire wound, precision; and resistor (1), variable, wire wound, precision.

NSN Properties and Flags
NATO Stock Number
5905-00-549-8316
DEMIL
Yes - ITAR Controlled
Section Quantity
2
Body Style
Cylindrical servo mounted
Reliability Indicator
Not established
Pilot Diameter
1.5620 inches
Pilot Length
0.0620 inches
Undercut Diameter
1.625 inches
Undercut Width
0.0780 inches
Body Diameter
1.750 inches
Angle Of Mounting Hole In Deg
90.0
Angle Between Centerlines Of Mounting Holes In Deg
120.0
Shaft Diameter
0.250 inches
Shaft Length
0.438 inches
Body Length
0.970 inches
Mounting Lip Diameter
1.7500 inches
Mounting Lip Depth
0.0930 inches
Mounting Hole/stud Circle Diameter
1.000 inches
Shaft Style
Round
Actuator Type
Dual concentric
Effective Electrical Rotation In Deg Angular Rotation
360.0
Screw Thread Diameter
0.164 inches
Screw Thread Series Designator
Unc
Screw Thready Qty Per Inch (tpi)
32.0
Mounting Facility Quantity
3
Terminal Location
Radially positioned over more than half the circumference
Mounting Method
Threaded hole
Electrical Resistance Per Section
5.000 kilohms 2ND section
Rotary Actuator Travel In Angular Deg
360.0
Power Dissipation Rating Per Section In Watts
6.0 free air all sections
Fixed Tap Quantity Per Section
1 2ND section
Tap Location Tolerance Per Section
-2.0 to 2.0 ohms all sections
Resistance Tolerance Per Section In Percent
-10.0 to 10.0 all sections
Actuator Travel Control Feature
Continuous motion
Tap Location From Ccw Terminal Per Section In Ohms
2500.0 all sections
Standard Taper Curve Per Section
A all sections
Terminal Type And Quantity
7 tab, solder lug
