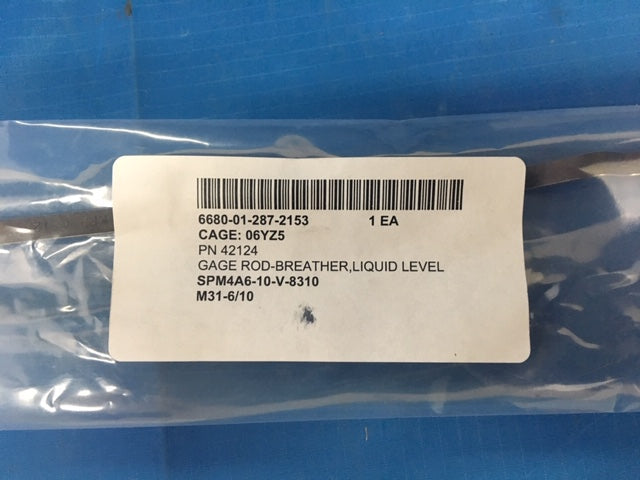

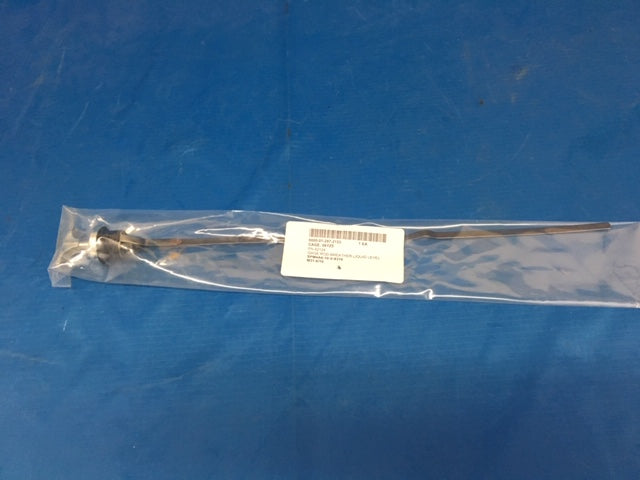

Gage Rod NSN:6680-01-287-2153 P/N:42124
Please fill out the form below for a price quote and availability on this item.

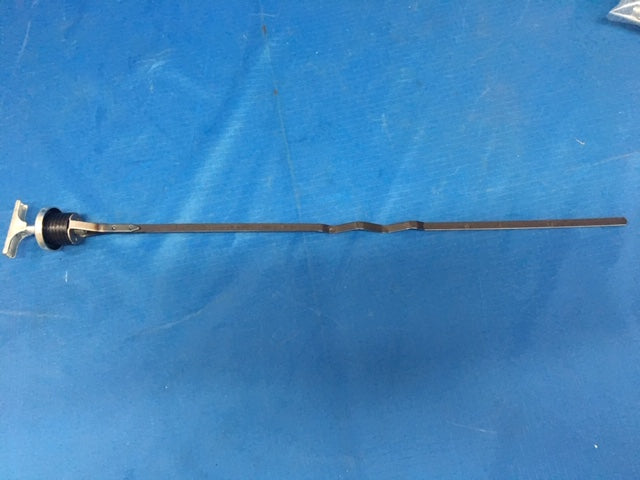

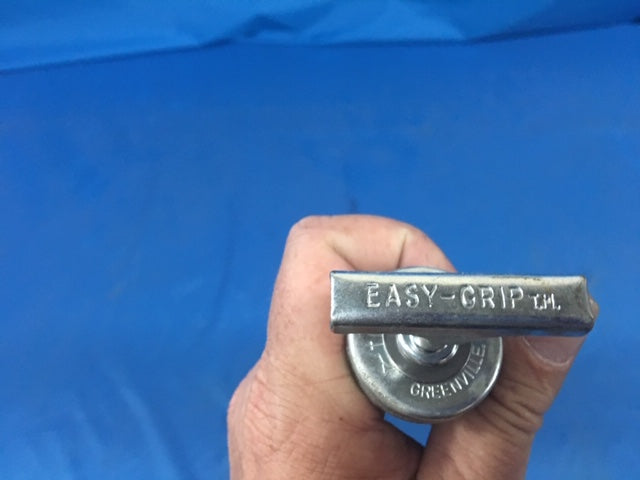

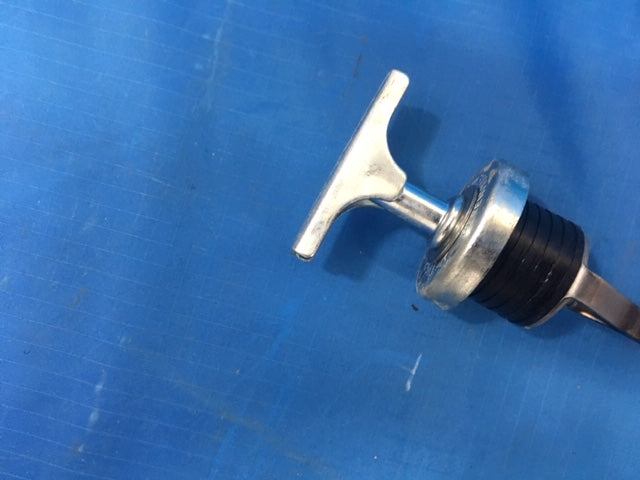

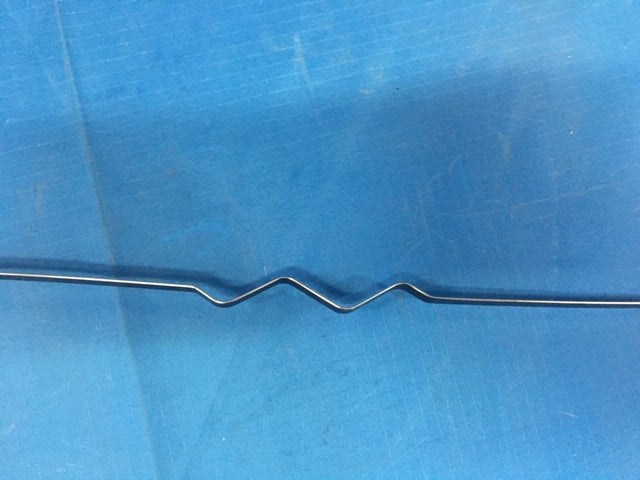

Gage Rod- A thin metal strip, of various cross-sectional shapes, having graduations on one end and a breather on the opposite end. it is designed to be inserted into an engine, pump, or compressor crankcase, transmission, gearcase, or the like, to determine the level of the liquid. for items with a cap, see gage rod-cap, liquid level and items without a cap or breather, see gage rod, liquid level. for items designed to measure the liquid level of bulk petroleum tanks, see gage stick, petroleum.
|Distance From Rod End To Scale Graduation:||4.520 inches nominal|
|Breather Filter Material:||Not provided|
|Breather Locking Type:||Any acceptable|
|Breather Mounting Type:||Unthreaded|
|Mounting Outside Diameter:||0.970 inches nominal|
|Rod Length From End To Breather:||17.000 inches|
|Rod Measuring Portion Thickness:||0.030 inches nominal|
|Rod Measuring Portion Width:||0.250 inches nominal|
|Scale Inscription:||Add and full|
|Overall Length:||18.060 inches nominal|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
