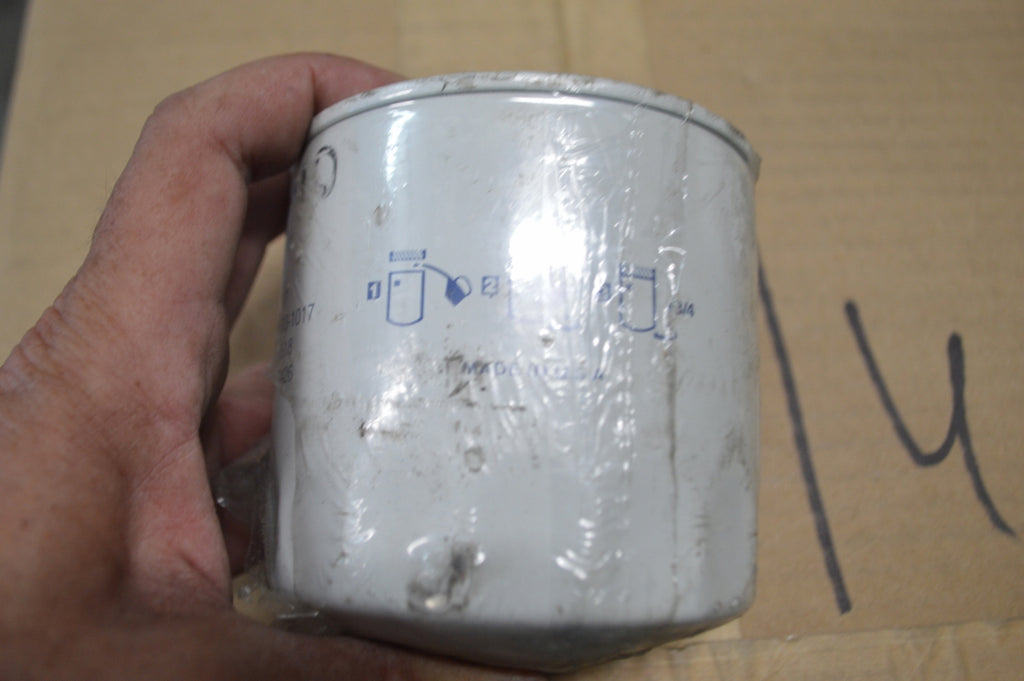

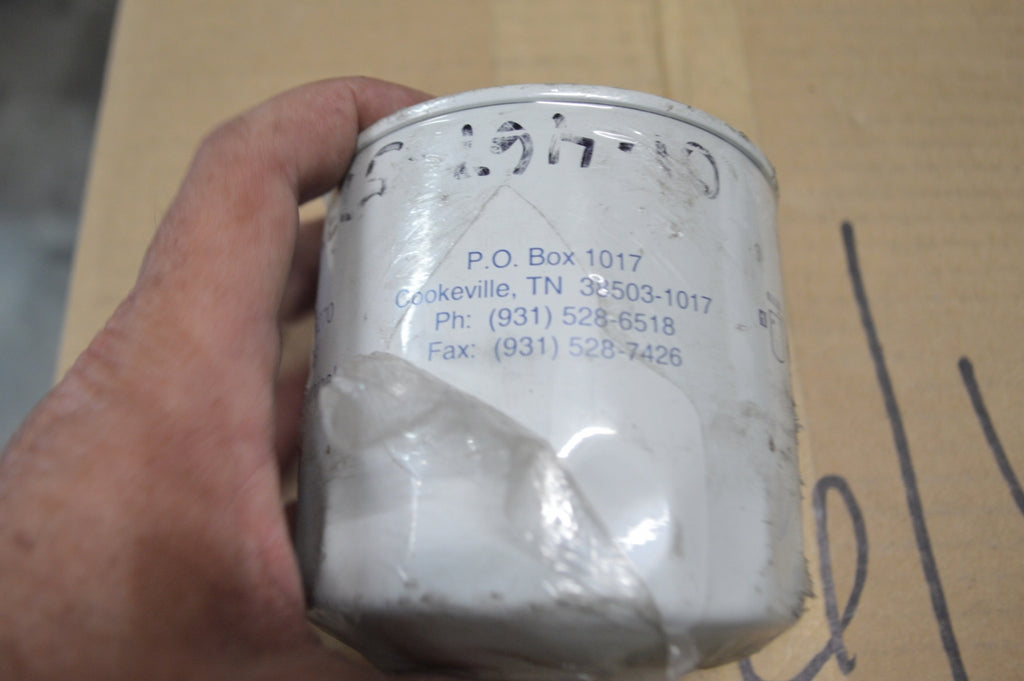

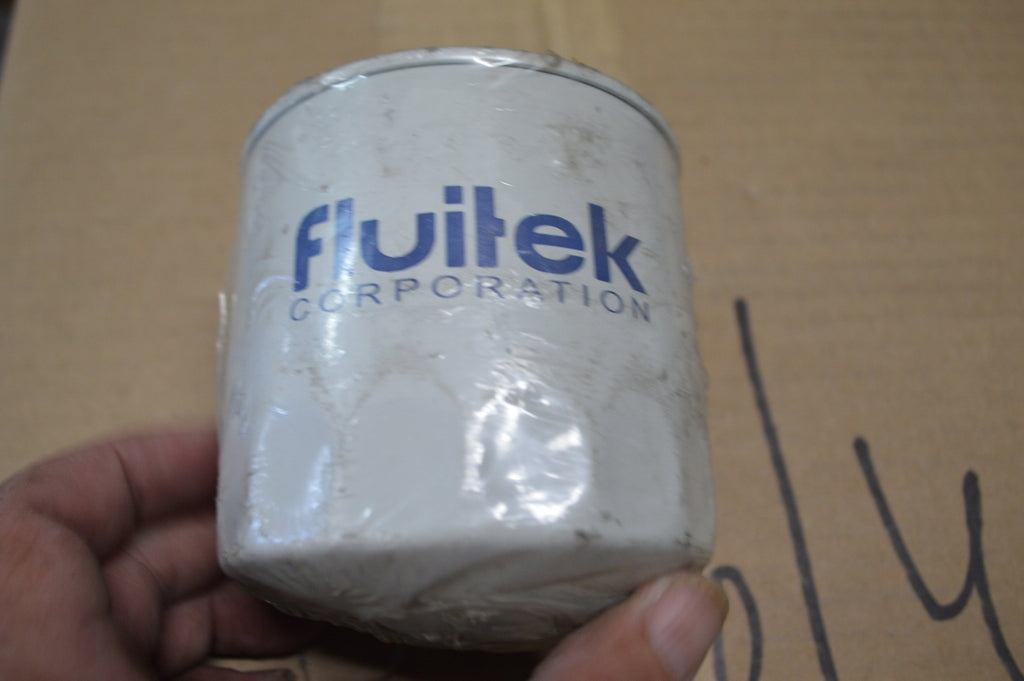

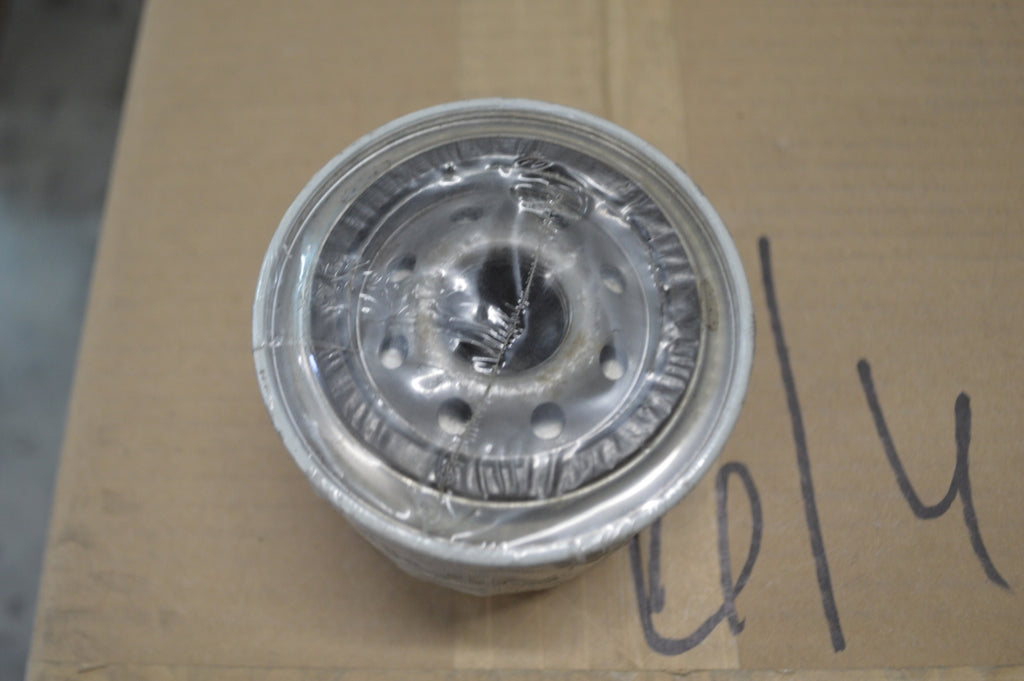

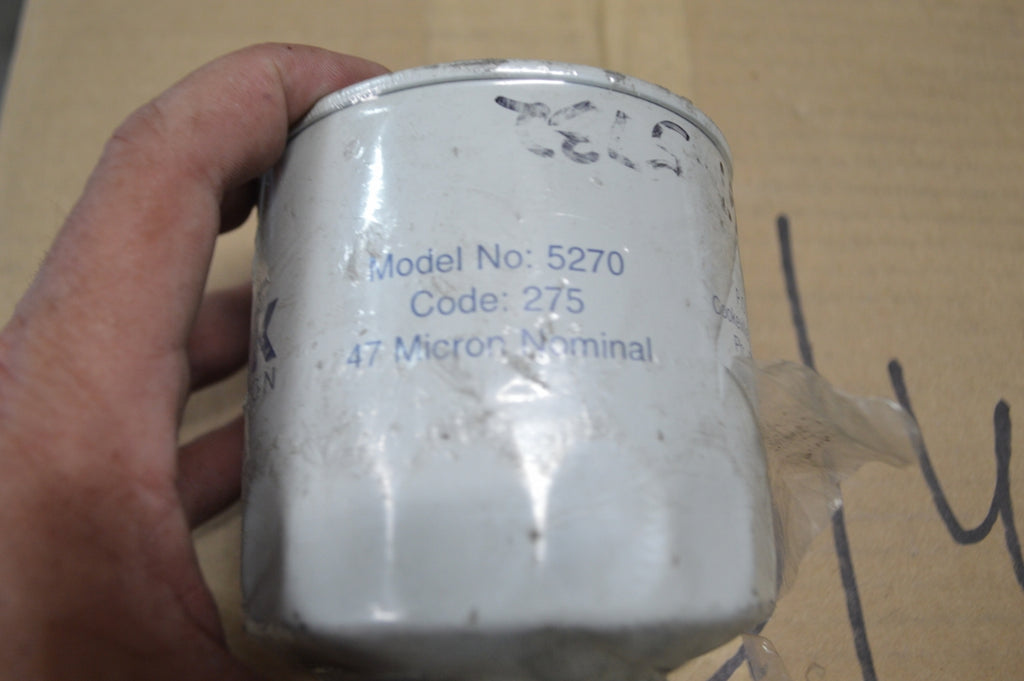

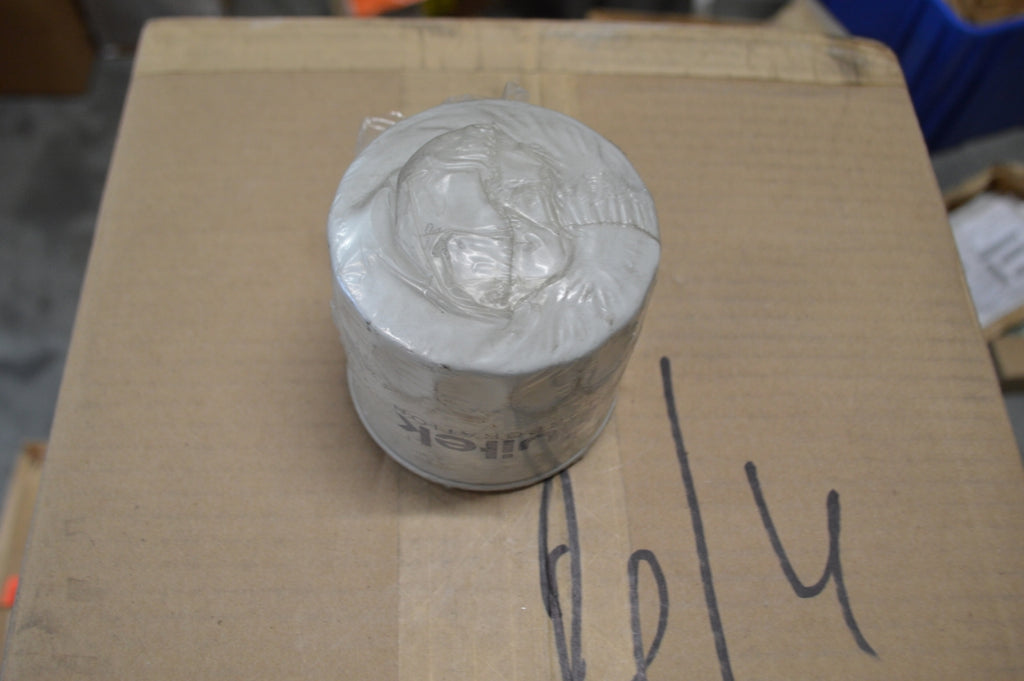

Fluitek Oil Filter P/N:5270 Model: PXS1072 NSN: 4330-01-467-5732

Please fill out the form below for a price quote and availability on this item.

Fluid Filter Element

SKU: 4330014675732 | Model: PXS1072

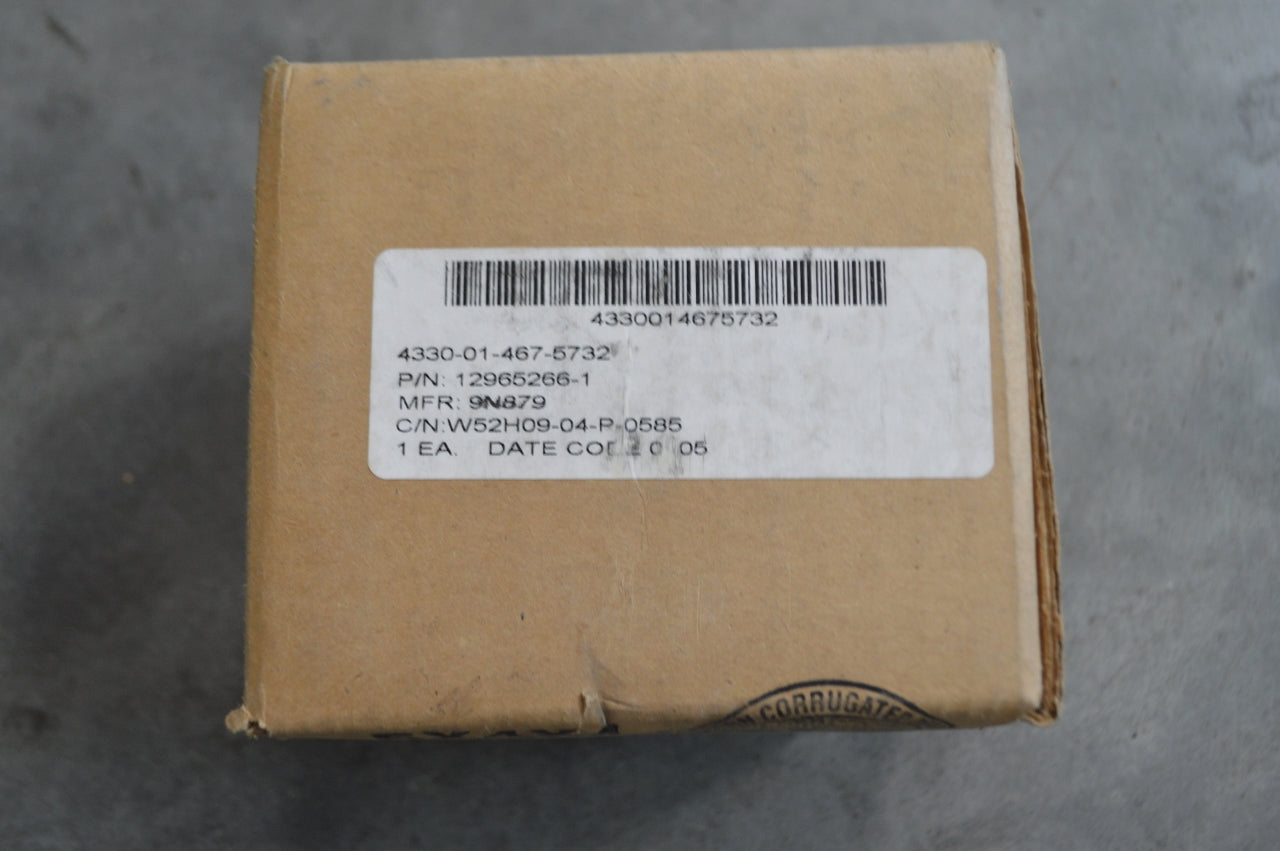

NSN 4330-01-467-5732NSN 4330-01-467-5732

Specifications from the Manufacturer

Body Diameter:
3.730 inches nominal
Filtration Rating In Microns:
5.0 nominal
Flow Direction:
Inside out
For Use With/On:
155mm, m198 howitzer
Design Type:
Body Overall Length:
3.750 inches nominal
Filtering Media Design:
Honeycomb all filtering media responses
Part Name Assigned By Controlling Agency:
Drawing item name: filter, hydraulic
Filtering System For Which Designed:
Full flow
Special Features:
The item is compatible with: nsn 9150-00-935-9807 fluid, petroleum base // nha: 12965265
Aluminum alloy body
Media For Which Designed:
Fuel/oil, hydrocarbon
Style Designator:

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
