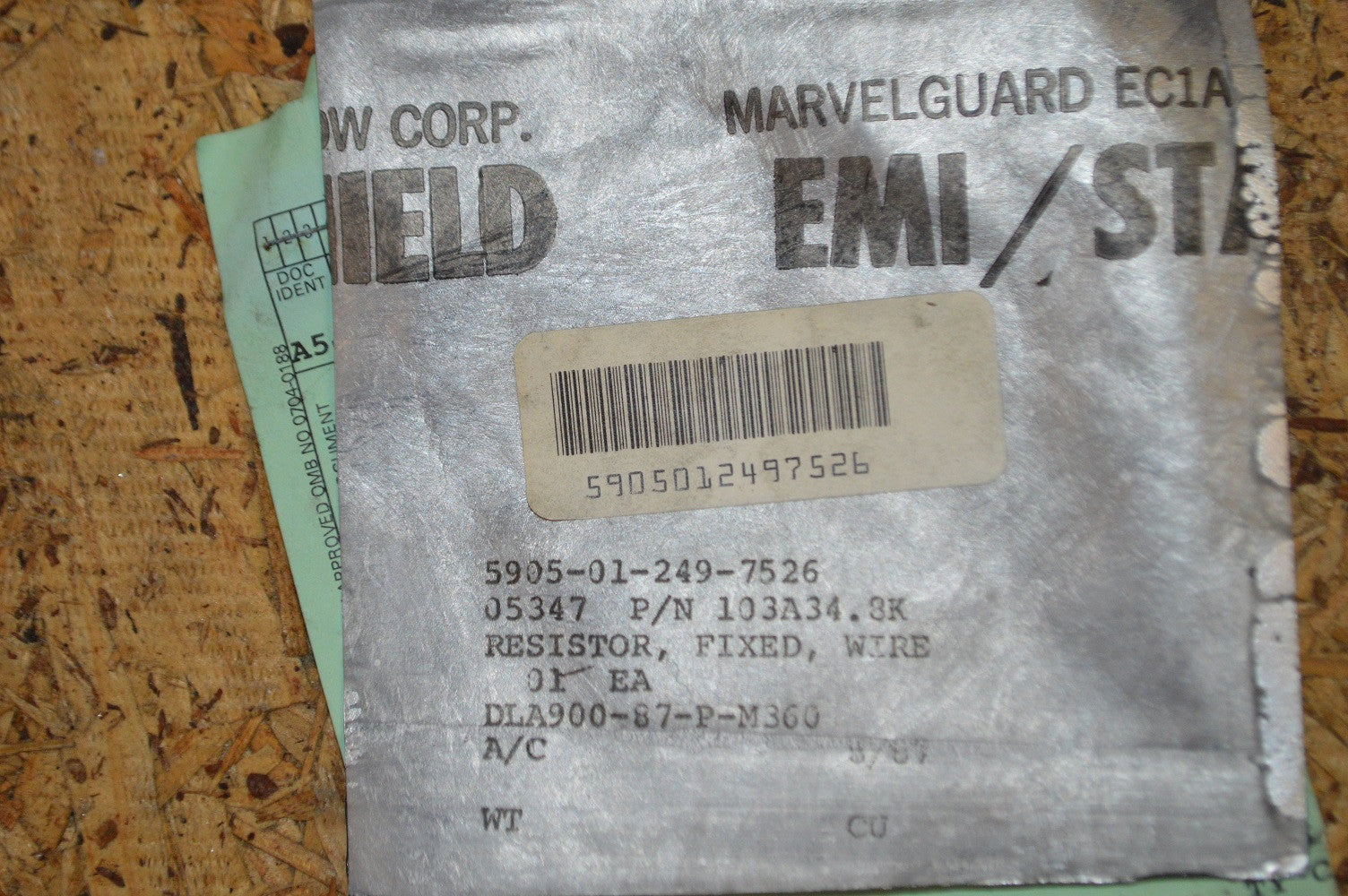

Fixed Wire Wound Nonind Resistor NSN: 5905-01-249-7526 P/N: J167P3482A
Please fill out the form below for a price quote and availability on this item.
Inc 37404 reinstated on 010303~a resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. the items must have inherent characteristics of inducing little or no self-inductance. opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. excludes suppressor, ignition interference. see also resistor (1), fixed, wire wound, inductive.
Technical Characteristics |
|
| Electrical Resistance: | 34.800 kilohms |
| Ambient Temp In Deg Celsius At Full Rated Power: | 125.0 |
| Ambient Temp In Deg Celsius At Zero Percent Rated Power: | 145.0 |
| Body Diameter: | 0.160 inches maximum |
| Body Length: | 0.310 inches maximum |
| Cubic Measure: | 0.006 cubic inches |
| Inclosure Method: | Encapsulated |
| Reliability Indicator: | Not established |
| Resistance Tolerance In Percent: | -1.000/+1.000 |
| Power Dissipation Rating In Watts: | 10.000 free air |
| Specification/standard Data: | 07482-j167 manufacturers source control |
| Style Designator: | Axial terminal each end |
| Temp Range Of Temp Coefficient In Deg Celsius: | -55.0/+145.0 |
| Temp Coefficient Of Resistance In Ppm Per Deg Celsius: | -5.0/+5.0 |
| Terminal Length: | 1.750 inches minimum |
| Terminal Type: | Wire lead |
| Unpackaged Unit Weight: | 1.0 grams |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
