Military Specifications RER75FR402R NOS Fixed Resistor Wire Wound .402 OHMS 30W NSN:5905-00-132-5400

Please fill out the form below for a price quote and availability on this item.

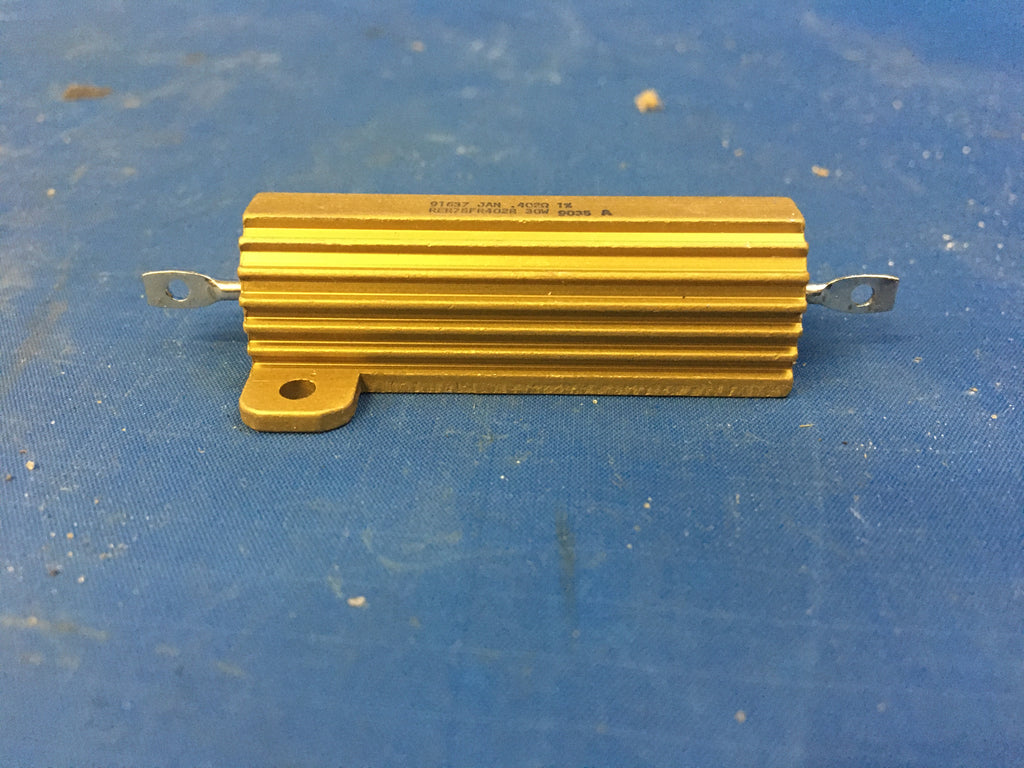

Inductive Wire Wound Fixed Resistor

NSN: 5905-00-132-5400 | Model: RER75FR402R
ITAR Registered seal
Replacements:
  • 5905-00-132-5400 replaces 5905-00-939-6326
  • 5905-00-132-5400 replaces 5905-00-989-5658
Schedule B & Trade:
  • Schedule B: 8533390080 (NAICS 334416)

    Wirewound variable resistors, nesoi

  • SITC: 77233

    Wirewound electrical variable resistors (including rheostats and potentiometers)

  • End Use: 20005

    Electric apparatus

NSN Properties and Flags
NATO Stock Number
5905-00-132-5400
DEMIL
Yes - ITAR Controlled
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
-100.0/+100.0
Electrical Resistance
0.402 ohms
Resistance Tolerance In Percent
-1.000 to 1.000
Ambient Tempurature In Deg Celsius At Full Rated Power
25.0
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
275.0
Tempurature Range Of Tempurature Coefficient In Deg Celsius
-55.0/+275.0
Inclosure Method
Encased
Terminal Type
Tab, solder lug
Reliability Indicator
Established
Reliability Failure Rate Level In Percent
0.010
Terminal Length
Between 0.376 inches and 0.500 inches
Body Length
Between 1.876 inches and 2.000 inches
Body Width
Between 0.532 inches and 0.656 inches
Body Height
Between 0.594 inches and 0.656 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length
Between 1.552 inches and 1.572 inches
Power Dissipation Rating In Watts
10.000 free air
Terminal Width
0.140 inches
Mounting Hole Size
Between 0.120 inches and 0.130 inches
Cubic Measure (non-core)
0.719 cubic inches
Unpackaged Unit Weight
32.0 grams
Style Designator
Axial terminal (s)
Test Data Document
81349-mil-r-39009 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-mil-r-39009/1 government specification



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
