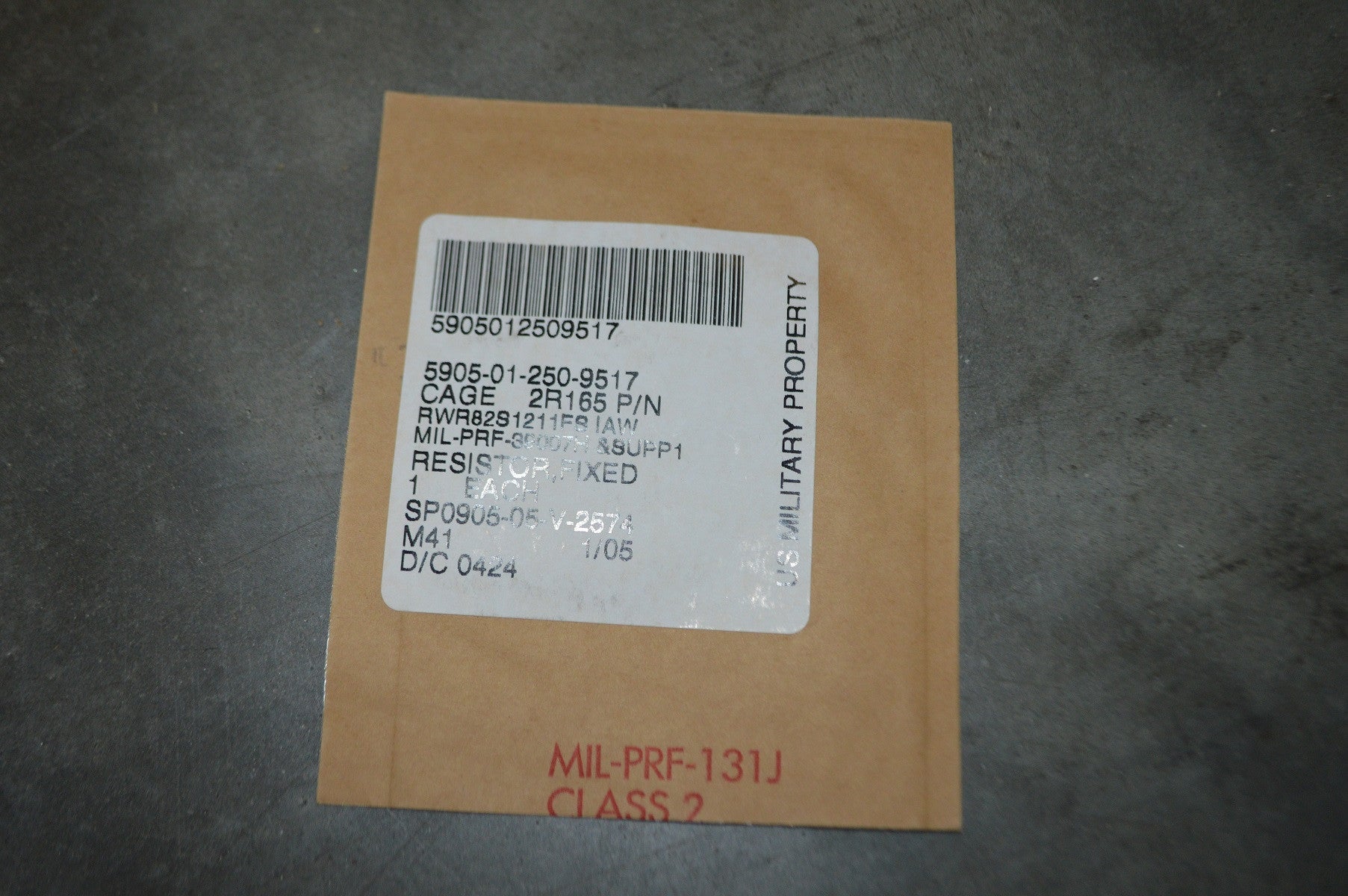

Fixed Wire Resistor NSN:5905-01-250-9517 P/N:RWR82S1211FS
Please fill out the form below for a price quote and availability on this item.
Fixed Wire Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. excludes suppressor, ignition interference.
| Electrical Resistance: | 1.210 kilohms |
| Ambient Temp In Deg Celsius At Full Rated Power: | 25.0 |
| Ambient Temp In Deg Celsius At Zero Percent Rated Power: | 275.0 |
| Body Diameter: | 0.078 inches nominal |
| Body Length: | 0.312 inches nominal |
| Cubic Measure: | 0.002 cubic inches |
| Nuclear Hardness Critical Feature: | Hardened |
| Inclosure Method: | Encapsulated |
| Reactance Characteristic: | Inductive |
| Reliability Failure Rate Level In Percent: | 0.001 |
| Reliability Indicator: | Established |
| Resistance Tolerance In Percent: | -1.000/+1.000 |
| Power Dissipation Rating In Watts: | 1.500 free air |
| Special Features: | Nuclear hardness critical items |
| Specification/standard Data: | 81349-mil-r-39007/12 government specification |
| Style Designator: | Axial terminal each end |
| Temp Range Of Temp Coefficient In Deg Celsius: | -55.0/+275.0 |
| Temp Coefficient Of Resistance In Ppm Per Deg Celsius: | -20.0/+20.0 |
| Terminal Length: | 1.500 inches minimum |
| Terminal Type: | Wire lead |
| Test Data Document: | 81349-mil-r-39007 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| Unpackaged Unit Weight: | 0.300 grams |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
