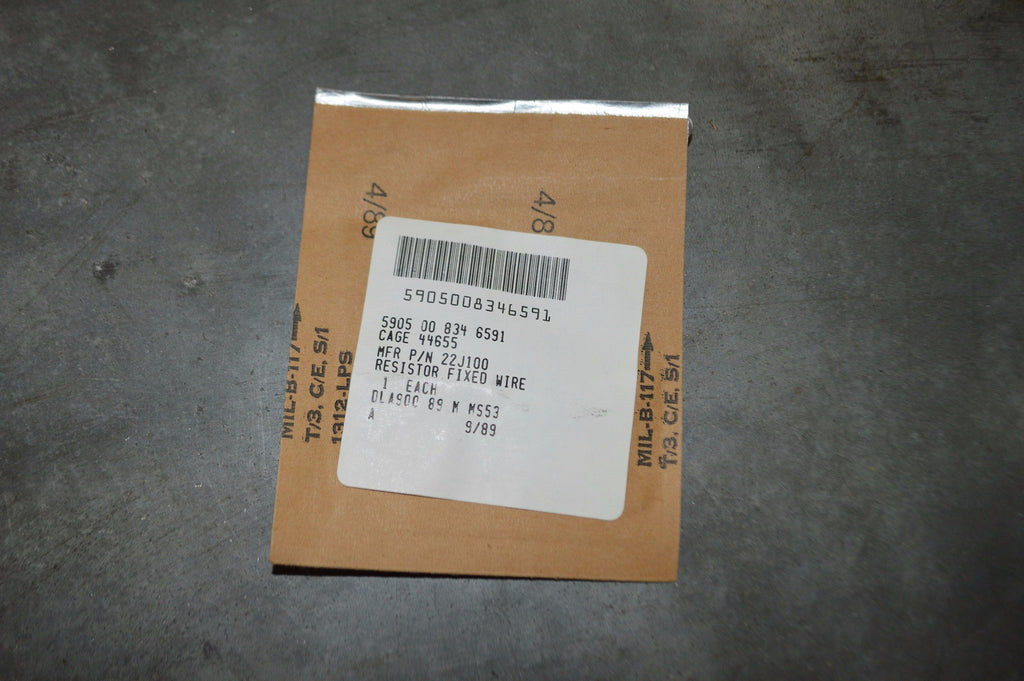

Fixed Wire Resistor NSN:5905-00-834-6591 P/N:242E1015
Please fill out the form below for a price quote and availability on this item.
Fixed Wire Resistor- Inc 37403 reinstated on 010303~a resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. the item must have inherent characteristics of inducing self-inductance. opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. excludes suppressor, ignition interference. see also resistor (1), fixed, wire wound, noninductive.
Ambient Temp In Deg Celsius At Full Rated Power: | 25.0 |
Ambient Temp In Deg Celsius At Zero Percent Rated Power: | 350.0 |
Body Diameter: | 0.219 inches maximum |
Body Length: | 0.406 inches maximum |
Electrical Resistance: | 100.000 ohms |
Inclosure Method: | Encapsulated |
Reliability Indicator: | Not established |
Resistance Tolerance In Percent: | -5.000/+5.000 |
Power Dissipation Rating In Watts: | 2.000 free air |
Style Designator: | Axial terminal each end |
Temp Range Of Temp Coefficient In Deg Celsius: | -55.0/+340.0 |
Temp Coefficient Of Resistance In Ppm Per Deg Celsius: | -30.0/+30.0 |
Terminal Length: | 1.500 inches nominal |
Terminal Type: | Wire lead |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
