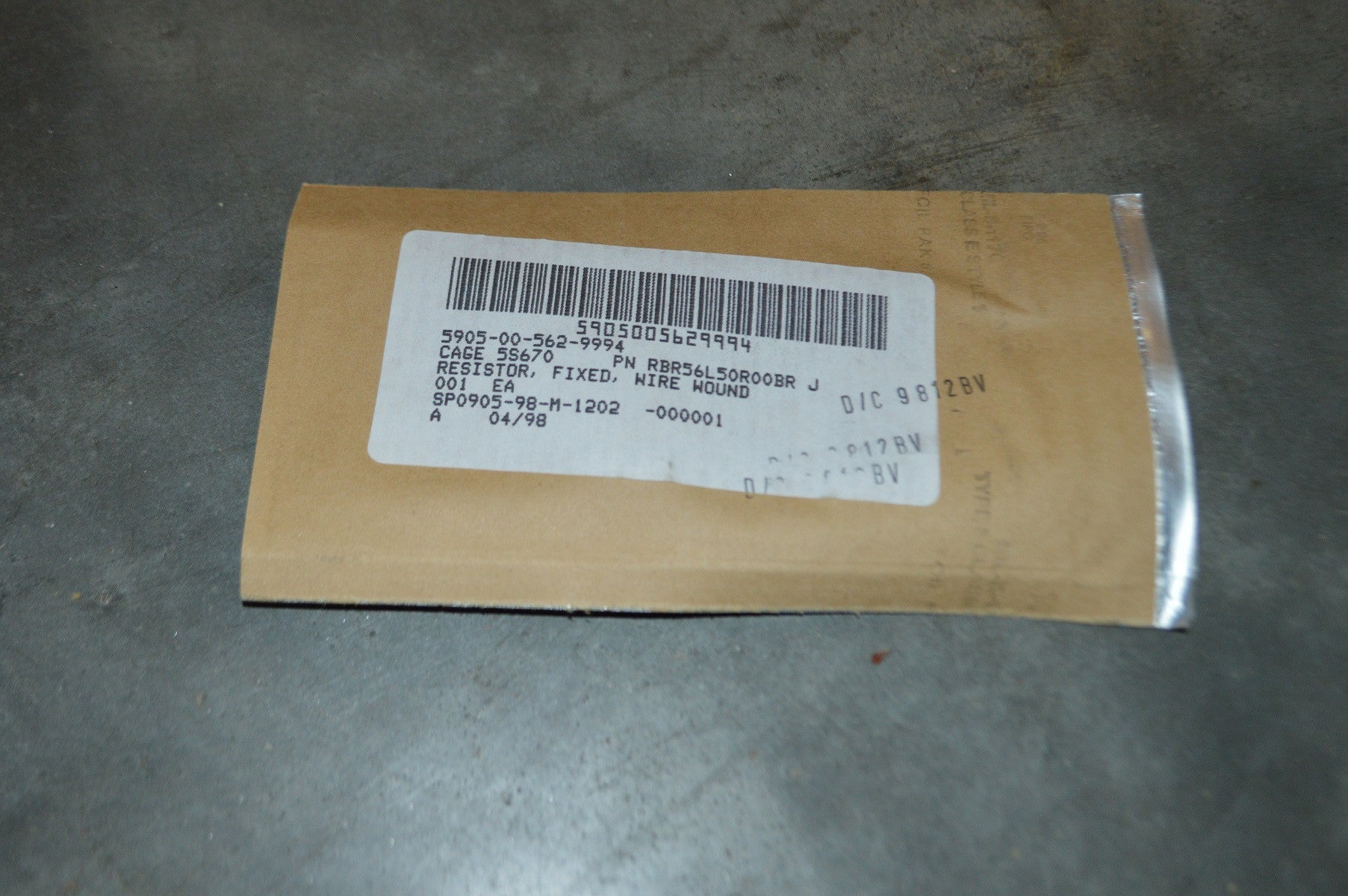

Fixed Wire Resistor NSN:5905-00-562-9994 P/N:RBR56L50R00br

Please fill out the form below for a price quote and availability on this item.

Fixed Wire Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. excludes suppressor, ignition interference.

Electrical Resistance: 50.000 ohms
Ambient Temp In Deg Celsius At Full Rated Power: 125.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power: 145.0
Body Diameter: 0.250 inches nominal
Body Length: 0.344 inches nominal
Inclosure Method: Encapsulated
Reactance Characteristic: Noninductive
Reliability Failure Rate Level In Percent: 0.010
Reliability Indicator: Established
Resistance Tolerance In Percent: -0.100/+0.100
Power Dissipation Rating In Watts: 0.125 free air
Style Designator: Axial terminal each end
Temp Range Of Temp Coefficient In Deg Celsius: -65.0/+145.0
Temp Coefficient Of Resistance In Ppm Per Deg Celsius: -15.0/+15.0
Terminal Length: 1.500 inches minimum
Terminal Type: Wire lead
Test Data Document: 81349-milr55182 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
