Inductive Wire Wound Fixed Resistor

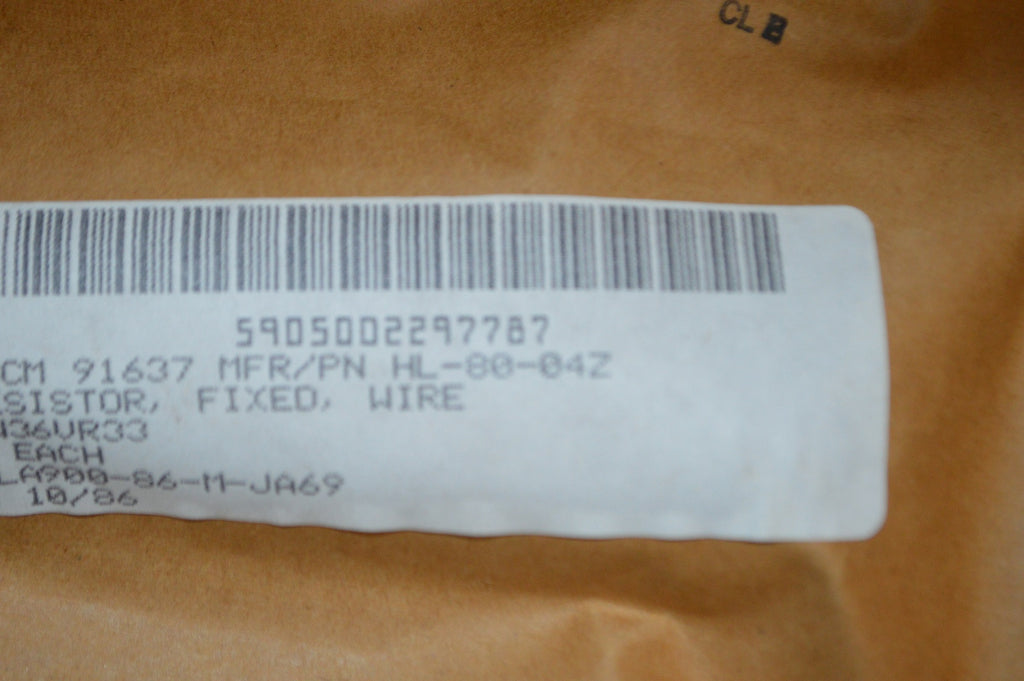

NSN: 5905-00-229-7787 | Model: RW36VR33
ITAR Registered seal

Inc 37403 reinstated on 010303~A resistor whose oh mic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes suppressor, ignition interference. See also resistor (1), fixed, wire wound, noninductive.

NSN Properties and Flags
NATO Stock Number
5905-00-229-7787
DEMIL
Yes - ITAR Controlled
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
-400.0/+400.0
Electrical Resistance
0.330 ohms
Resistance Tolerance In Percent
-10.000/+10.000
Ambient Tempurature In Deg Celsius At Full Rated Power
25.0
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
350.0
Tempurature Range Of Tempurature Coefficient In Deg Celsius
-55.0/+350.0
Inclosure Method
Encapsulated
Terminal Type
Tab, solder lug
Reliability Indicator
Not established
Terminal Length
Between 1.094 inches and 1.344 inches
Body Diameter
1.312 inches
Body Length
Between 3.938 inches and 4.062 inches
Power Dissipation Rating In Watts
78.000 free air
Terminal Width
Between 0.172 inches and 0.328 inches
Cubic Measure (non-core)
5.492 cubic inches
Unpackaged Unit Weight
40.5 grams
Style Designator
Radial terminal each end
Test Data Document
81349-MIL-R-26 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-MIL-R-26/3 government specification
