Dale RE77G1000 Inductive Wire Wound Fixed Resistor NSN:5905-00-106-3761
Please fill out the form below for a price quote and availability on this item.

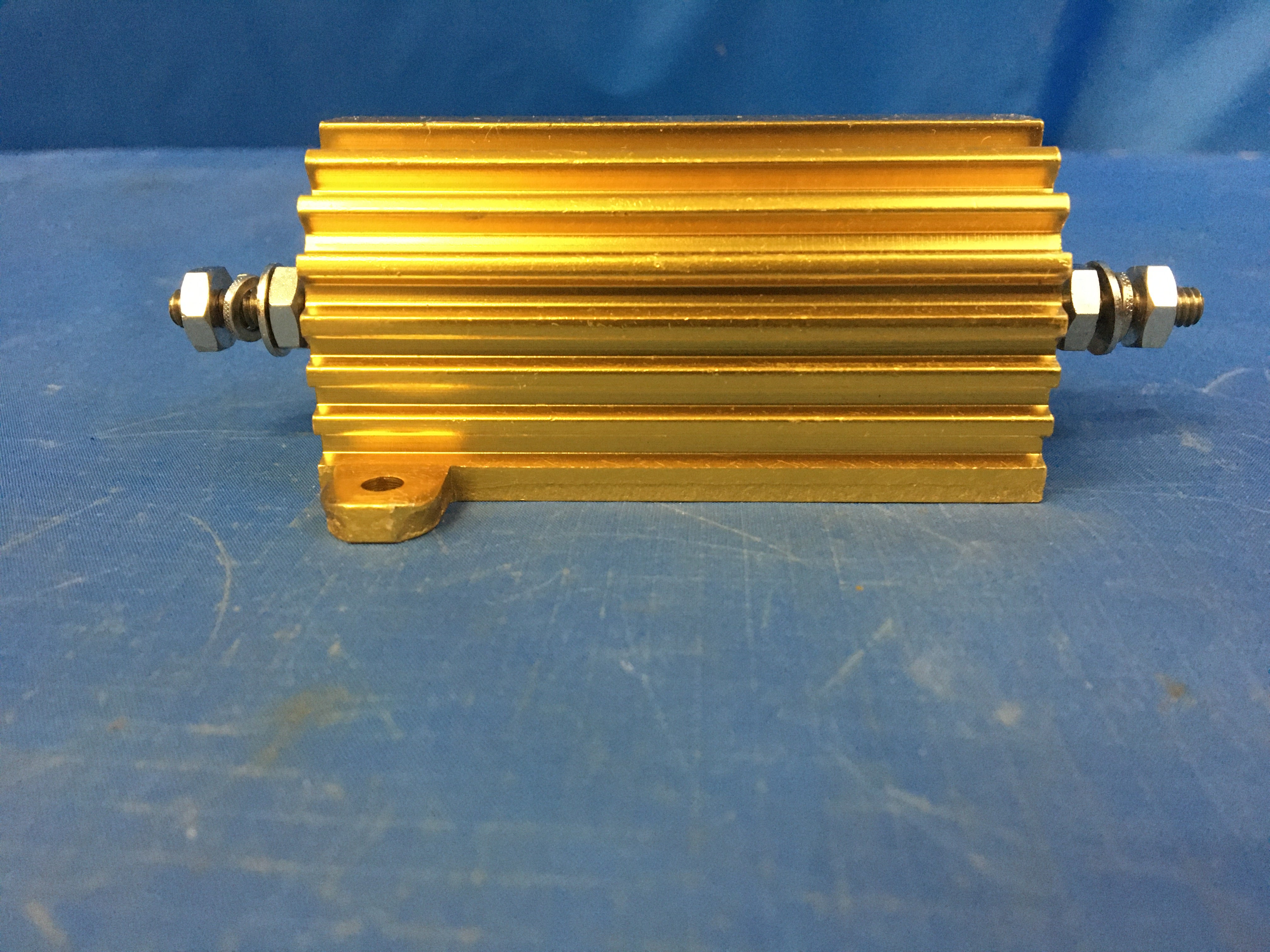

Inductive Wire Wound Fixed Resistor
NSN:5905-00-106-3761 P/N:RH-100 Model:RE77G1000
Replacements:
- 5905-00-106-3761 replaces 5905-01-257-7431
- 5905-00-106-3761 replaces 5905-01-266-1986
- 5905-00-106-3761 replaces 5905-01-271-1485
Schedule B & Trade:
- Schedule B: 8533390080 (NAICS 334416)
Wirewound variable resistors, nesoi
- SITC: 77233
Wirewound electrical variable resistors (including rheostats and potentiometers)
- End Use: 20005
Electric apparatus
NSN Properties and Flags
NATO Stock Number
5905-00-106-3761
DEMIL
Yes - ITAR Controlled
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
-50.0/+50.0
Electrical Resistance
100.000 ohms
Resistance Tolerance In Percent
-1.000 to 1.000
Heat Sink Material
Aluminum alloy
Heat Sink Length
9.000 inches
Heat Sink Width
7.000 inches
Heat Sink Height
2.000 inches
Heat Sink Thickness
0.060 inches
Ambient Tempurature In Deg Celsius At Full Rated Power
25.0
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
275.0
Tempurature Range Of Tempurature Coefficient In Deg Celsius
-55.0/+275.0
Inclosure Method
Encased
Terminal Type
Threaded stud
Reliability Indicator
Not established
Terminal Length
0.989 inches
Body Length
3.500 inches
Body Width
1.812 inches
Body Height
1.750 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length
2.750 inches
Power Dissipation Rating In Watts
30.000 free air
Mounting Hole Size
0.188 inches
Style Designator
Axial terminal (s)
Test Data Document
81349-milr18546 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
