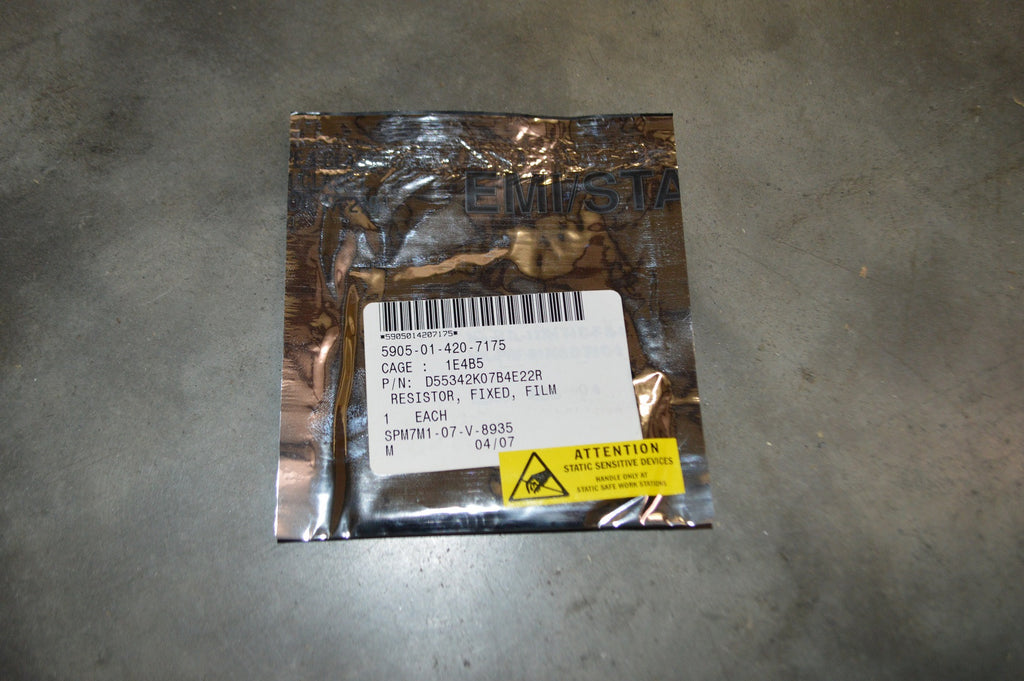

Fixed Resistor NSN:5905-01-420-7175 P/N:D55342K07B4E22R

Please fill out the form below for a price quote and availability on this item.

Fixed Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. see also attenuator, fixed and resistor, fixed, composition. excludes carbon composition type resistors.

Electrical Resistance: 4.220 kilohms
Ambient Temp In Deg Celsius At Full Rated Power: 70.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power: 150.0
Body Height: 0.015 inches minimum and 0.033 inches maximum
Body Length: 0.118 inches minimum and 0.134 inches maximum
Body Width: 0.058 inches minimum and 0.068 inches maximum
Inclosure Method: Uninclosed
Reliability Failure Rate Level In Percent: 0.010
Reliability Indicator: Established
Resistance Tolerance In Percent: -1.000/+1.000
Power Dissipation Rating In Watts: 0.250 free air
Style Designator: Termination pad each end
Terminal Type: Terminal type per body style

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
