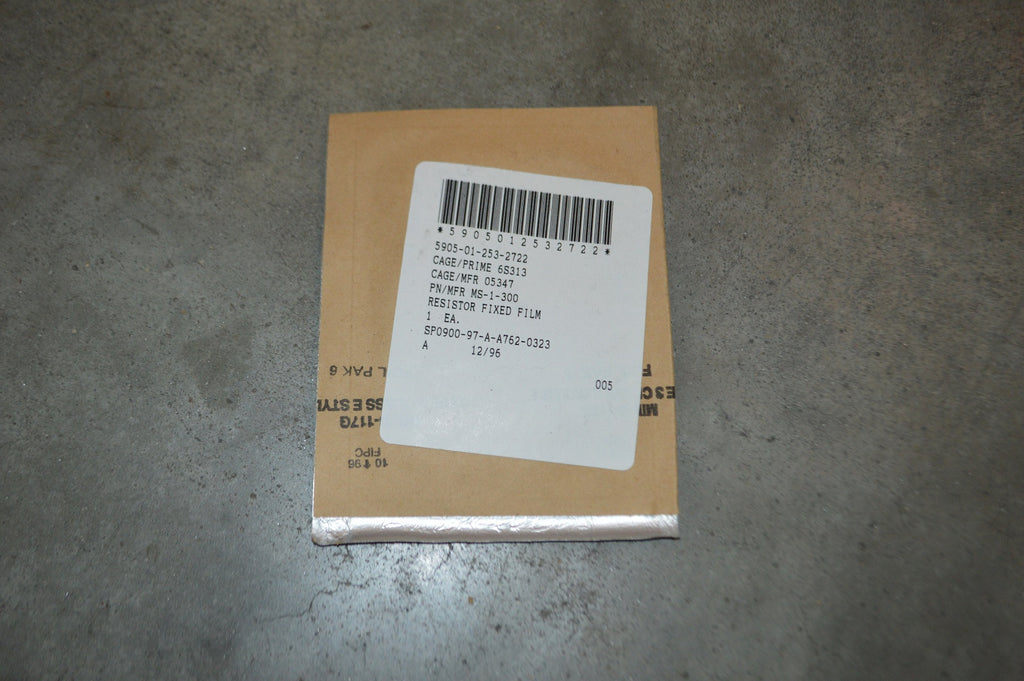

Fixed Resistor NSN:5905-01-253-2722 P/N:J350P300A
Please fill out the form below for a price quote and availability on this item.
Fixed Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. see also attenuator, fixed and resistor, fixed, composition. excludes carbon composition type resistors.
|Electrical Resistance:||300.000 ohms|
|Ambient Temp In Deg Celsius At Full Rated Power:||125.0|
|Ambient Temp In Deg Celsius At Zero Percent Rated Power:||145.0|
|Body Diameter:||0.063 inches minimum and 0.093 inches maximum|
|Body Length:||0.235 inches minimum and 0.265 inches maximum|
|Reliability Indicator:||Not established|
|Resistance Tolerance In Percent:||-1.000/+1.000|
|Power Dissipation Rating In Watts:||0.500 free air|
|Style Designator:||Axial terminal each end|
|Temp Range Of Temp Coefficient In Deg Celsius:||-65.0/+145.0|
|Temp Coefficient Of Resistance In Ppm Per Deg Celsius:||-30.0/+30.0|
|Terminal Length:||1.375 inches minimum and 1.625 inches maximum|
|Terminal Type:||Wire lead|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
