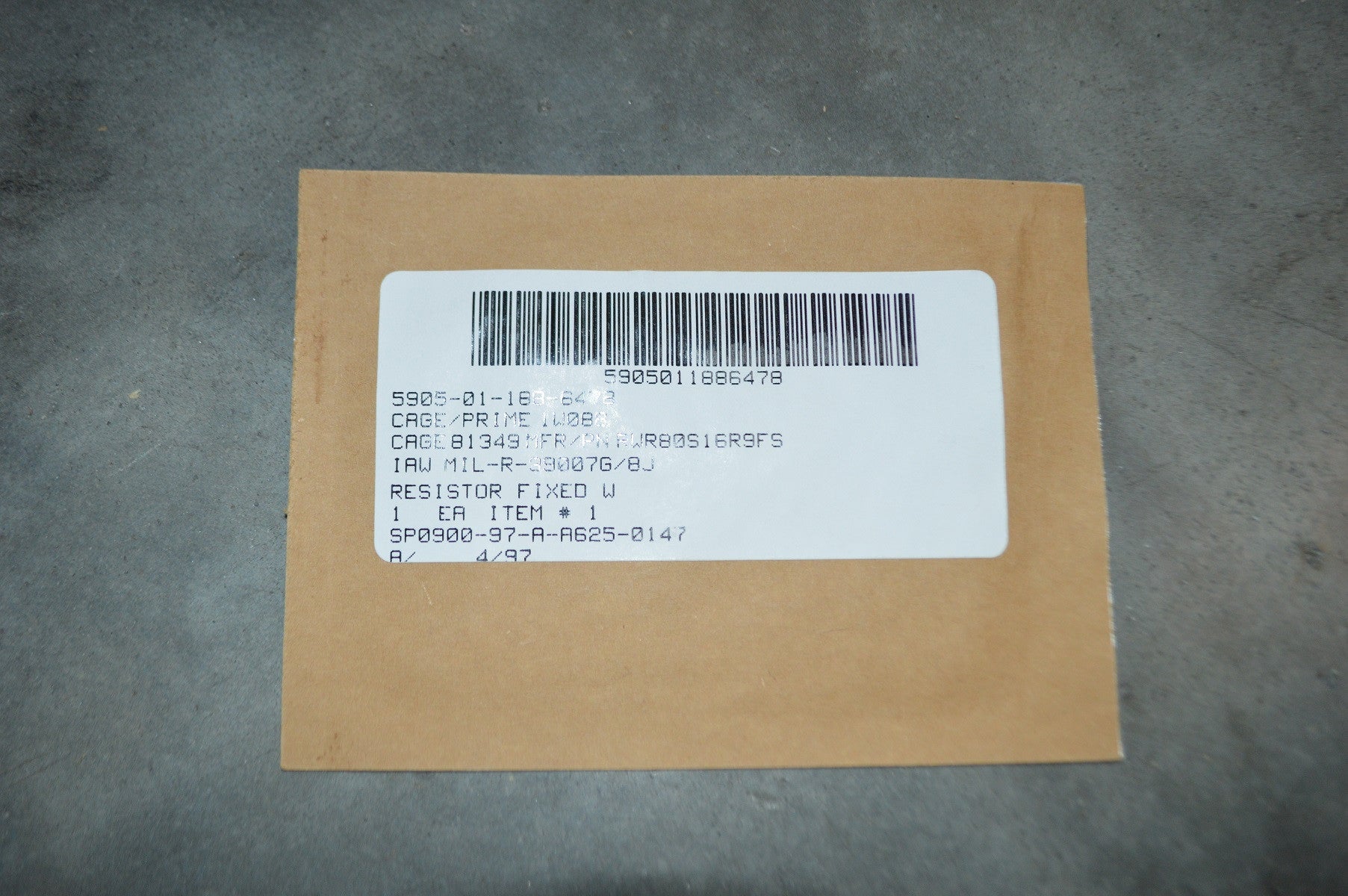

Fixed Resistor NSN:5905-01-188-6478 P/N:RWR80s16R9fs

Please fill out the form below for a price quote and availability on this item.

Fixed Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. excludes suppressor, ignition interference.

Electrical Resistance: 16.900 ohms
Ambient Temp In Deg Celsius At Full Rated Power: 25.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power: 275.0
Body Diameter: 0.094 inches nominal
Body Length: 0.406 inches nominal
Cubic Measure: 0.003 cubic inches
Inclosure Method: Encapsulated
Reactance Characteristic: Inductive
Reliability Failure Rate Level In Percent: 0.001
Reliability Indicator: Established
Resistance Tolerance In Percent: -1.000/+1.000
Power Dissipation Rating In Watts: 2.000 free air
Specification/standard Data: 81349-mil-r-39007/8 government specification
Style Designator: Axial terminal each end
Temp Range Of Temp Coefficient In Deg Celsius: -55.0/+275.0
Temp Coefficient Of Resistance In Ppm Per Deg Celsius: -20.0/+20.0
Terminal Length: 1.500 inches minimum
Terminal Type: Wire lead
Test Data Document: 81349-mil-r-39007 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Unpackaged Unit Weight: 1.000 grams

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
