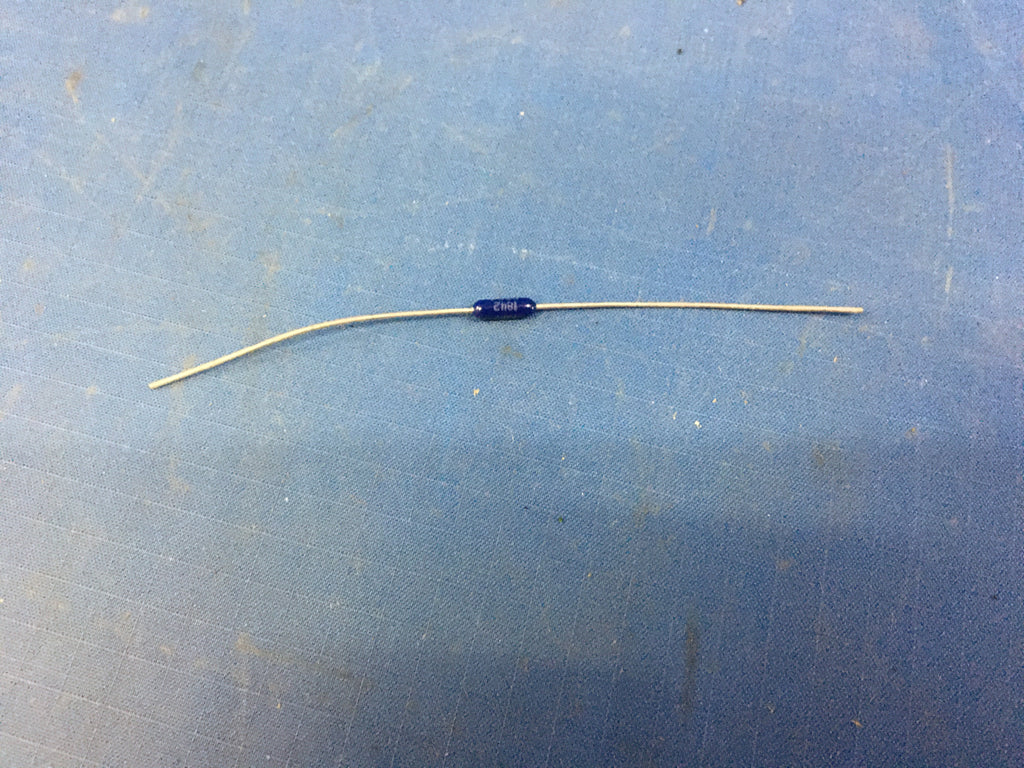

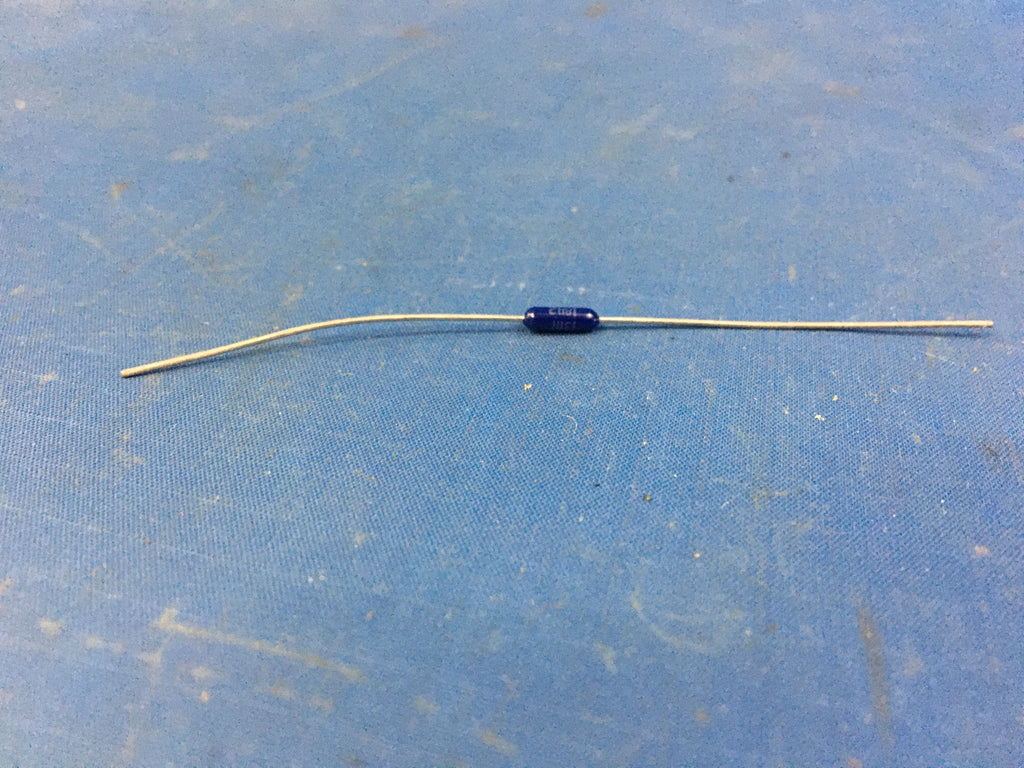

Film Fixed Resistor

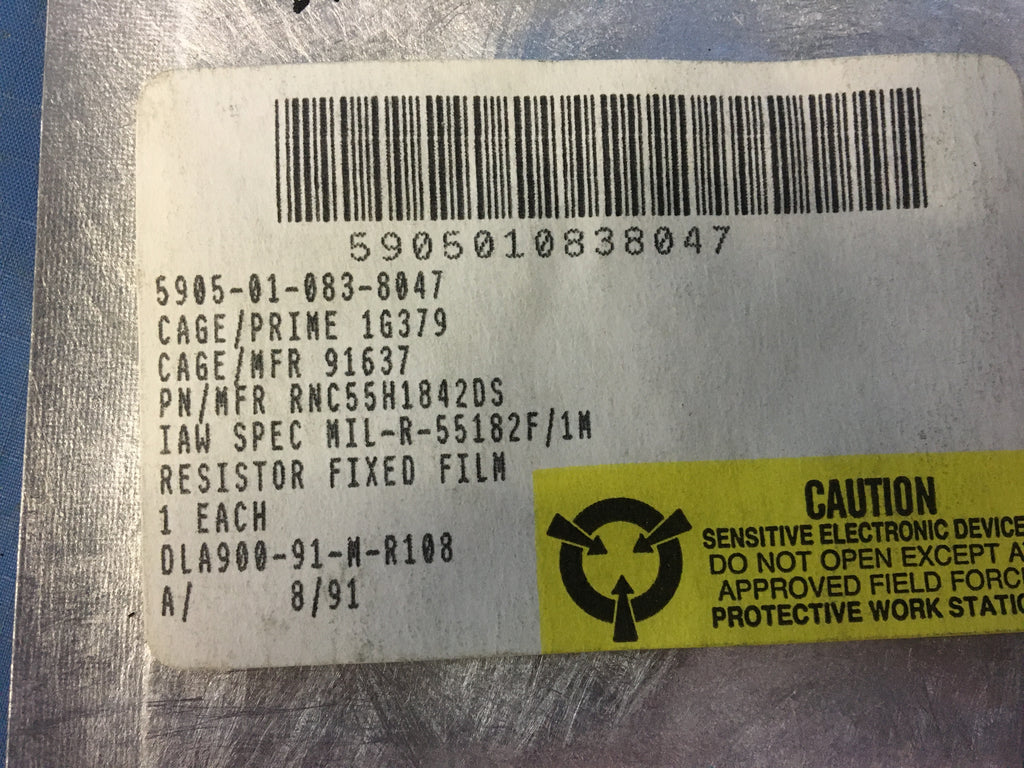

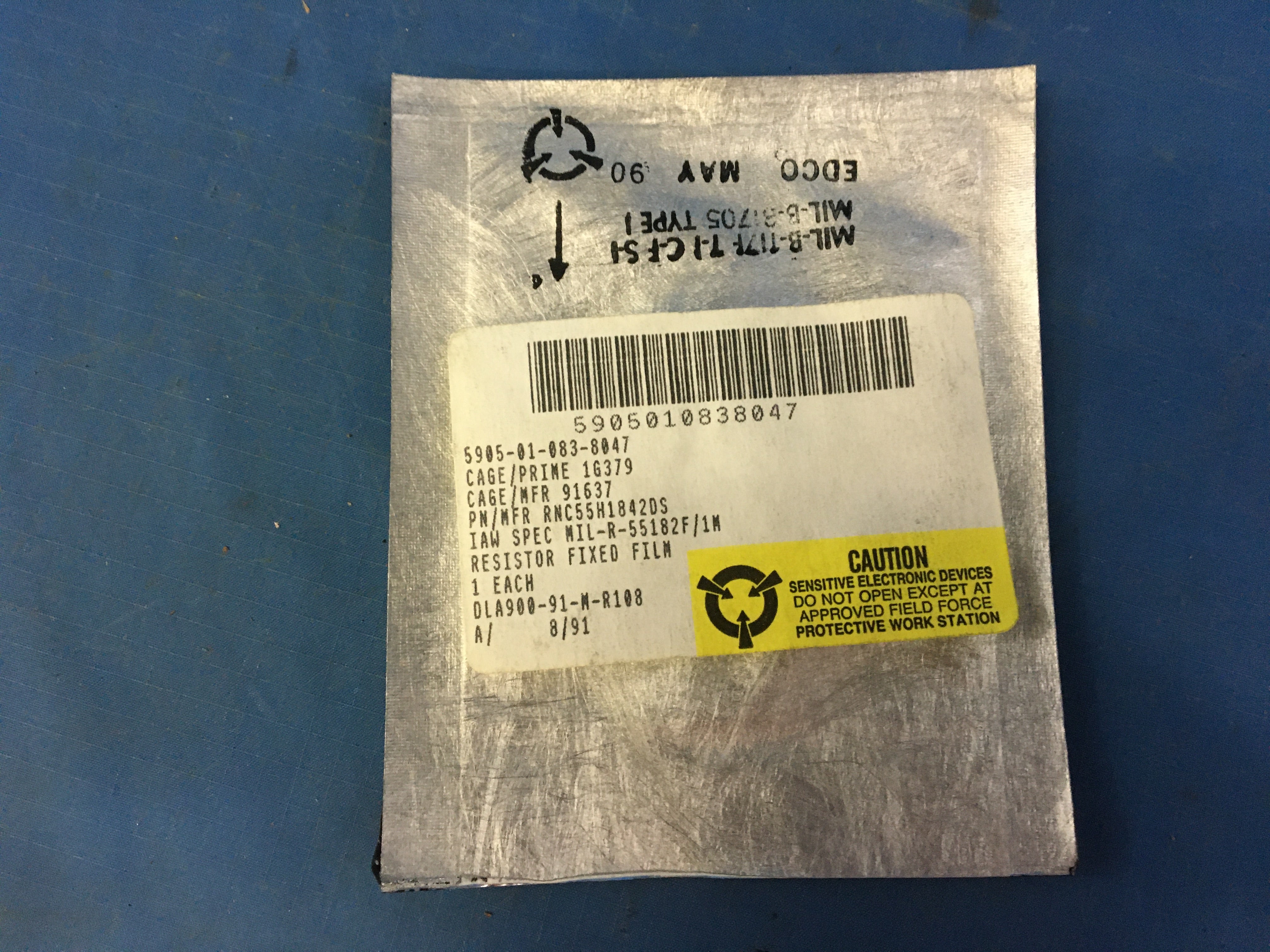

NSN: 5905-01-083-8047 | Model: RNC55H1842DS
ITAR Registered seal

A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also attenuator, fixed and resistor, fixed, composition. Excludes carbon composition type resistors.

NSN Properties and Flags
NATO Stock Number
5905-01-083-8047
DEMIL
Yes - ITAR Controlled
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
-50.0/+50.0
Electrical Resistance
18.400 kilohms
Resistance Tolerance In Percent
-0.500/+0.500
Ambient Tempurature In Deg Celsius At Full Rated Power
125.0
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
175.0
Tempurature Range Of Tempurature Coefficient In Deg Celsius
-55.0/+175.0
Inclosure Method
Encapsulated
Terminal Type
Wire lead
Reliability Indicator
Established
Reliability Failure Rate Level In Percent
0.001
Terminal Length
1.500 inches
Body Diameter
0.109 inches
Body Length
0.250 inches
Power Dissipation Rating In Watts
0.100 free air
Style Designator
Axial terminal each end
Test Data Document
81349-mil-r-55182 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-mil-r-55182/1 government specification



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
