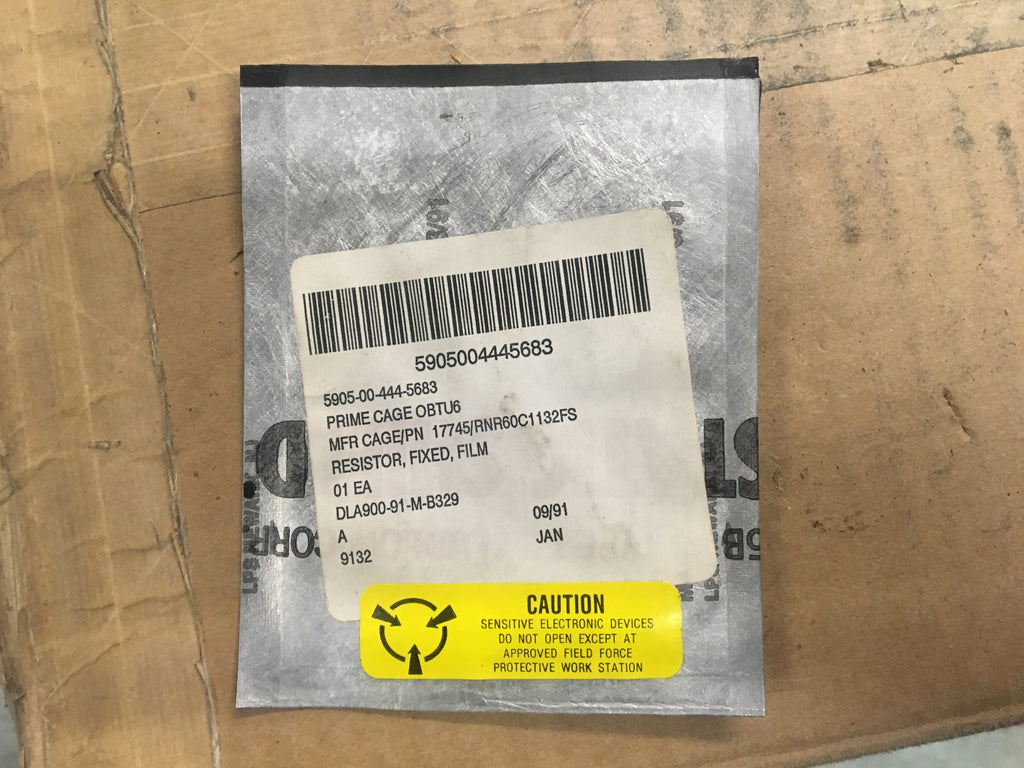

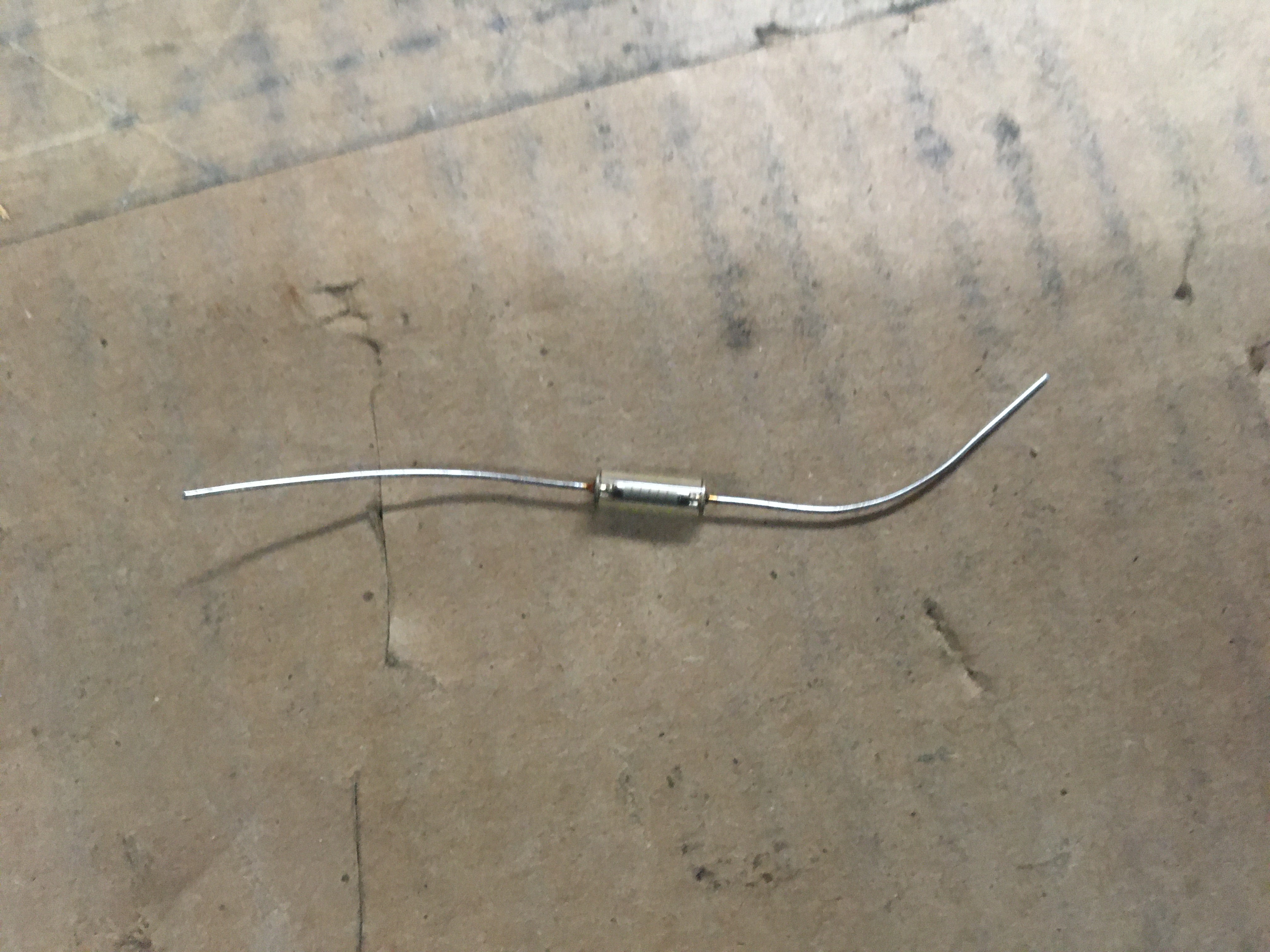

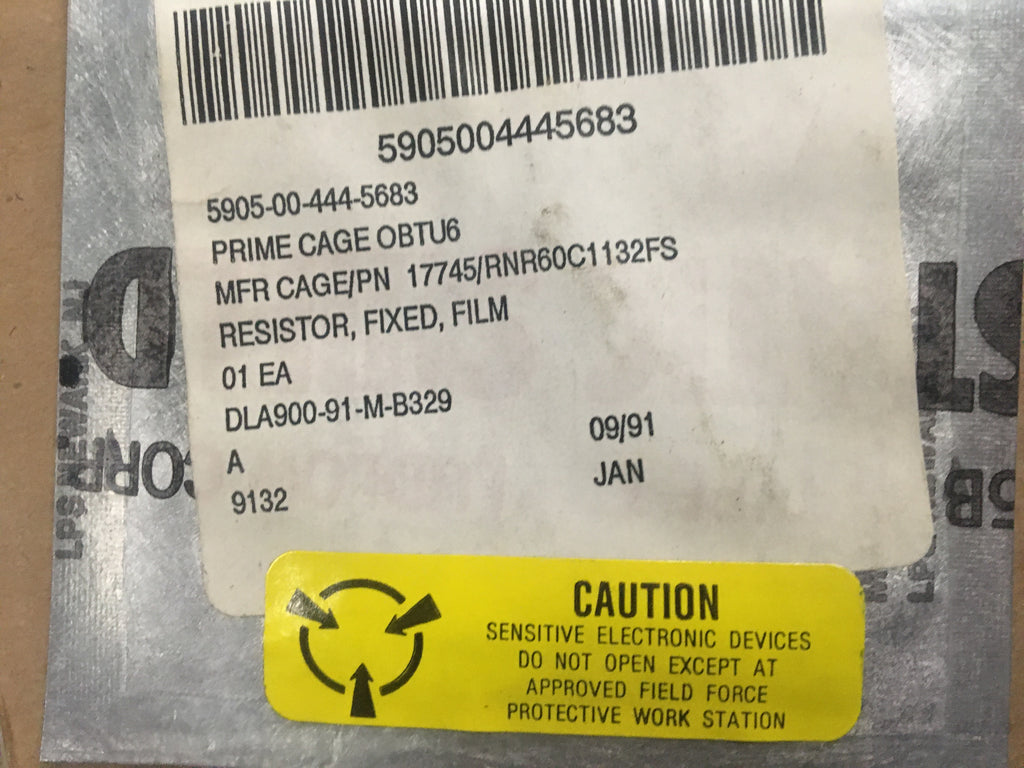

Fixed Resistor Model: RNR60C1132FR NSN: 5905-00-444-5683

Please fill out the form below for a price quote and availability on this item.

Fixed Resistor Model: RNR60C1132FR NSN: 5905-00-444-5683

Electrical Resistance: 11.300 kilohms
Ambient Temp In Deg Celsius At Full Rated Power: 125.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power: 175.0
Body Diameter: 0.125 inches nominal
Body Length: 0.375 inches nominal
Inclosure Method: Hermetically sealed
Reliability Failure Rate Level In Percent: 0.001
Reliability Indicator: Established
Resistance Tolerance In Percent: -1.000/+1.000
Power Dissipation Rating In Watts: 0.125 free air
Style Designator: Axial terminal each end
Temp Range Of Temp Coefficient In Deg Celsius: -55.0/+175.0
Temp Coefficient Of Resistance In Ppm Per Deg Celsius: -50.0/+50.0
Terminal Type: Wire lead
Test Data Document: 81349-milr55182 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
