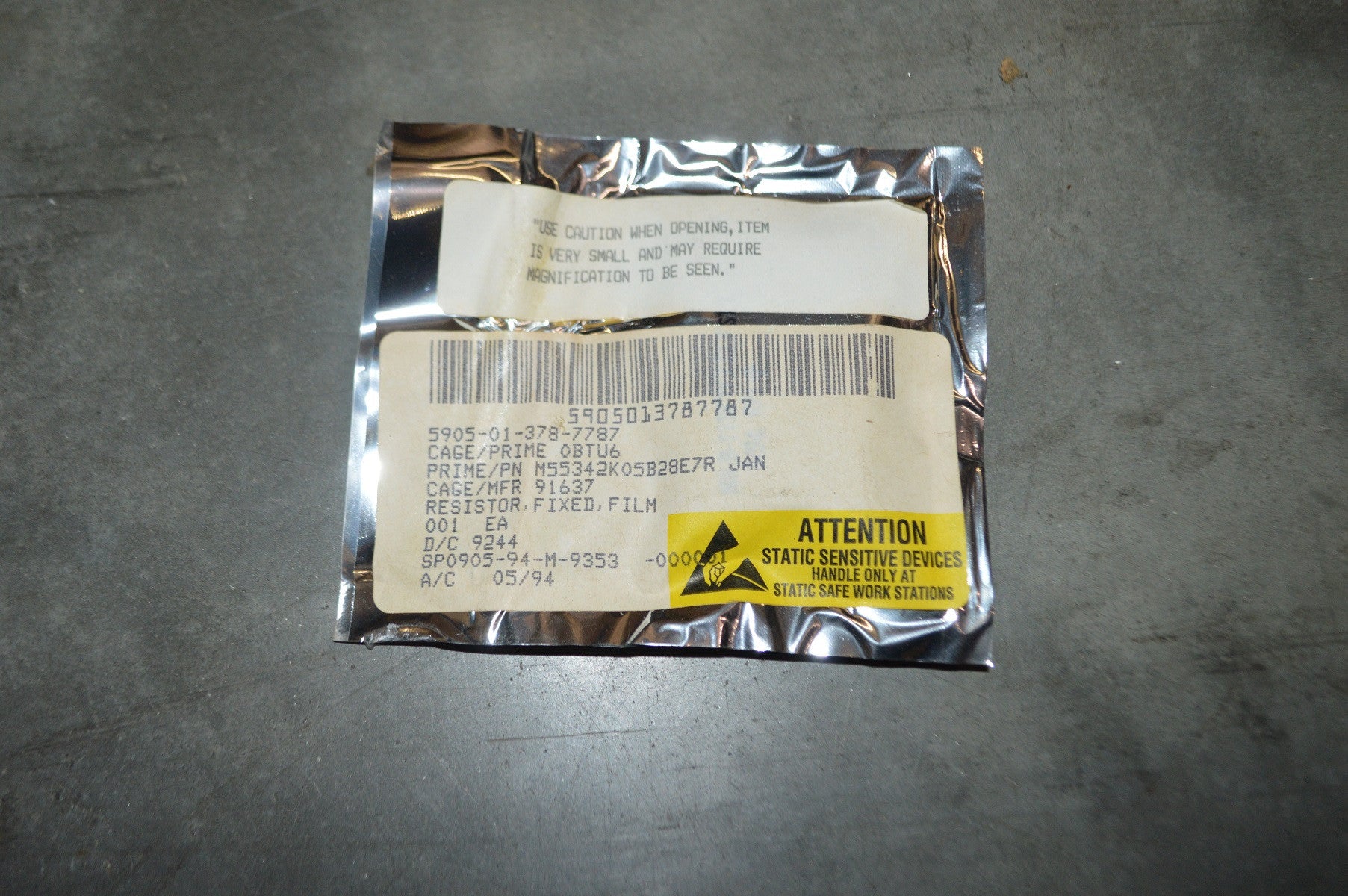

Fixed Film Resistor NSN:5905-01-378-7787 P/N:M55342K05B28E7R

Please fill out the form below for a price quote and availability on this item.

Fixed Film Resistor-  A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. see also attenuator, fixed and resistor, fixed, composition. excludes carbon composition type resistors.

Electrical Resistance: 28.700 kilohms
Ambient Temp In Deg Celsius At Full Rated Power: 70.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power: 150.0
Body Height: 0.010 inches minimum and 0.040 inches maximum
Body Length: 0.070 inches minimum and 0.085 inches maximum
Body Width: 0.220 inches minimum and 0.250 inches maximum
Inclosure Method: Uninclosed
Reliability Failure Rate Level In Percent: 0.010
Reliability Indicator: Established
Resistance Tolerance In Percent: -1.000/+1.000
Power Dissipation Rating In Watts: 0.225 free air
Specification/standard Data: 81349-mil-r-55342/5 government specification
Style Designator: Termination pad each end
Temp Range Of Temp Coefficient In Deg Celsius: -55.0/+125.0
Temp Coefficient Of Resistance In Ppm Per Deg Celsius: -100.0/+100.0
Terminal Type: Terminal type per body style
Test Data Document: 81349-mil-r-55342 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.)

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
