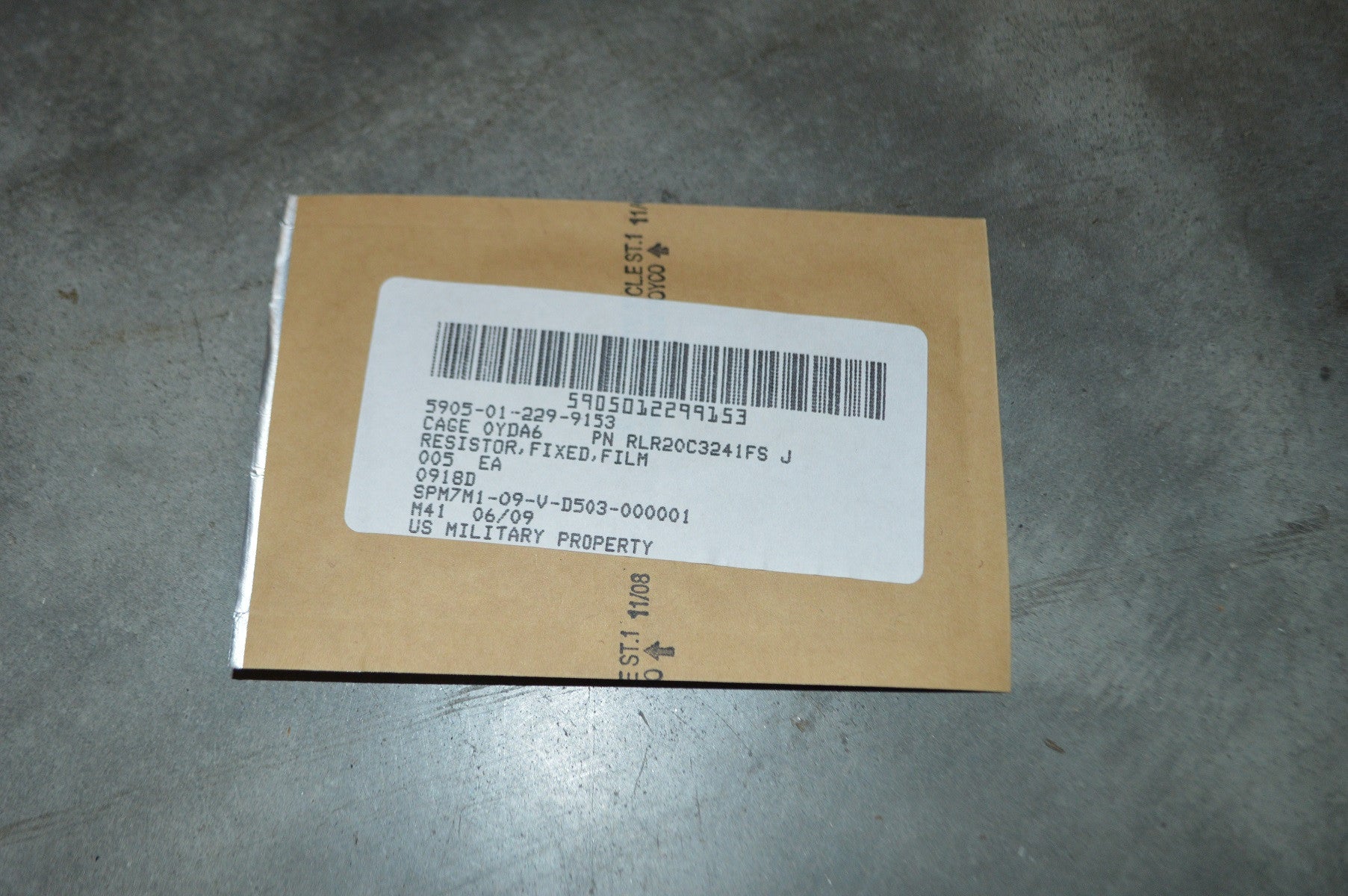

Fixed Film Resistor NSN:5905-01-229-9153 P/N:RLR20c3241Fs

Please fill out the form below for a price quote and availability on this item.

Fixed Film Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. see also attenuator, fixed and resistor, fixed, composition. excludes carbon composition type resistors.

Electrical Resistance: 3.240 kilohms
Ambient Temp In Deg Celsius At Full Rated Power: 70.0
Ambient Temp In Deg Celsius At Zero Percent Rated Power: 150.0
Body Diameter: 0.138 inches nominal
Body Length: 0.375 inches nominal
Inclosure Method: Encapsulated
Reliability Failure Rate Level In Percent: 0.001
Reliability Indicator: Established
Resistance Tolerance In Percent: -1.000 to 1.000
Power Dissipation Rating In Watts: 0.500 free air
Specification/standard Data: 81349-mil-r-39017/2 government specification
Style Designator: Axial terminal each end
Temp Range Of Temp Coefficient In Deg Celsius: -55.0 to 150.0
Temp Coefficient Of Resistance In Ppm Per Deg Celsius: -100.0 to 100.0
Terminal Length: 1.500 inches nominal
Terminal Type: Wire lead
Test Data Document: 81349-mil-r-39017 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Unpackaged Unit Weight: 0.700 grams

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
