Fixed Metallized Paper Capacitor,30 UF 10%,120 VAC 200 VDC, NSN: 5910-00-204-788,Model: 145148-1
Please fill out the form below for a price quote and availability on this item.

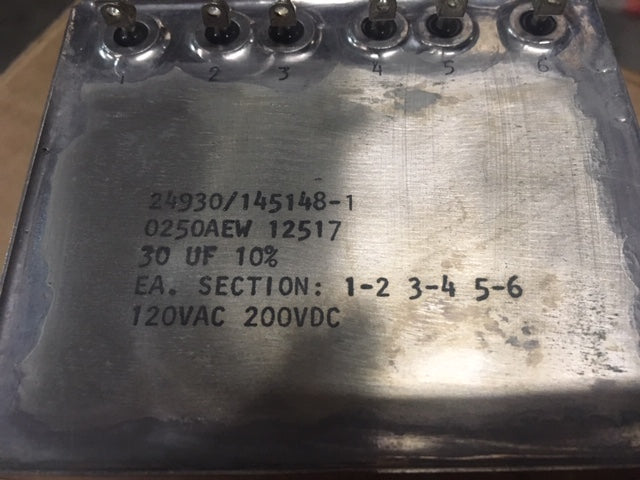

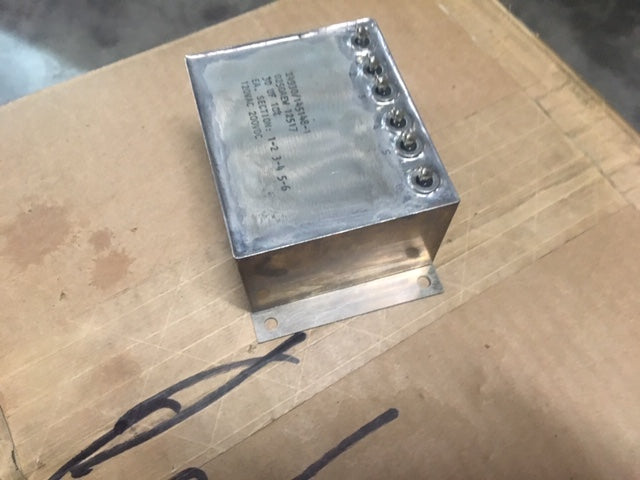

Fixed Metallized Paper Capacitor
SKU: 5910002047888 | Model: 145148-1
NSN 5910-00-204-7888
Specifications from the Manufacturer
Body Style:
W/mtg tabs/flanges, terminal(s) on one surface
Reliability Indicator:
Not established
Terminal Length:
0.500 inches maximum
Body Length:
3.500 inches nominal
Body Width:
2.000 inches maximum
Body Height:
3.000 inches nominal
Unthreaded Mounting Hole Diameter:
0.203 inches nominal
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length:
4.000 inches nominal
Schematic Diagram Designator:
No common or grounded electrode(s)
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width:
2.500 inches nominal
Mounting Facility Type And Quantity:
4 unthreaded mounting holes
Section Quantity:
3
Features Provided:
Hermetically sealed case
Capacitance Value Per Section:
30.000 microfarads all sections
Nonderated Operating Temp:
-55.0 deg celsius minimum and 125.0 deg celsius maximum
Nonderated Continuous Voltage Rating And Type Per Section:
120.0 ac-rms all sections and 200.0 dc all sections
Tolerance Range Per Section:
-10.00/+10.00 percent all sections
Case Material:
Metal
Dissipation Factor At Reference Temp In Percent:
0.150
Terminal Surface Treatment:
Solder
Terminal Type And Quantity:
6 threaded stud
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
