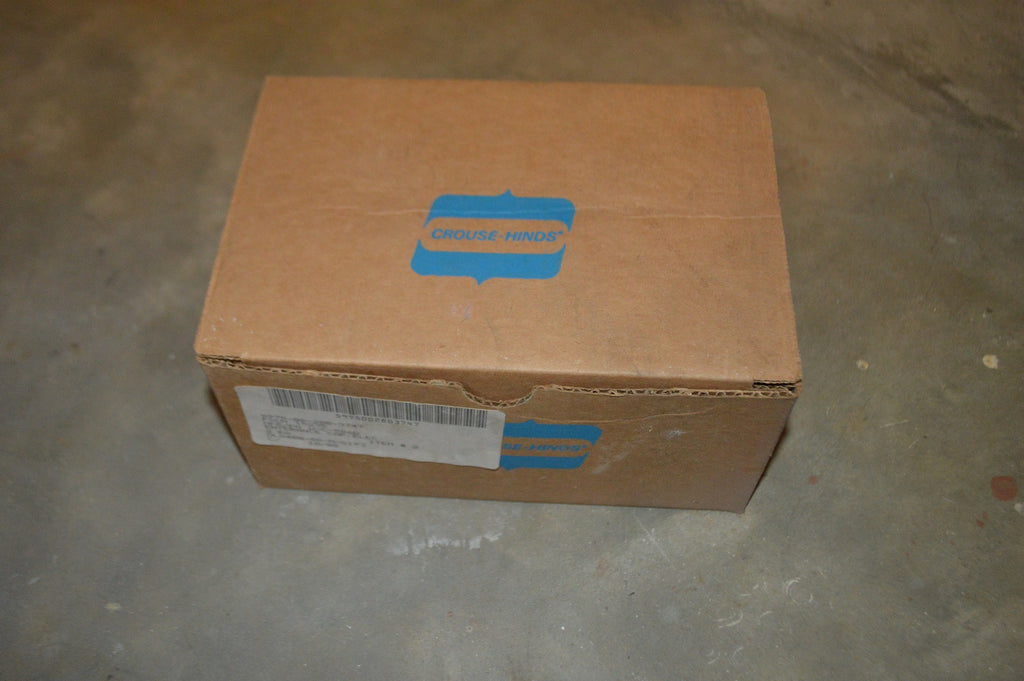

Lot of 2 Crouse Hinds Aluminum 2" Threaded Conduit Entrance Caps NSN:5975-00-280-3747 P/N:WC586

Please fill out the form below for a price quote and availability on this item.

Entrance Cap- An item primarily designed to provide for the entrance of electrical wires into a building, structure, or inclosure and to facilitate their connection to feeders or service conductors. it consists of an insulating block and a metallic housing designed to hold the insulating block and to fit an electrical conduit, conduit fitting, or cable of a specified size. this item is primarily intended for use in exposed, wet, or damp locations and is installed so as to preclude the entrance of rain or debris into the conduit. see also cap, electrical.

Accommodation Hole Inside Diameter: 2.375 inches nominal
Base Thread Location: Internal
Cable/conduit Type Accommodated: Standard thickwall conduit
Conductor Accommodation Quantity: 5
Conduit Trade Size Accommodated: 2.000
Departure From Cited Designator: As modified by material
Hazardous Locations/environmental Protection: Raintight-nema type 3r
Material: Iron body
Material: Plastic phenolic insulator
Mounting Method: Thread
Nominal Thread Size: 2.000 inches
Nondefinitive Spec/std Data: 27 design and 2 form and 2 size and vi type
Style Designator: Rigid conduit
Thread Series: Npt

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
