Leach International Y-D2A-002 4PDT 5A 28VDC Electromagnetic Relay NSN:5945-01-333-4239
Please fill out the form below for a price quote and availability on this item.

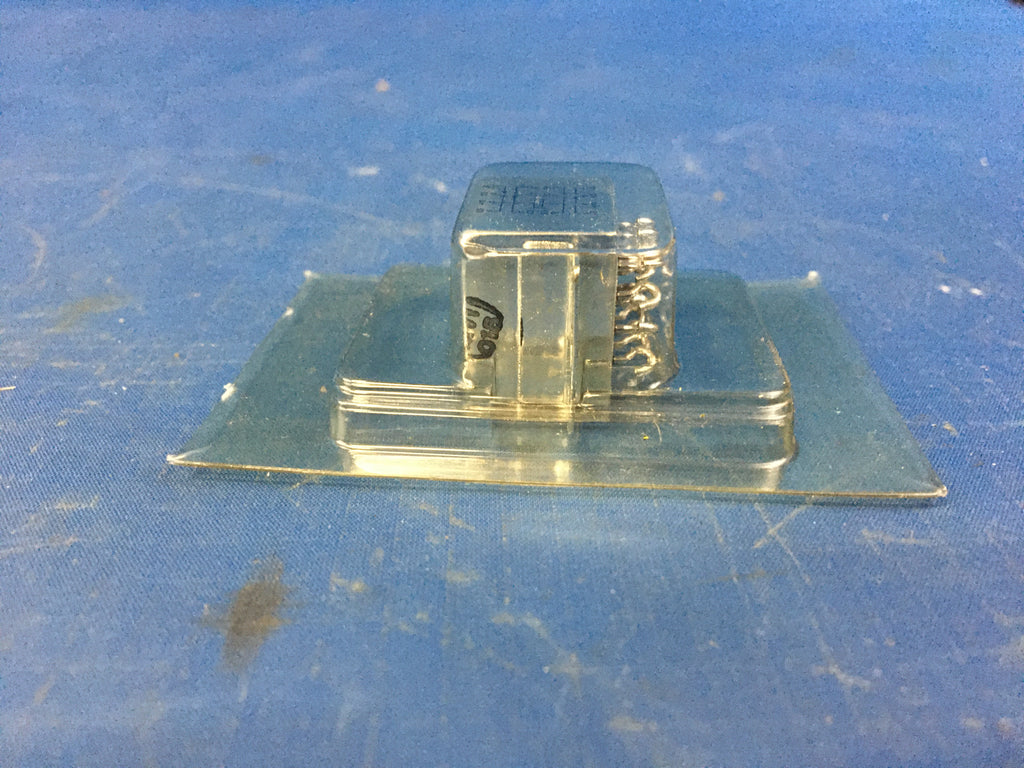

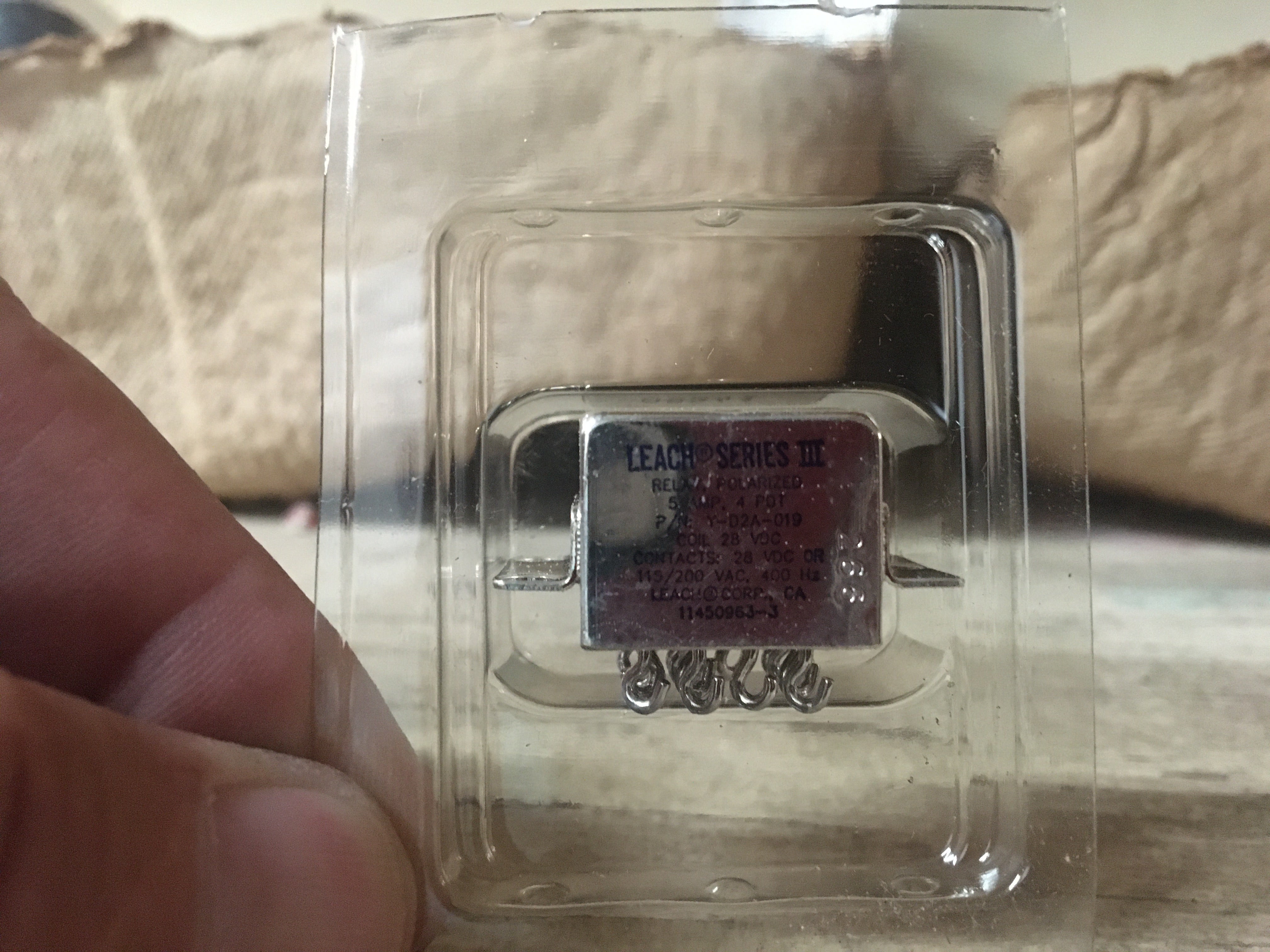

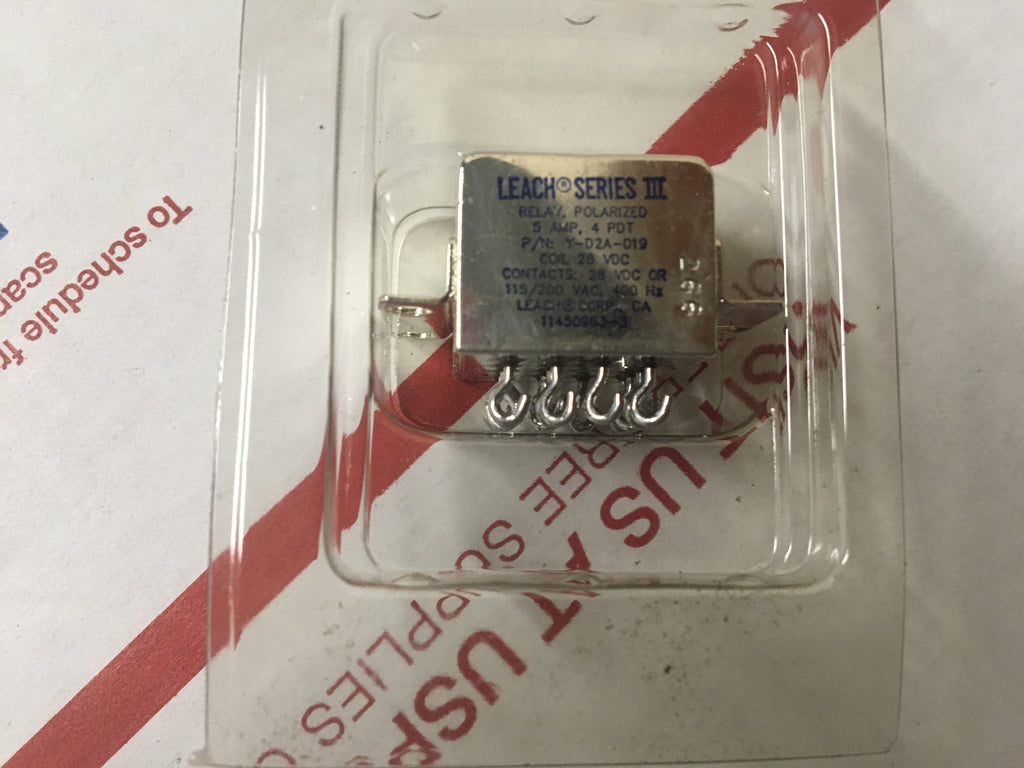

Electromagnetic Relay
NSN:5945-01-333-4239 P/N:Y-D2A-019 Model:11450963-3
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coi (s) . Includes solenoid and armature types. Excludes contactor, magnetic; relay, meter movement; relay, motor driven; relay, reed; relay, resonant reed; relay, rotary; and switch, stepping.
NSN Properties and Flags
NATO Stock Number
5945-01-333-4239
DEMIL
Yes - ITAR Controlled
Overall Length
0.810 inches
Center To Center Distance Between Mounting Facilities Parallel To Width
0.500 inches single mounting facility
Overall Height
0.640 inches
Overall Width
0.810 inches
Mounting Slot Width
0.141 inches single mounting facility
Environmental Protection
Dustproof
Fragility Factor
Moderately rugged
End Application
1440-01-087-9844 launching station, g
Winding Quantity
1
Purpose For Which Designed
General
Coil Quantity
1
Winding Dc Resistance Rating
360.0 ohms single winding and 440.0 ohms single winding
Duty Type
Continuous

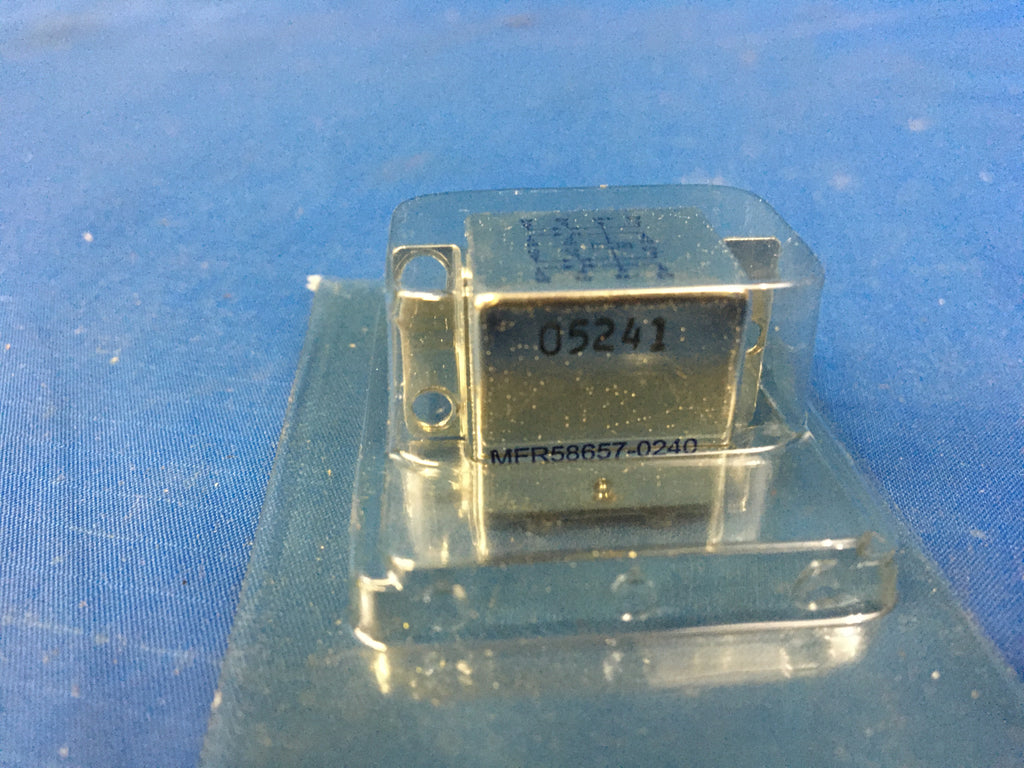

Mounting Facility Type And Quantity
3 slotted hole single mounting facility
Storage Type
General purpose warehouse
Cubic Measure
0.420 cubic inches
Mounting Facility Pattern
Triangle single mounting facility

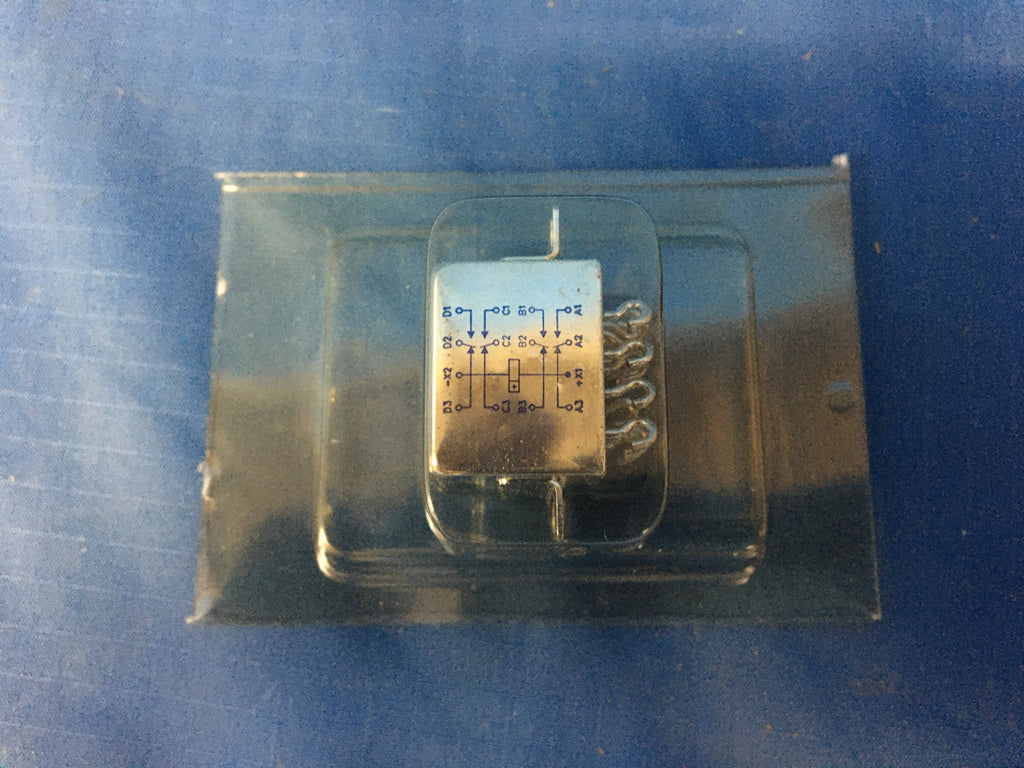

Nonpile-up Main Contact Arrangement
4 pole, double throw, one position momentary
Time Delay
0.006 seconds fixed operate and release time
Center To Center Distance Between Mounting Facilities Parallel To The Altitude Of An Isosceles Triangle
1.062 inches single mounting facility and 1.078 inches single mounting facility
Operating Voltage Rating And Type At Specificationified Temp
28.0 volts dc 25 degrees celsius single winding
Main Contact Load Current Rating At Maximum Rated Voltage
1.0 amperes ac lamp load and 1.0 amperes dc lamp load
Main Contact Maximum Voltage Rating In Volts
200.0 ac and 28.0 dc

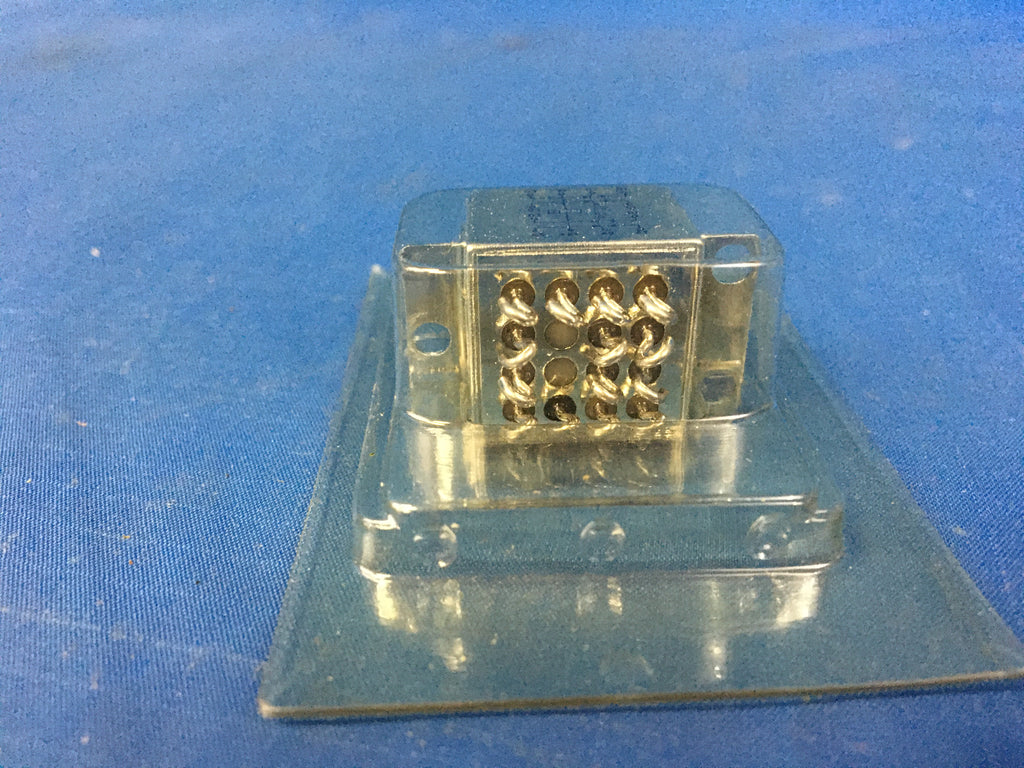

Terminal Type And Quantity
16 wire hook all functions
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
