Kleinschmidt Electromagnetic Relay NSN 5945-00-323-7321 Model:SC-D-729921

Please fill out the form below for a price quote and availability on this item.

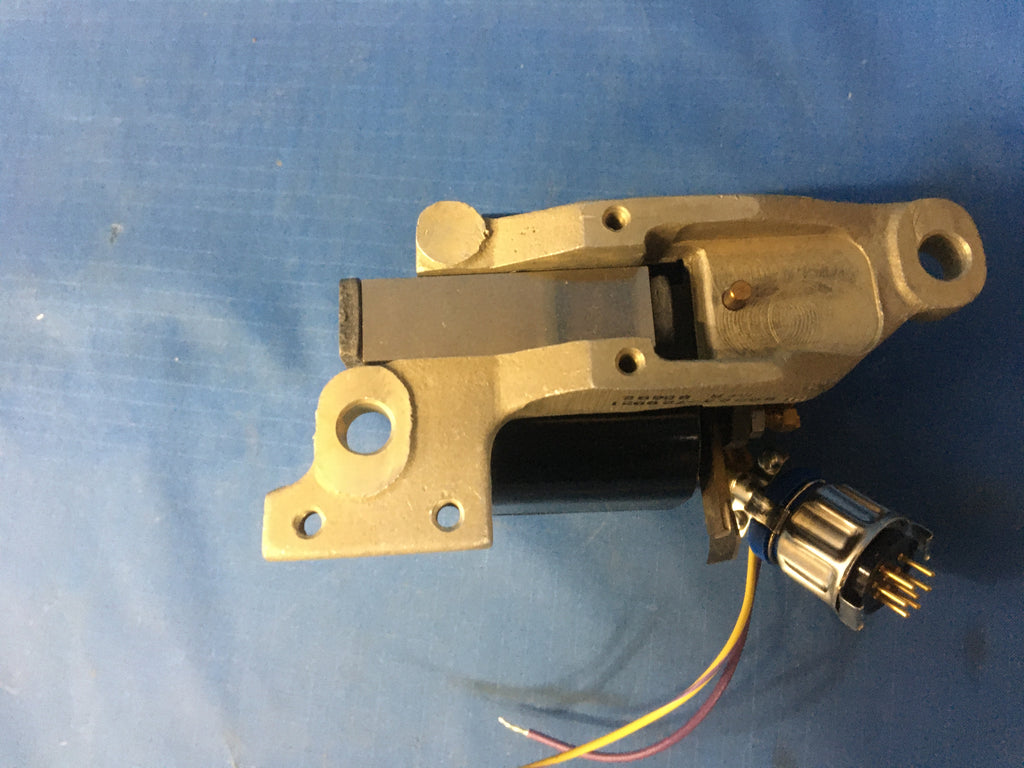

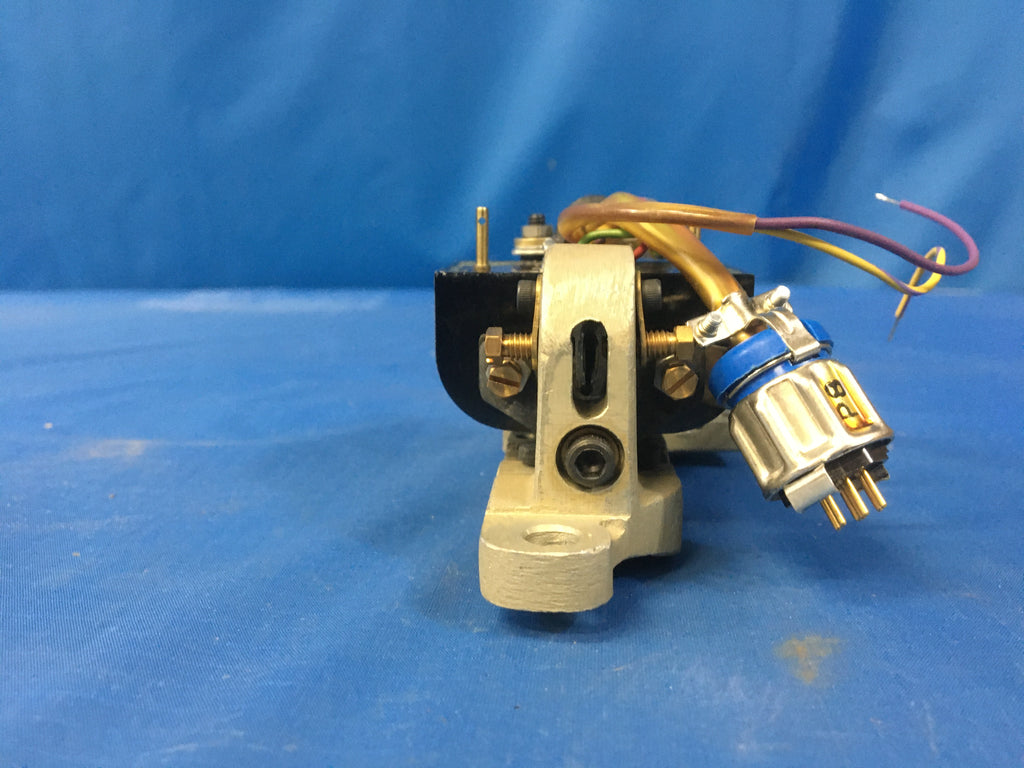

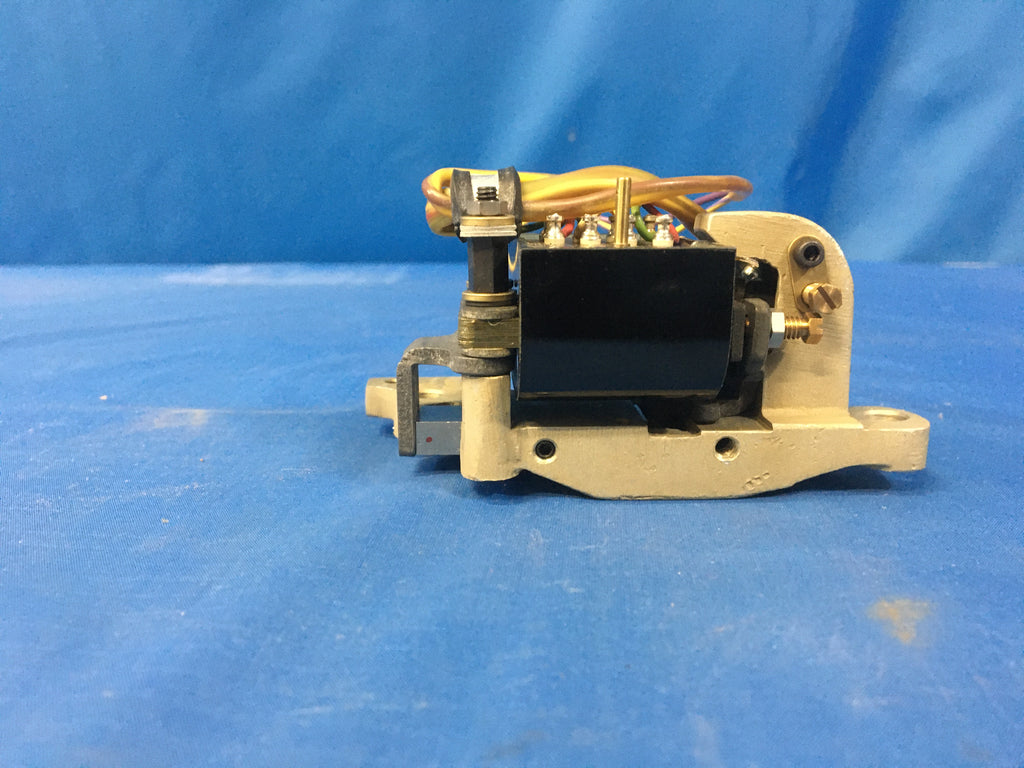

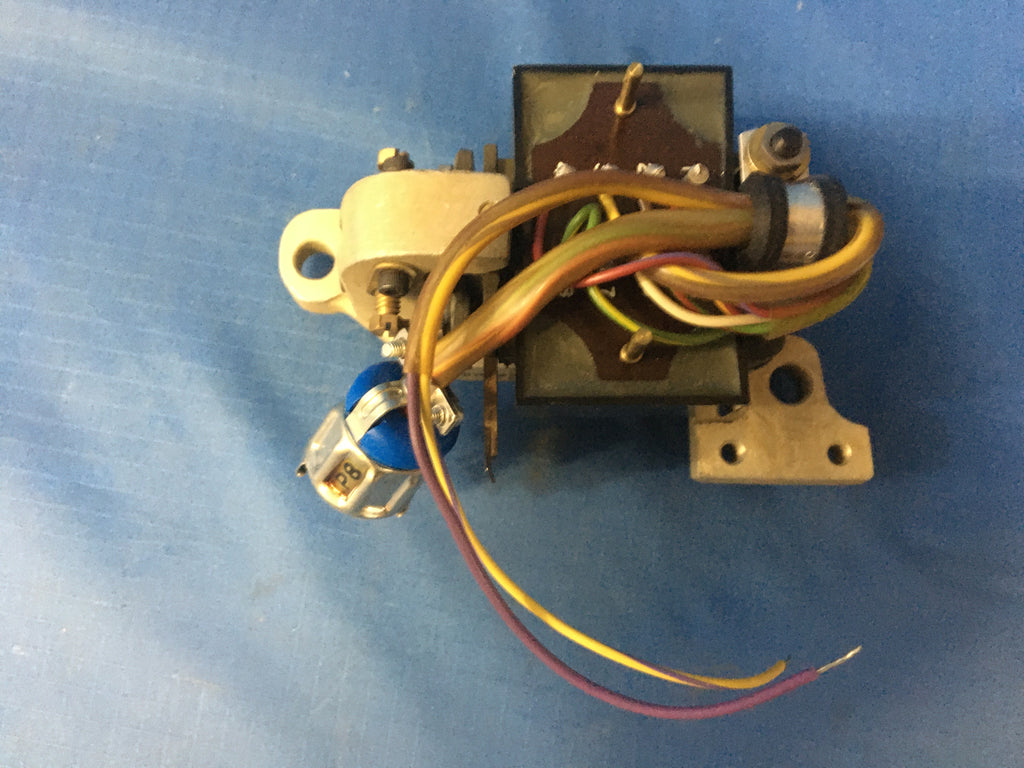

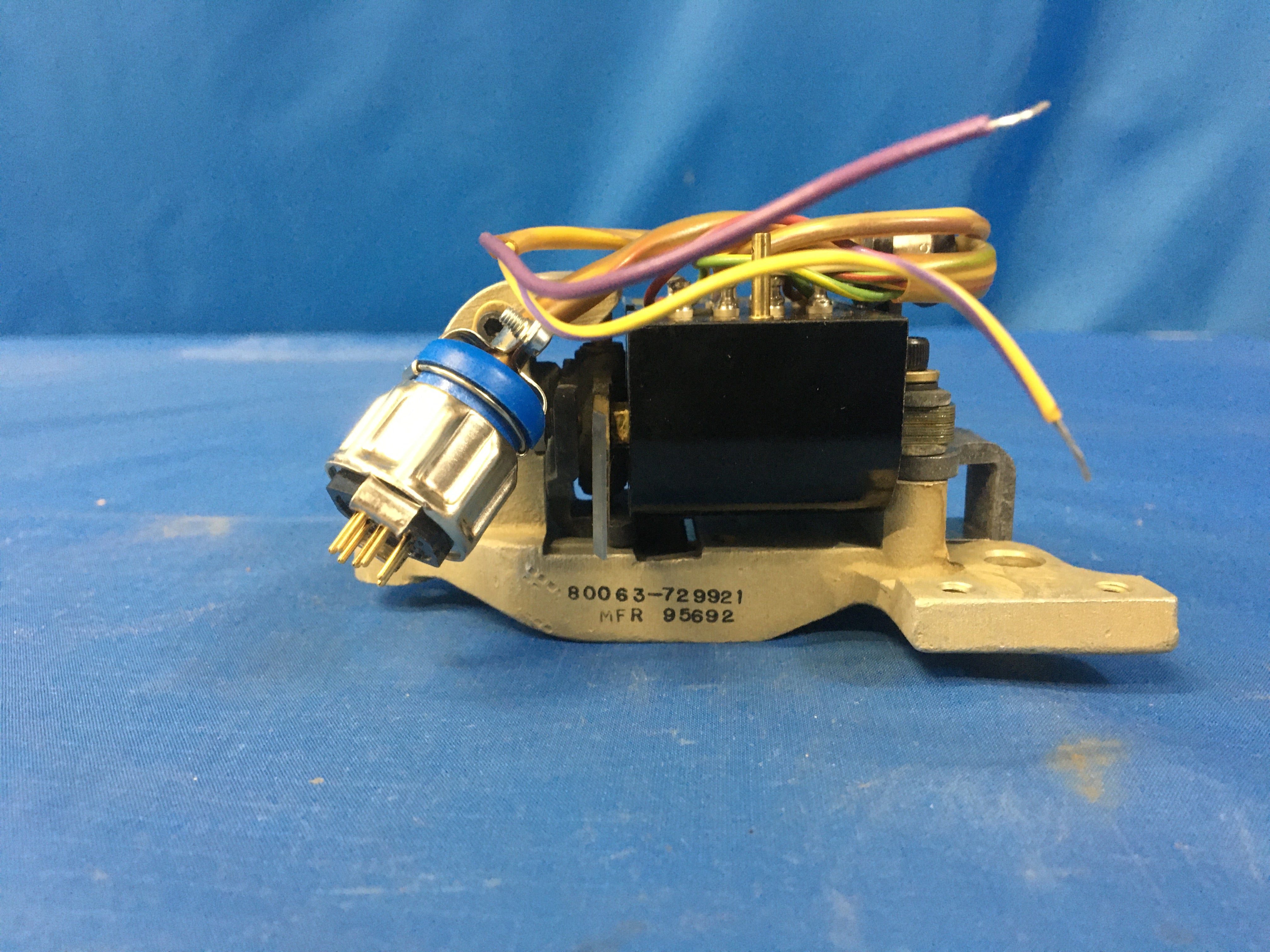

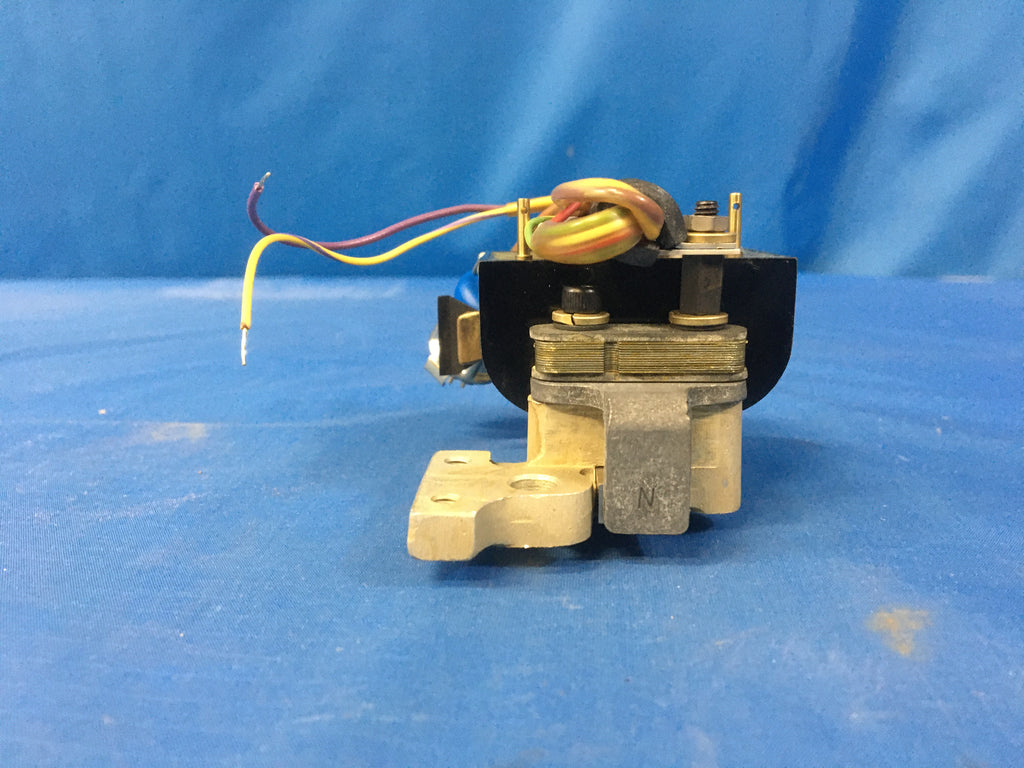

Electromagnetic Relay

NSN: 5945-00-323-7321   Model:SC-D-729921   P/N:SM-C-148843
ITAR Registered seal

A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coi (s) . Includes solenoid and armature types. Excludes contactor, magnetic; relay, meter movement; relay, motor driven; relay, reed; relay, resonant reed; relay, rotary; and switch, stepping.

NSN Properties and Flags
NATO Stock Number
5945-00-323-7321
DEMIL
Yes - ITAR Controlled
Overall Length
2.500 inches
Overall Height
4.281 inches
Overall Width
1.938 inches
Case Material
Metal
Fragility Factor
Moderately rugged
Winding Quantity
4
Purpose For Which Designed
General
Coil Quantity
1
Arc Quenching Method
Air
Storage Type
General purpose warehouse

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
