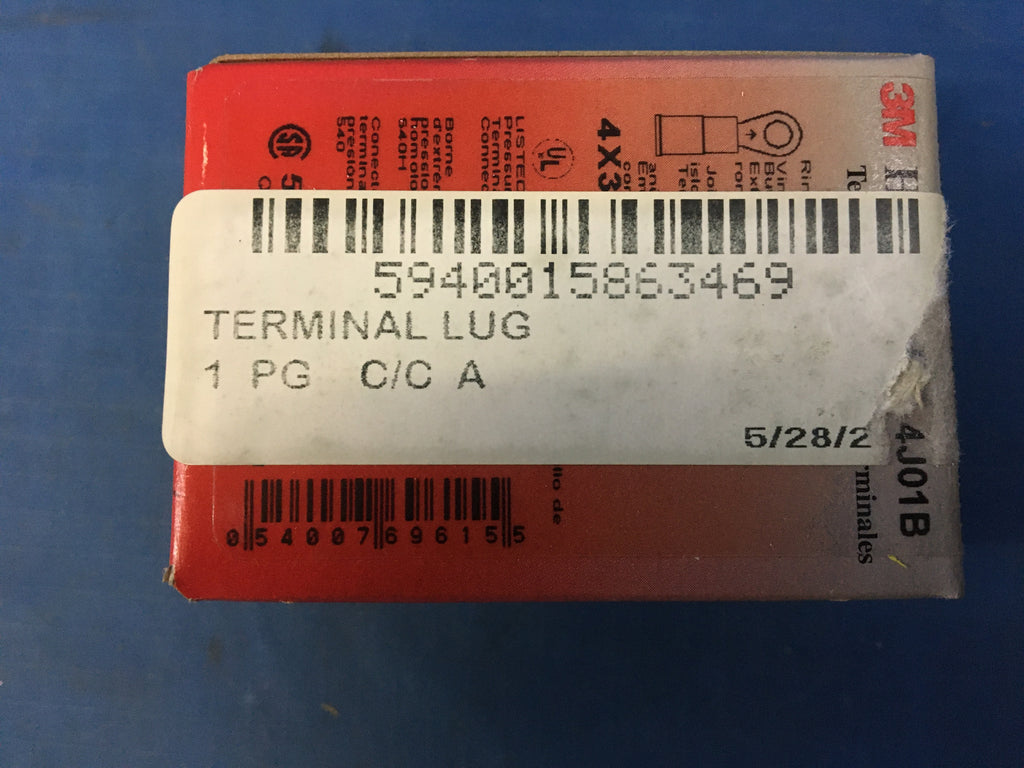

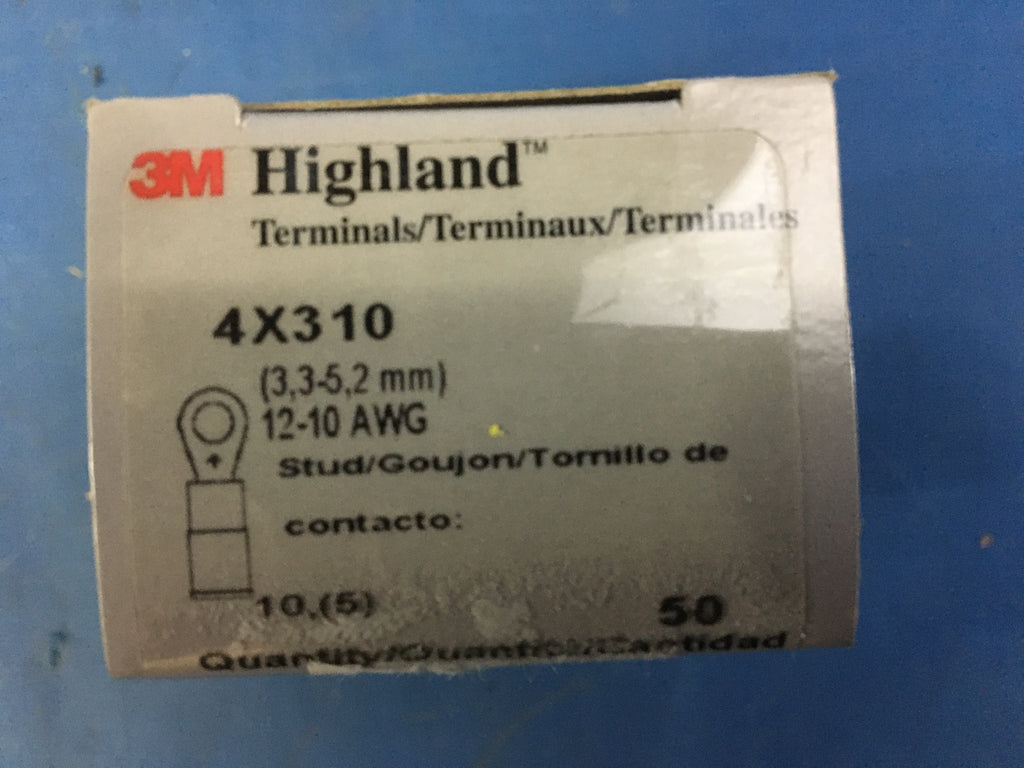

(50) 3M 4X310 Terminal Lug 3,3-5,2 mm 12-10AWG NSN:5940-01-586-3469

Please fill out the form below for a price quote and availability on this item.

Lug Terminal

NSN: 5940-01-586-3469 | Model: 4X310
ITAR Registered seal

A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. it has provisions for attachment of wir (s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. for post like terminals, see terminal stud. excludes clip, electrical; terminal, quick disconnect and terminal feedthru.

NSN Properties and Flags
NATO Stock Number
5940-01-586-3469
DEMIL
Yes - ITAR Controlled
Overall Length
0.250 inches
Overall Width
0.380 inches
Material Thickness
0.040 inches
End Application
General construction stock
Basic Shape Style
Solder/solderless
Part Name Assigned By Controlling Agency

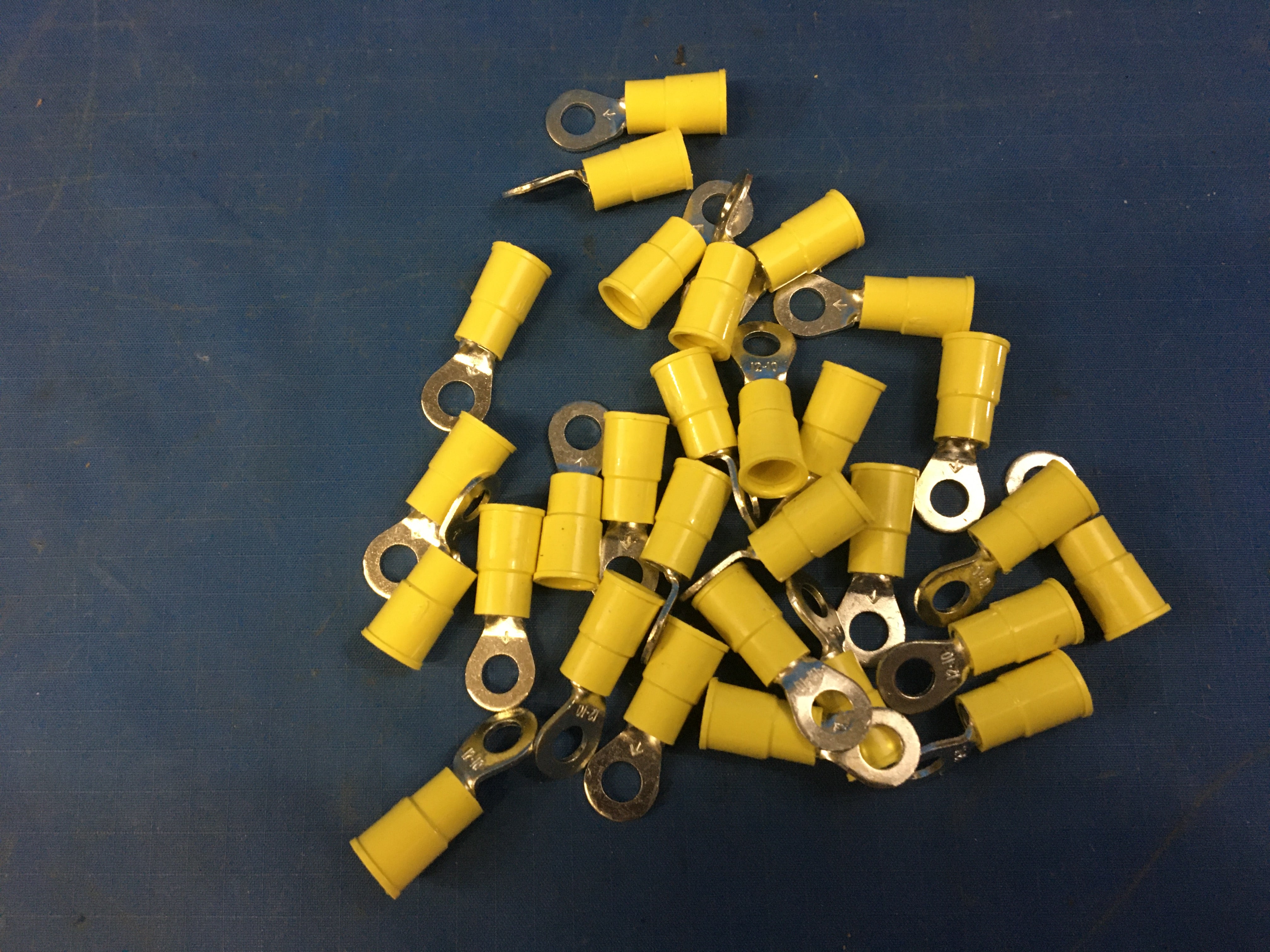

3m terminal, ring, yellow, 12-10awg, pk50
Special Features
Ring tongue, wire size 12-10 awg, barrel inside diameter 0.135 inch, barrel length 0.250 inch, connector width 0.380 inch, stud size no. 10, color yellow, thickness 0.040 inch, vinyl insulated, package 50



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
