Elco U187A/G Electrical Receptacle Connector NSN:5935-00-045-9832

Please fill out the form below for a price quote and availability on this item.

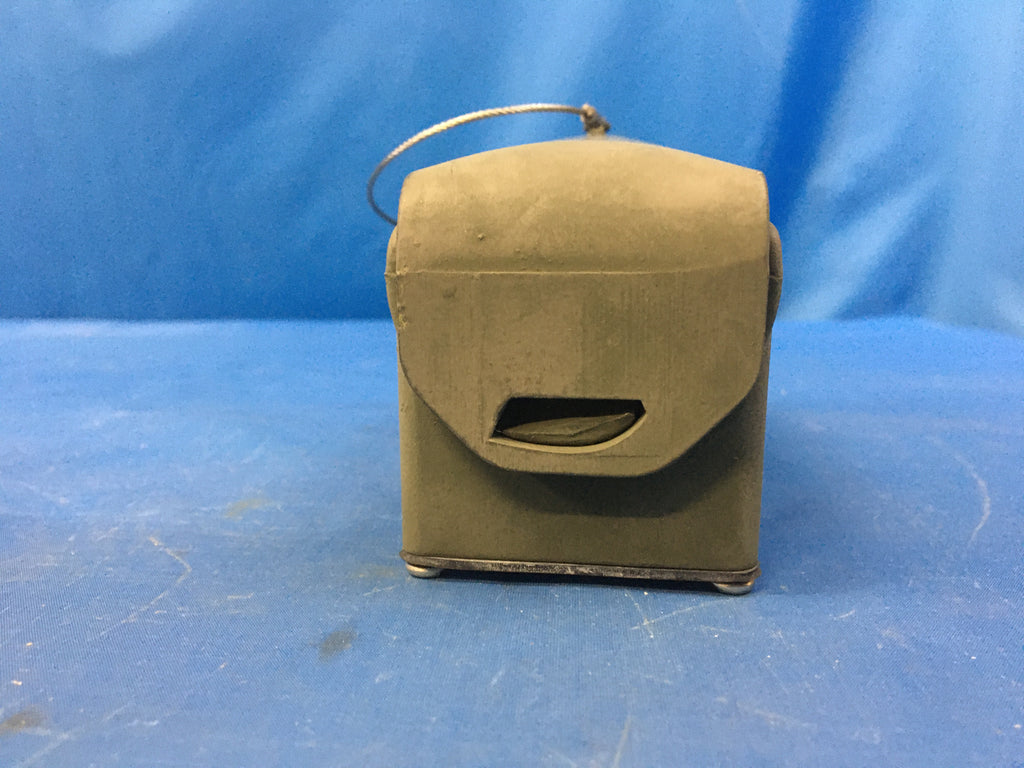

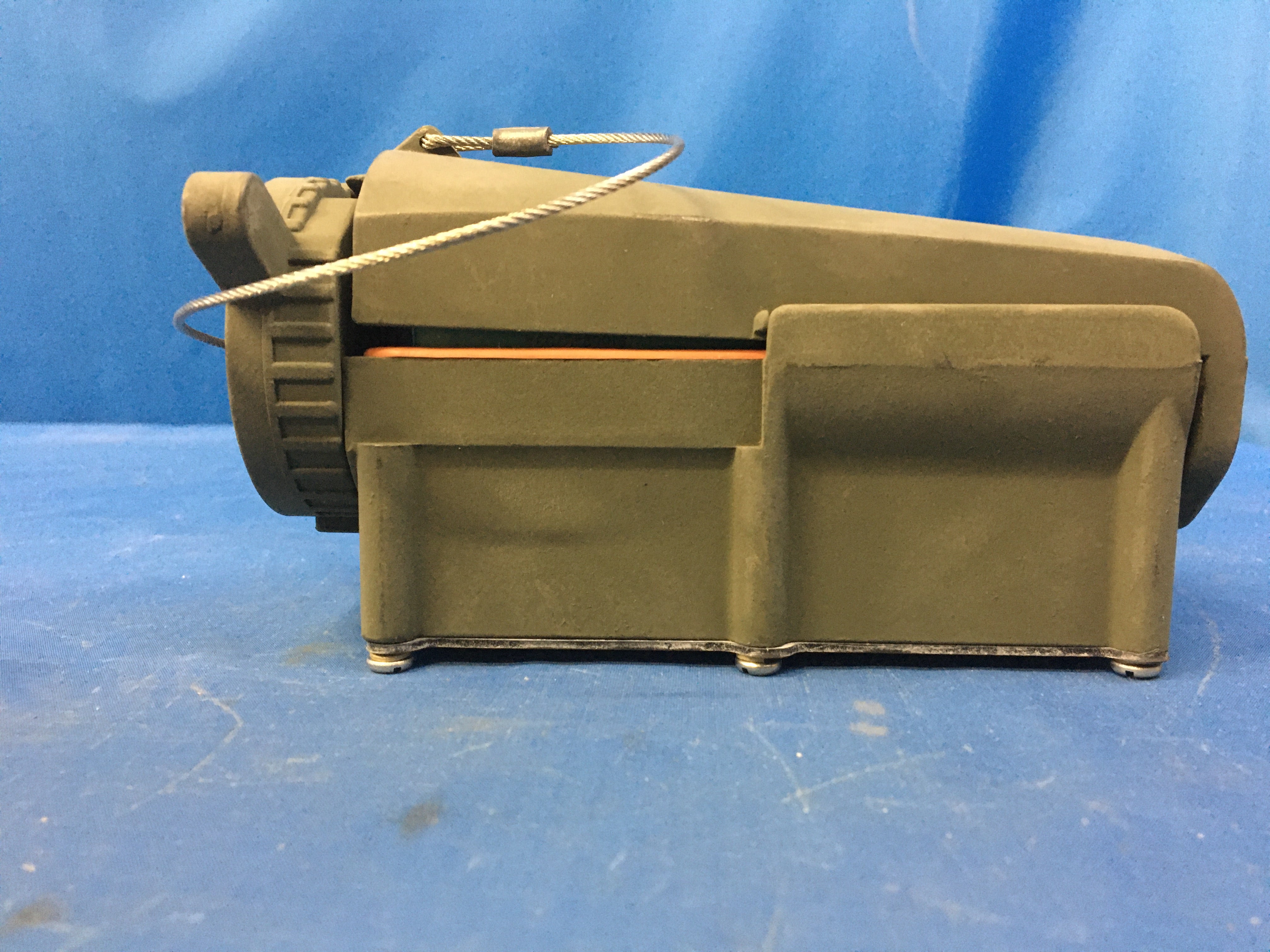

Electrical Receptacle Connector

NSN: 5935-00-045-9832 | Model: U187A/G
ITAR Registered seal

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connecto (s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lampholder; jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified) . For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-00-045-9832
DEMIL
Yes - ITAR Controlled
Thread Class
2a
Overall Length
6.438 inches
Overall Height
3.094 inches
Overall Width
3.188 inches
Threaded Device Type
Mounting stud
Mating End Quantity
1
Contact Removability
Nonremovable single mating end single contact grouping
Shell Type
Solid
Connector Locking Method
Shell twistlock
Thread Length
0.625 inches
Thread Size
0.164 inches
Included Contact Quantity
104 single mating end single contact grouping
Thread Series Designator
Unc



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
