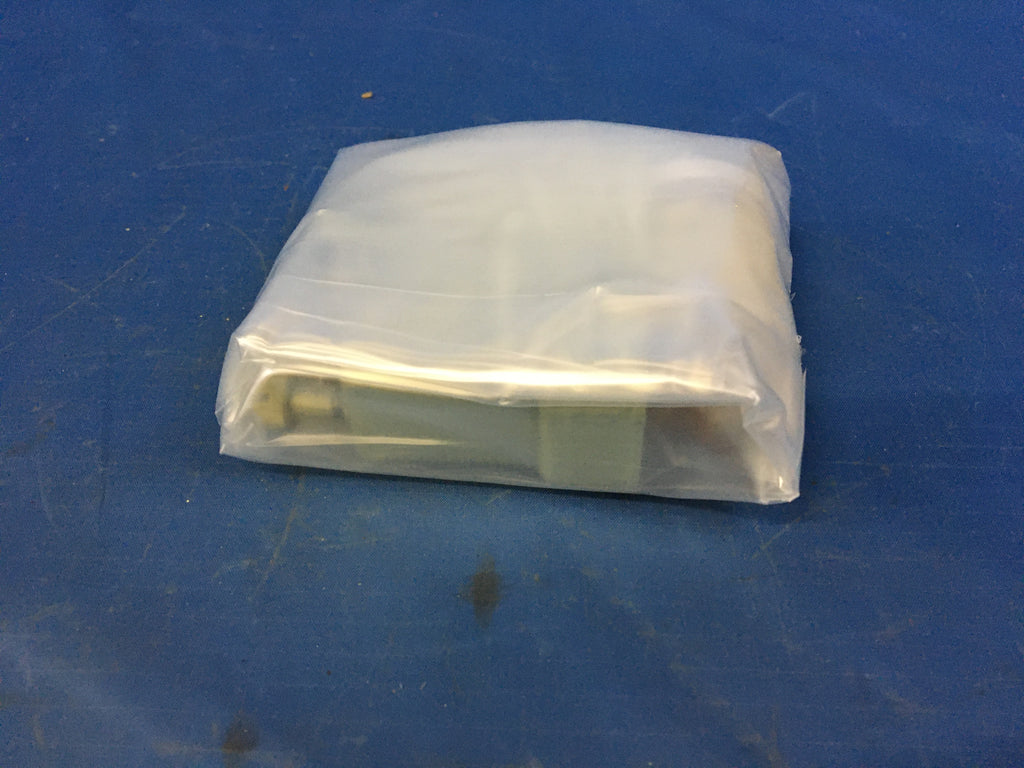

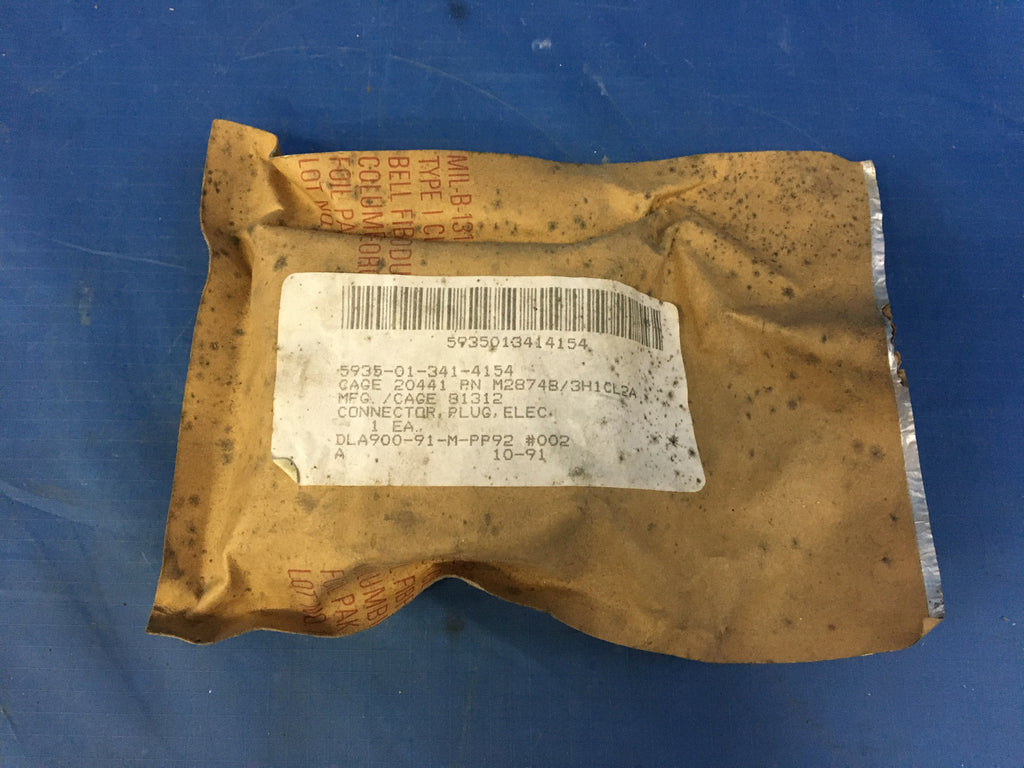

Winchester M28748/3-H1CL2A Electrical Plug Connector NSN:5935-01-341-4154

Winchester Electronics

Translation missing: en.products.product.out_of_stock_msg

Please fill out the form below for a price quote and availability on this item.

Electrical Plug Connector

NSN: 5935-01-341-4154 | Model: M28748/3-H1CL2A
ITAR Registered seal

An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connecto (s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified) . for items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-01-341-4154
DEMIL
Yes - ITAR Controlled
Thread Class
2a and 2b
Thread Direction
Right-hand and right-hand
Body Style
Hood, top opening w/clamp
Overall Length
Between 2.578 inches and 2.610 inches
Overall Height
2.689 inches
Overall Width
Between 0.812 inches and 0.844 inches
Environmental Protection
Humidity resistant and shock resistant and thermal shock resistant and vibration resistant
Cable Entrance Diameter
0.340 inches
Threaded Device Type
Coupling facility
Mating End Quantity
1
Contact Position Arrangement Style
50 single mating end
Contact Removability
Removable single mating end single contact grouping
Contact Maximum Current Rating In Amps
7.5 single mating end single contact grouping
Polarization Method
Jackscrew and shell
Shell Type
Hood, top opening
Connector Locking Method
Jackscrew-socket
Connector Cable Strain Relief Method
Cable clamp
Operating Tempurature Rating
Between -55.0 degrees celsius and 125.0 degrees celsius
Thready Qty Per Inch (tpi)
32 and 32
Thread Size
0.138 inches and 0.138 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping and nickel single mating end single contact grouping
Insert Material
Plastic diallyl phthalate glass filled single mating end
Contact Surface Treatment Specification
Mil-g-45204, type 2, grade c, cl 1 military specification 1st treatment response single mating end single contact grouping and qq-n-290, cl 2 federal specification 2nd treatment response single mating end single contact grouping
Terminal Type
Crimp single mating end single contact grouping
Contact Material Specification
Qq-c-530 federal specification single material response single mating end single contact grouping or qq-c-533 federal specification single material response single mating end single contact grouping
Shell Material
Aluminum alloy
Shell Surface Treatment
Cadmium and chromate
Shell Surface Treatment Specification
Qq-p-416, type 2, cl 1 or 2 federal specification all treatment responses
Insert Material Specification
Mil-m-14, ty sdg-f military specification single material response single mating end or mil-p-19833, ty gdi-30f military specification single material response single mating end
Shell Guide Type And Location Designator
C pin
Included Contact Quantity
50 single mating end single contact grouping
Included Contact Type
Round pin single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.050 gold grains, troy
Precious Material
Gold
Test Data Document
81349-mil-c-28748 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unc and unc
Specification Data
81349-mil-c-28748/3 government specification

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
