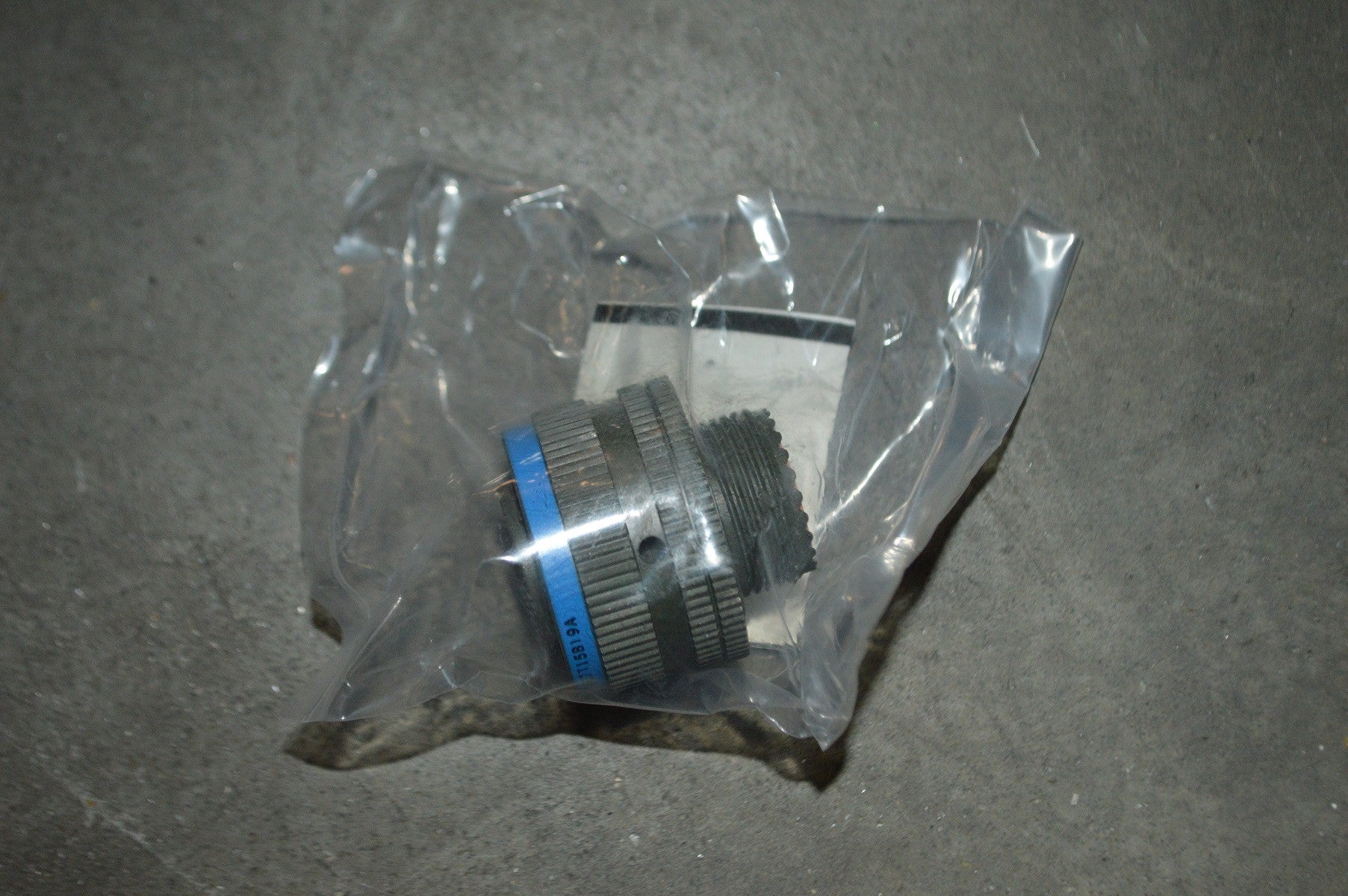

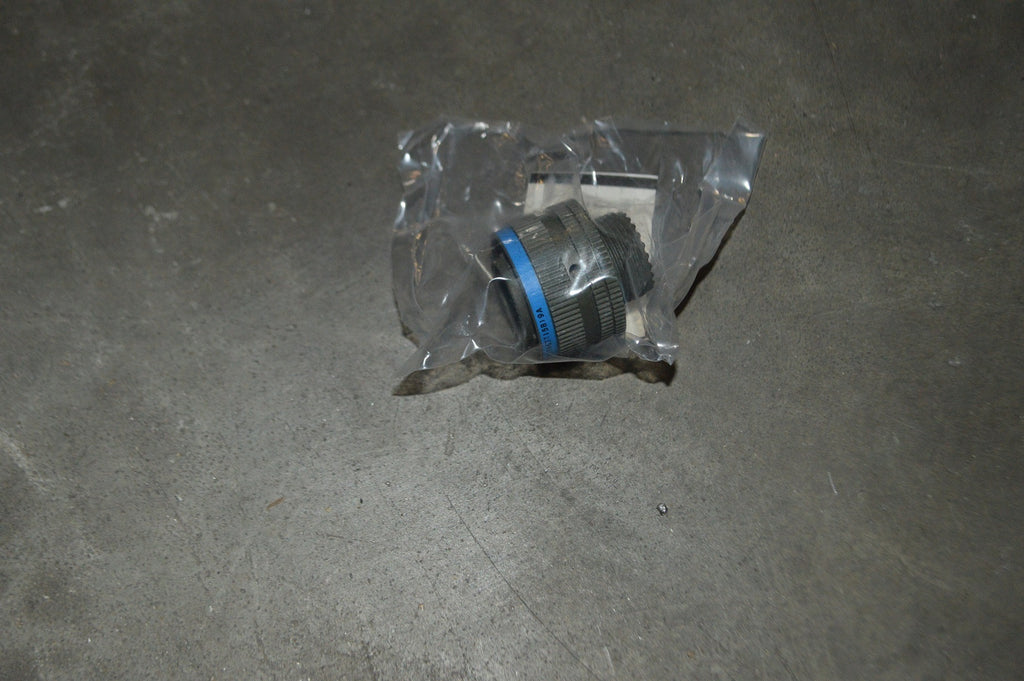

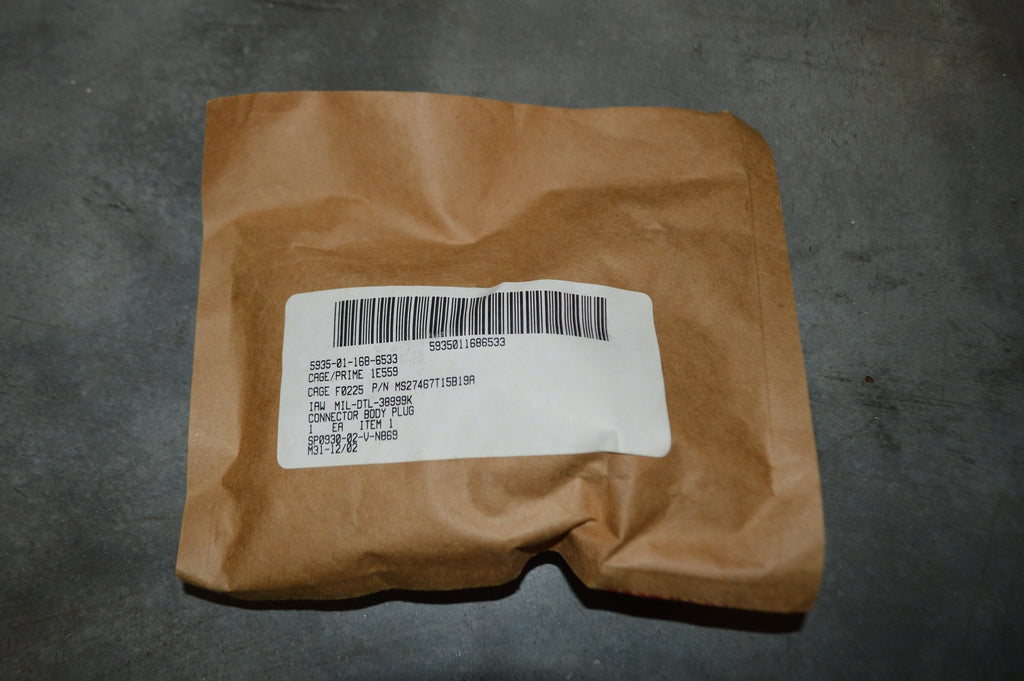

Electrical Plug Connector NSN:5935-01-168-6533 P/N:MS27467T15B19a
Please fill out the form below for a price quote and availability on this item.
Electrical Plug Connector- The main or principal part of a connector, plug, electrical which includes insert(s) designed to accommodate but does not include removable contacts. it may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. it is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. excludes connector body, modular plug, electrical. for items without insert(s), see shell, electrical connector.
| Body Style: | Straight shape, internal coupling |
| Connector Locking Method: | Bayonet latch |
| Contact Position Arrangement Style: | 15-19 single mating end |
| Environmental Protection: | Moisture proof and salt water resistant and vibration proof |
| Mating End Quantity: | 1 |
| Nominal Thread Size: | 0.812 inches |
| Nominal Thread Length: | 0.219 inches |
| Overall Diameter: | 1.281 inches maximum |
| Overall Length: | 1.234 inches maximum |
| Insert Position In Deg: | 0.0 |
| Shell Material: | Aluminum alloy |
| Shell Surface Treatment Document And Classification: | Qq-p-416 fed spec single treatment response |
| Shell Surface Treatment: | Cadmium |
| Shell Type: | Solid |
| Polarization Method: | Keyway or multiple keyway |
| Specification/standard Data: | 96906-ms27467 government standard |
| Test Data Document: | 81349-mil-c-38999 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| Thread Class: | 2a |
| Thread Direction: | Right-hand |
| Thread Quantity Per Inch: | 20 |
| Thread Series Designator: | Unef |
| Threaded Device Type: | Back shell |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
