Military Specifications MS27336T18B32S Electrical Plug Connector NSN:5935-01-119-6820

Please fill out the form below for a price quote and availability on this item.

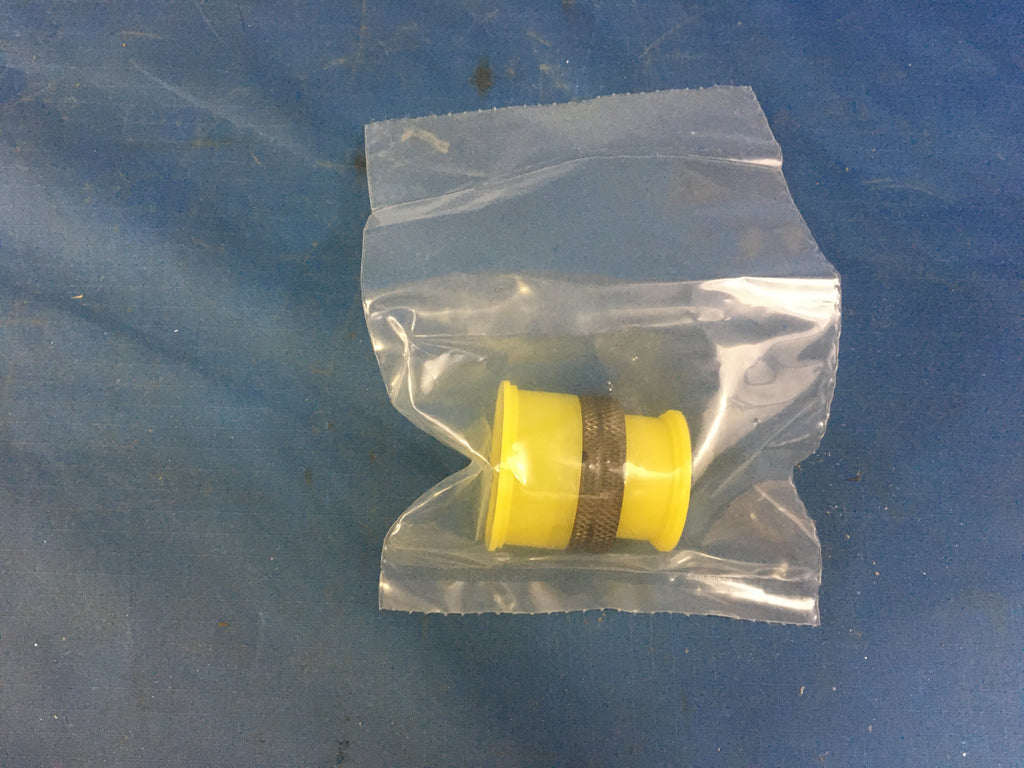

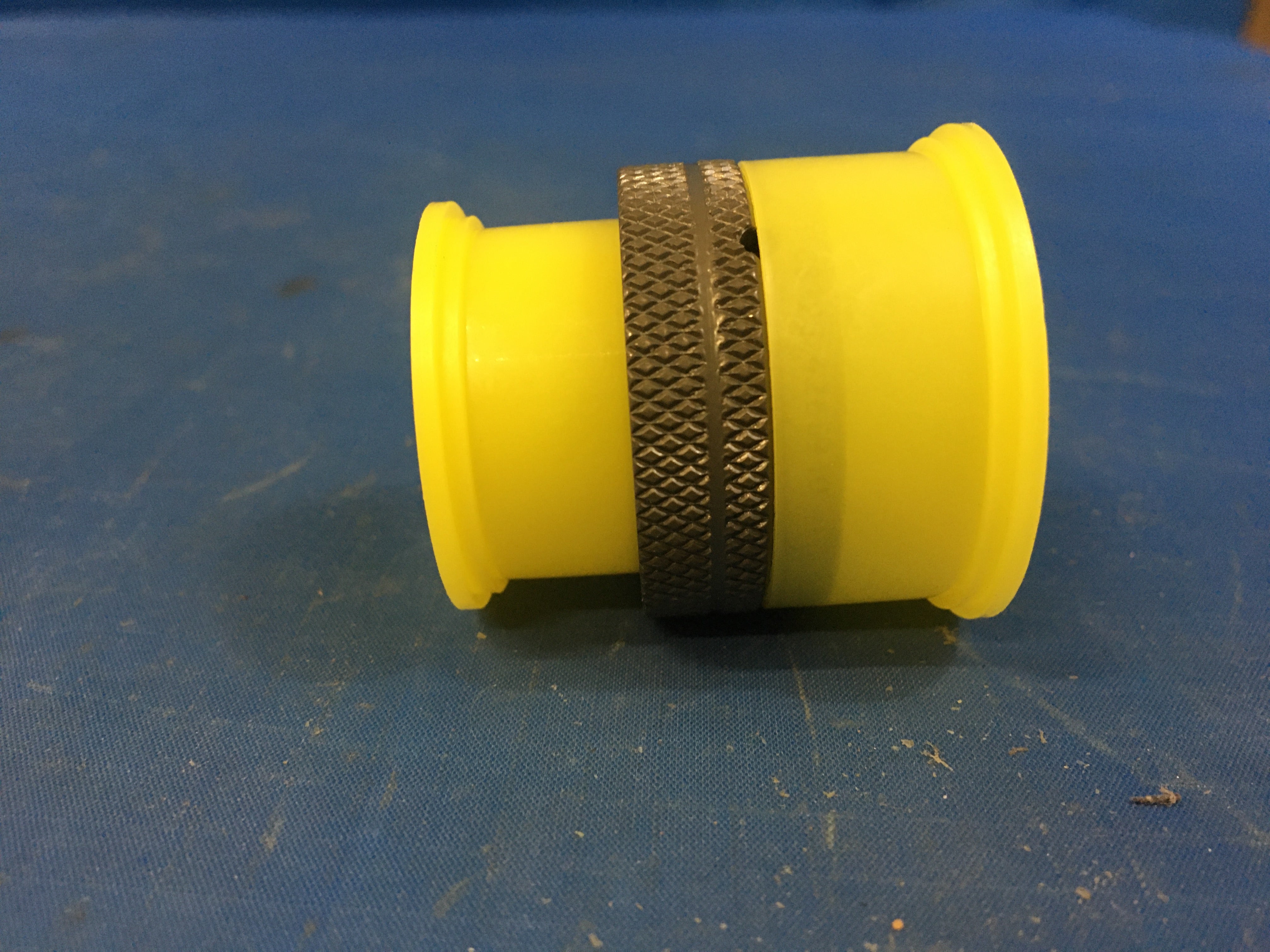

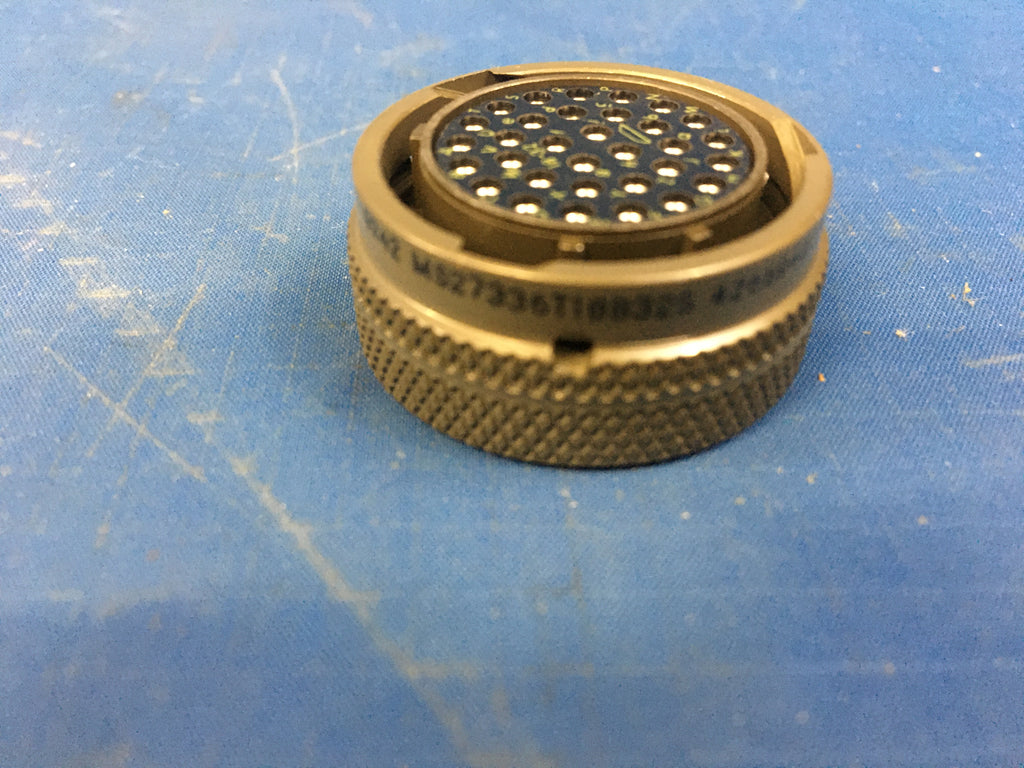

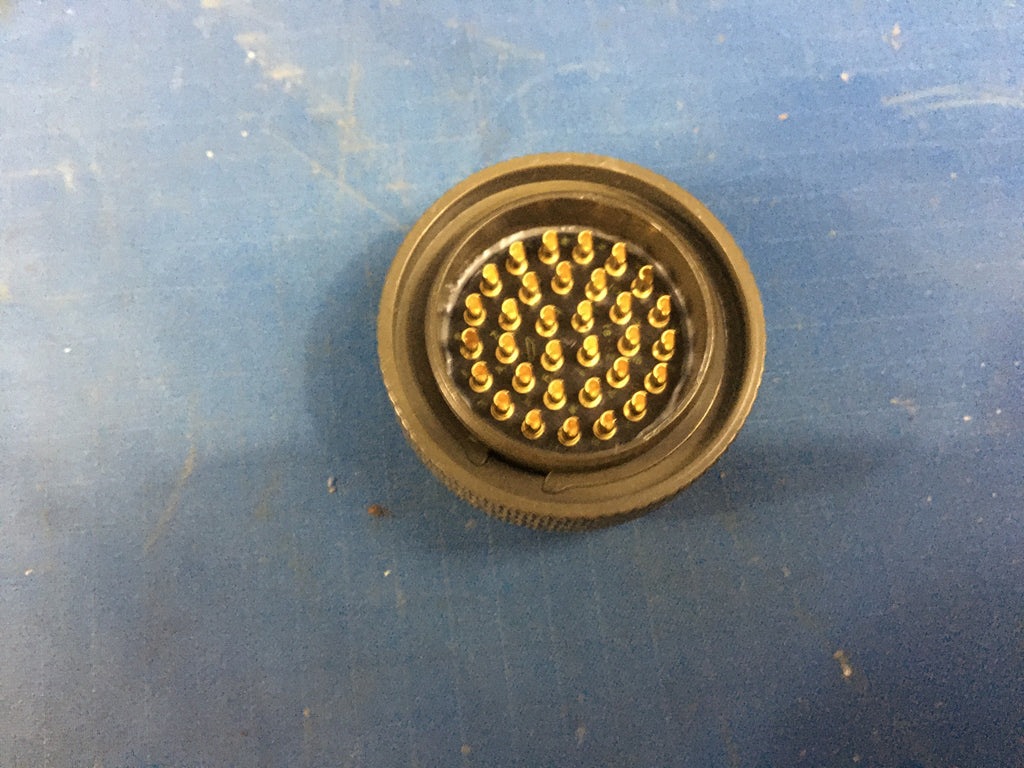

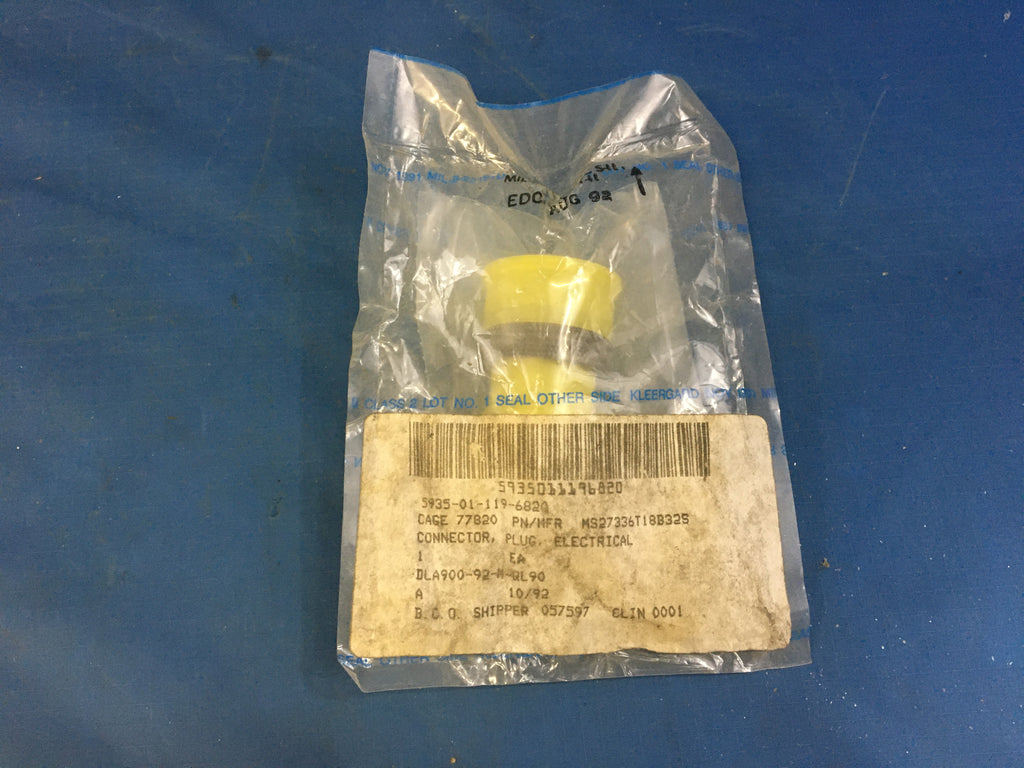

Electrical Plug Connector

NSN: 5935-01-119-6820 | Model: MS27336T18B32S
ITAR Registered seal

An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connecto (s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified) . for items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-01-119-6820
DEMIL
NO
Thread Class
2a
Thread Direction
Right-hand
Body Style
Straight shape, internal coupling
Overall Length
0.625 inches
Overall Diameter
1.406 inches
Environmental Protection
Moisture proof and vibration proof
Threaded Device Type
Back shell
Mating End Quantity
1
Contact Position Arrangement Style

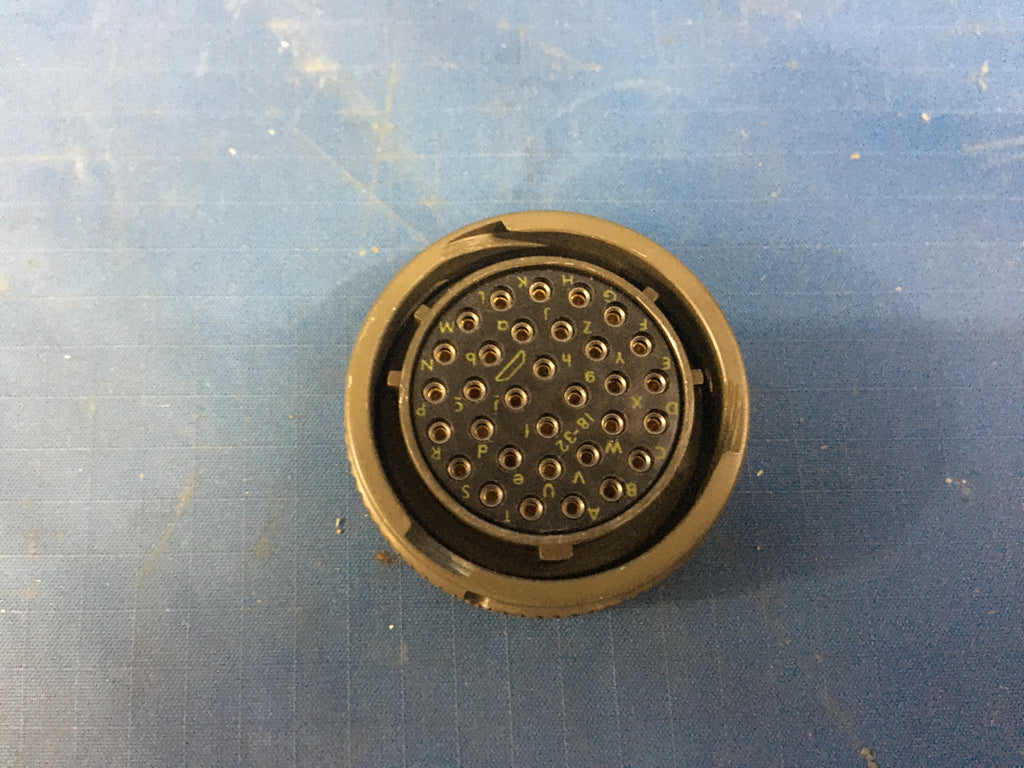

18-32 single mating end
Contact Removability
Nonremovable single mating end single contact grouping
Polarization Method
Keyway or multiple keyway
Insert Position In Deg
0.0
Shell Type
Solid
Connector Locking Method
Bayonet latch
Thread Length
0.219 inches
Thready Qty Per Inch (tpi)
18
Thread Size
1.062 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping and silver single mating end single contact grouping
Insert Material
Resin synthetic single mating end
Contact Surface Treatment Specification
Mil-g-45204 military specification 1st treatment response single mating end single contact grouping and qq-s-365 federal specification 2nd treatment response single mating end single contact grouping
Terminal Type
Solder well single mating end single contact grouping
Shell Material
Aluminum alloy
Shell Surface Treatment
Cadmium
Shell Surface Treatment Specification
Qq-p-416 federal specification single treatment response
Included Contact Quantity
32 single mating end single contact grouping
Included Contact Type
Round socket single mating end single contact grouping
Precious Material And Location
Contact surfaces gold and contact surfaces silver
Precious Material And Weight
0.032 gold grains, troy and 0.032 silver grains, troy
Precious Material
Gold and silver
Test Data Document
81349-mil-c-27599 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unef
Specification Data
96906-ms27336 government standard



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
