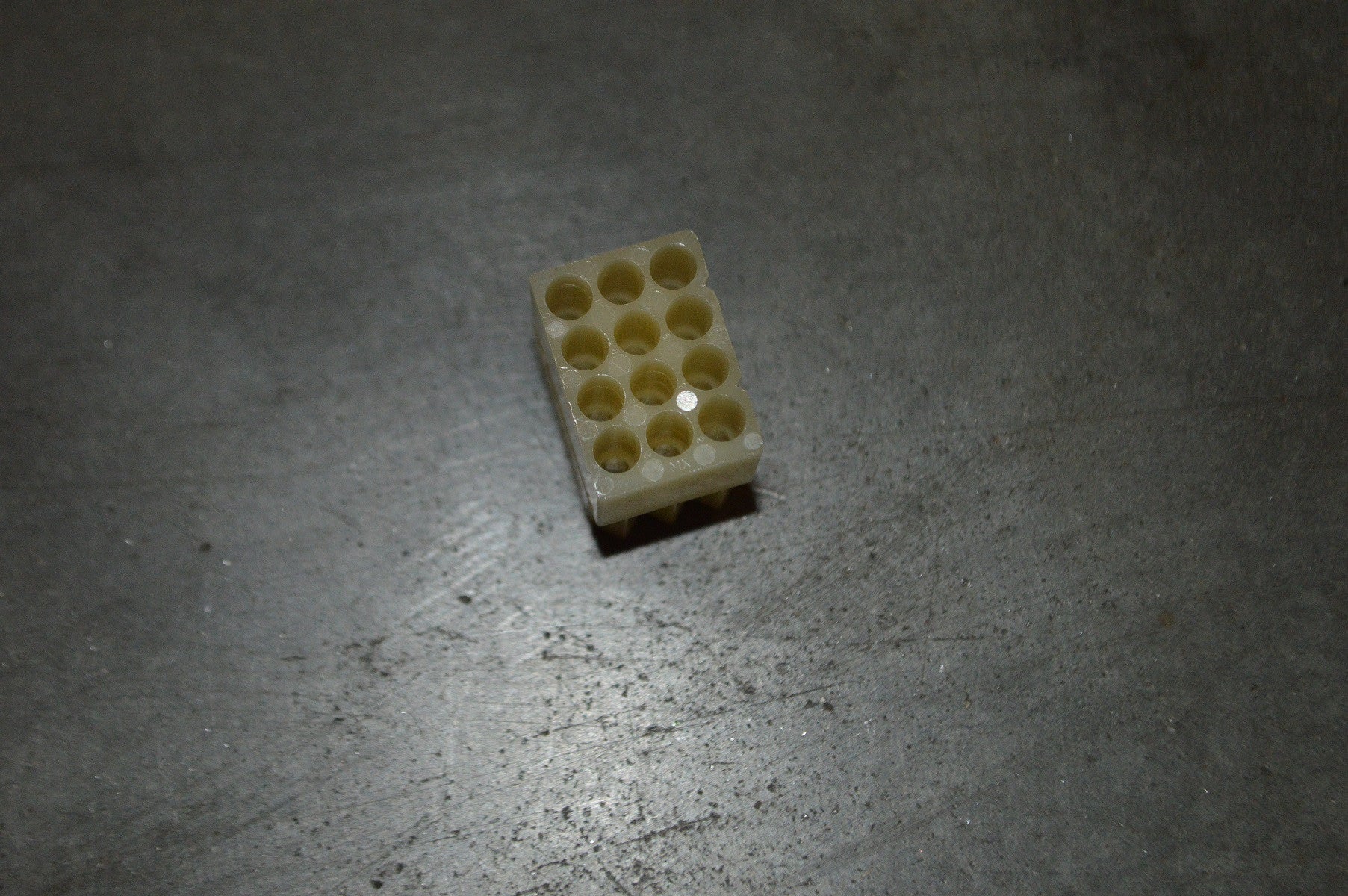

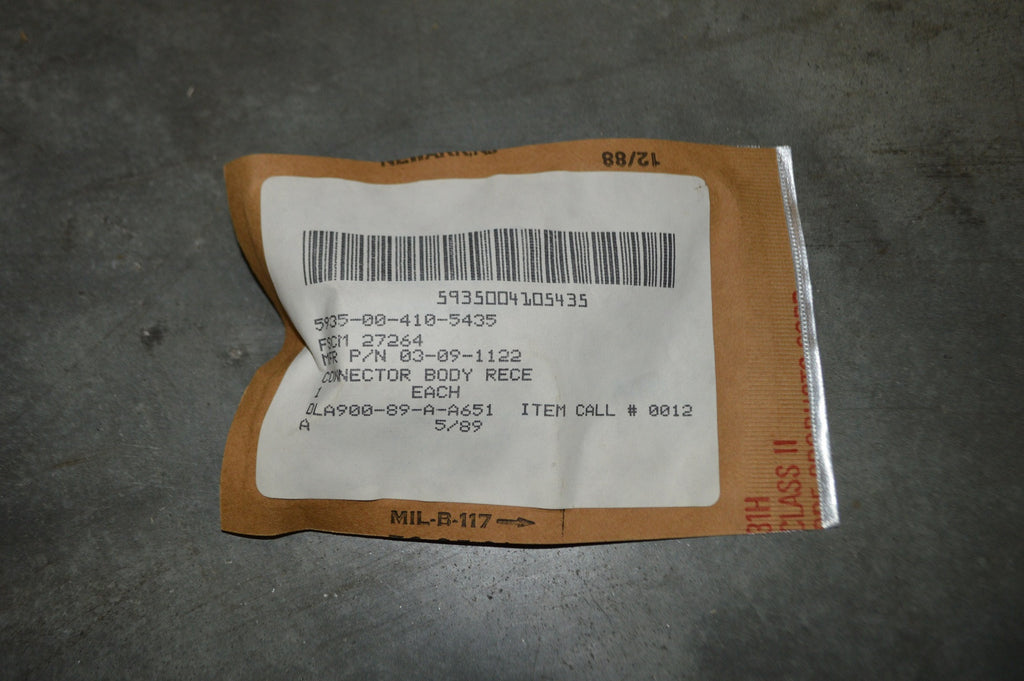

Electrical Plug Connector NSN:5935-00-410-5435 P/N:03-09-1122-1360R
Please fill out the form below for a price quote and availability on this item.
Electrical Plug Connector- The main or principal part of a connector, plug, electrical which includes insert(s) designed to accommodate but does not include removable contacts. it may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. it is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. excludes connector body, modular plug, electrical. for items without insert(s), see shell, electrical connector.
|Body Length:||0.633 inches nominal|
|Body Style:||Rectangular shape w/tabs|
|Connector Locking Method:||Detent|
|Contact Position Arrangement Style:||12 single mating end|
|Environmental Protection:||Moisture resistant|
|Mating End Quantity:||1|
|Overall Height:||0.655 inches nominal|
|Overall Length:||1.050 inches nominal|
|Insert Material:||Plastic polyamide single mating end|
|Overall Width:||1.015 inches nominal|
|Polarization Method:||Mating end|
|Special Features:||With mounting ears|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
