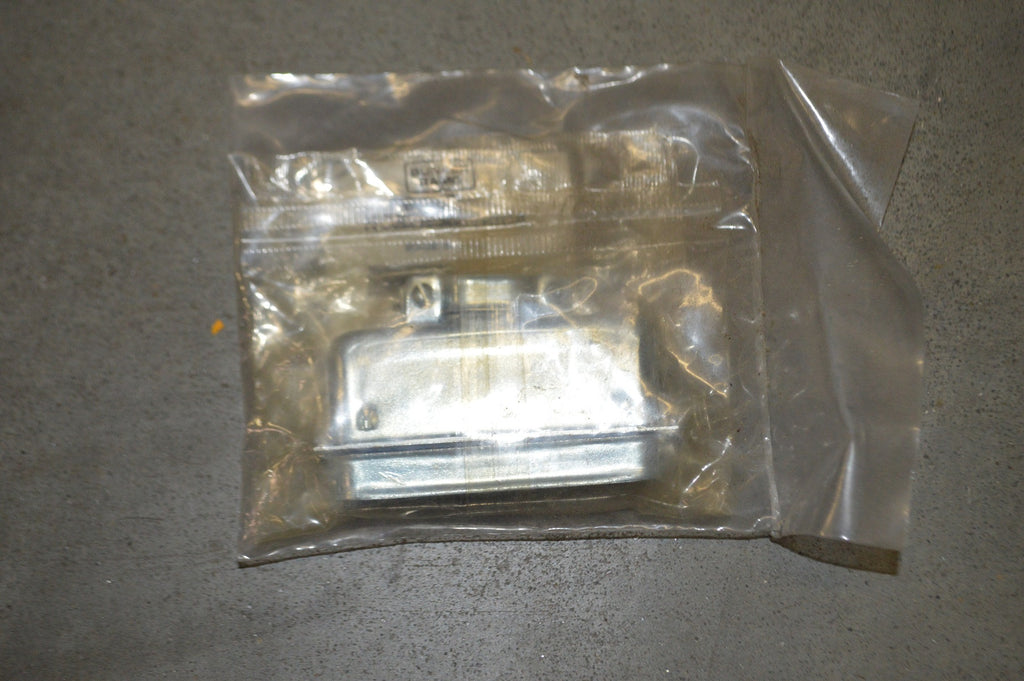

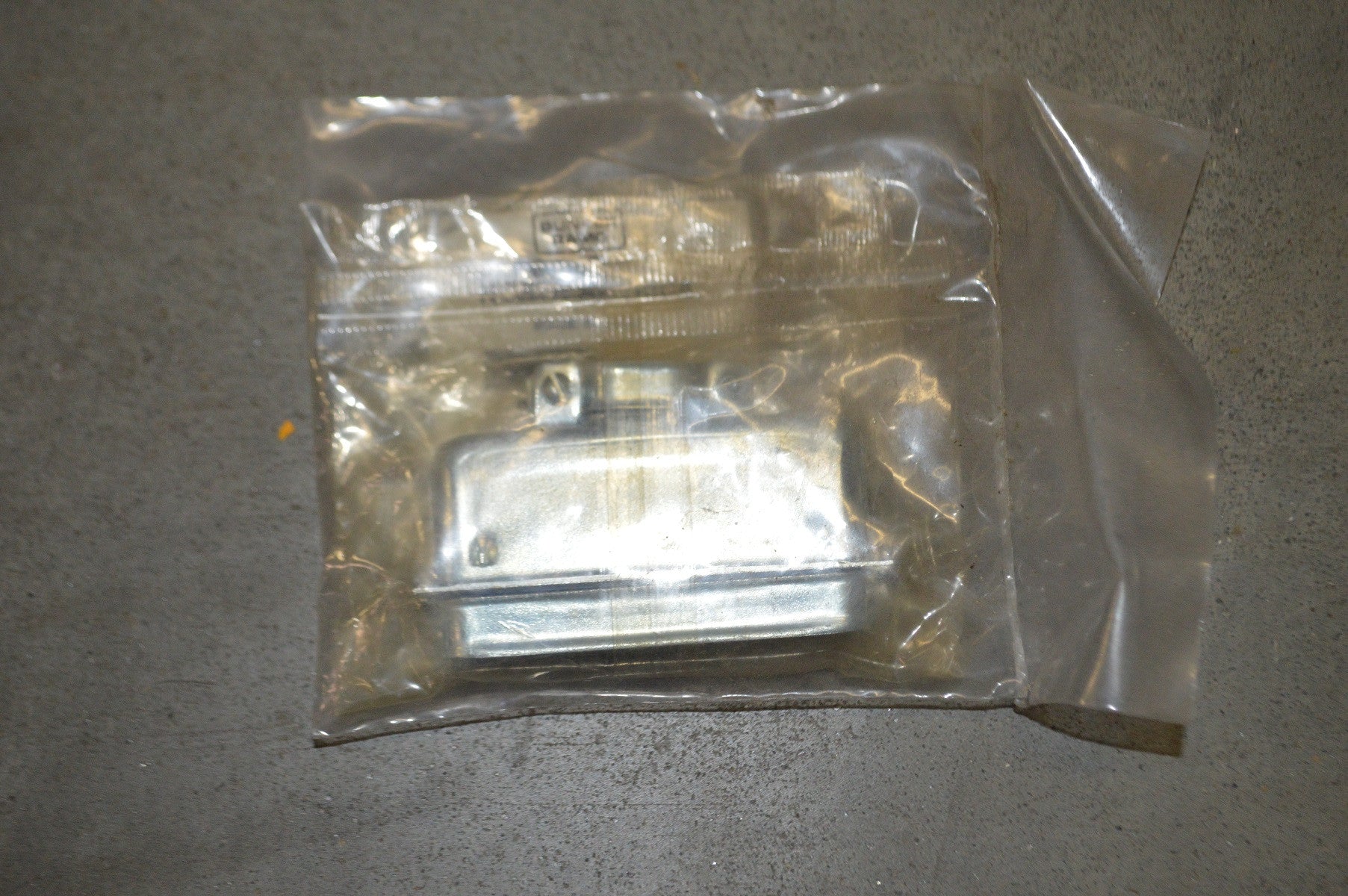

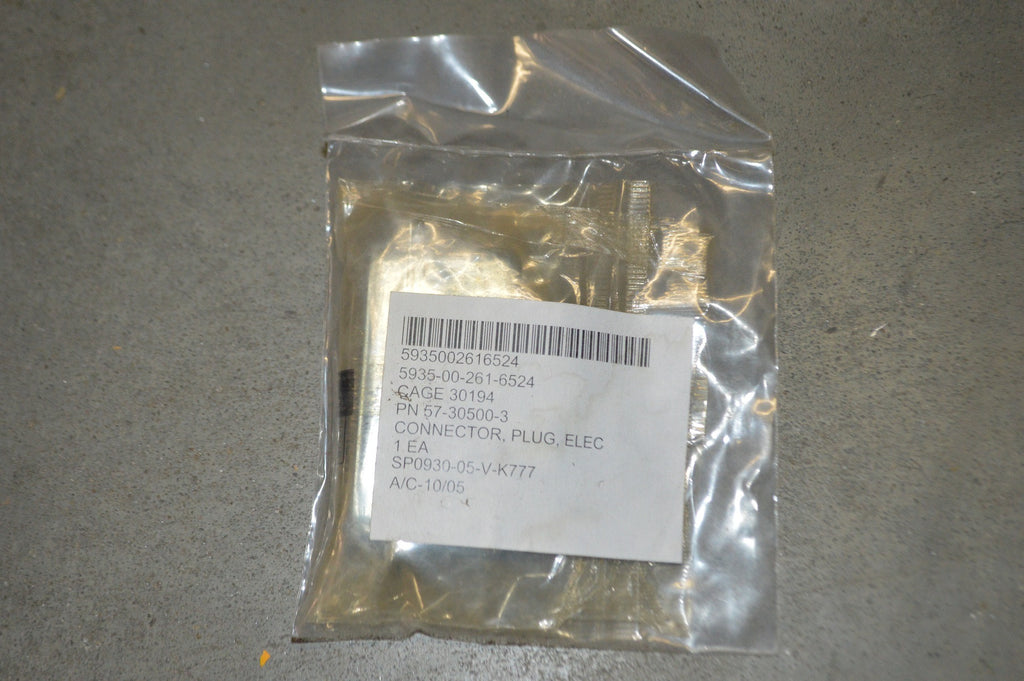

Electrical Plug Connector NSN:5935-00-261-6524 P/N:57-30500-3

Please fill out the form below for a price quote and availability on this item.

Electrical Plug Connector- An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified). for items without inserts, see shell, electrical connector.

Body Style: Hood, top opening w/clamp
Cable Entrance Diameter: 0.473 inches nominal
Connector Cable Strain Relief Method: Cable clamp
Connector Locking Method: Latch
Contact Maximum Current Rating In Amps: 5.0 single mating end single contact grouping
Contact Material: Cadmium single mating end single contact grouping and copper single mating end single contact grouping
Contact Position Arrangement Style: 2 rows of independent contacts inserted board single mating end
Contact Removability: Nonremovable single mating end single contact grouping
Contact Surface Treatment: Gold single mating end single contact grouping and copper single mating end single contact grouping
Mating End Quantity: 1
Overall Height: 2.125 inches nominal
Included Contact Quantity: 50 single mating end single contact grouping
Included Contact Type: Leaf spring single mating end single contact grouping
Insert Material Document And Classification: Mil-m-14,type mdg mil spec single material response single mating end
Insert Material: Plastic diallyl phthalate single mating end
Shell Material: Copper alloy
Shell Surface Treatment: Zinc and chromate
Shell Type: Hood, top opening
Overall Length: 2.947 inches nominal
Overall Width: 1.825 inches nominal
Polarization Method: Mating end
Precious Material And Location: Contact surfaces gold
Precious Material And Weight: 0.050 gold grains, troy
Precious Material: Gold
Terminal Location: Back single mating end single contact grouping
Terminal Type: Tab, solder lug single mating end single contact grouping

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
