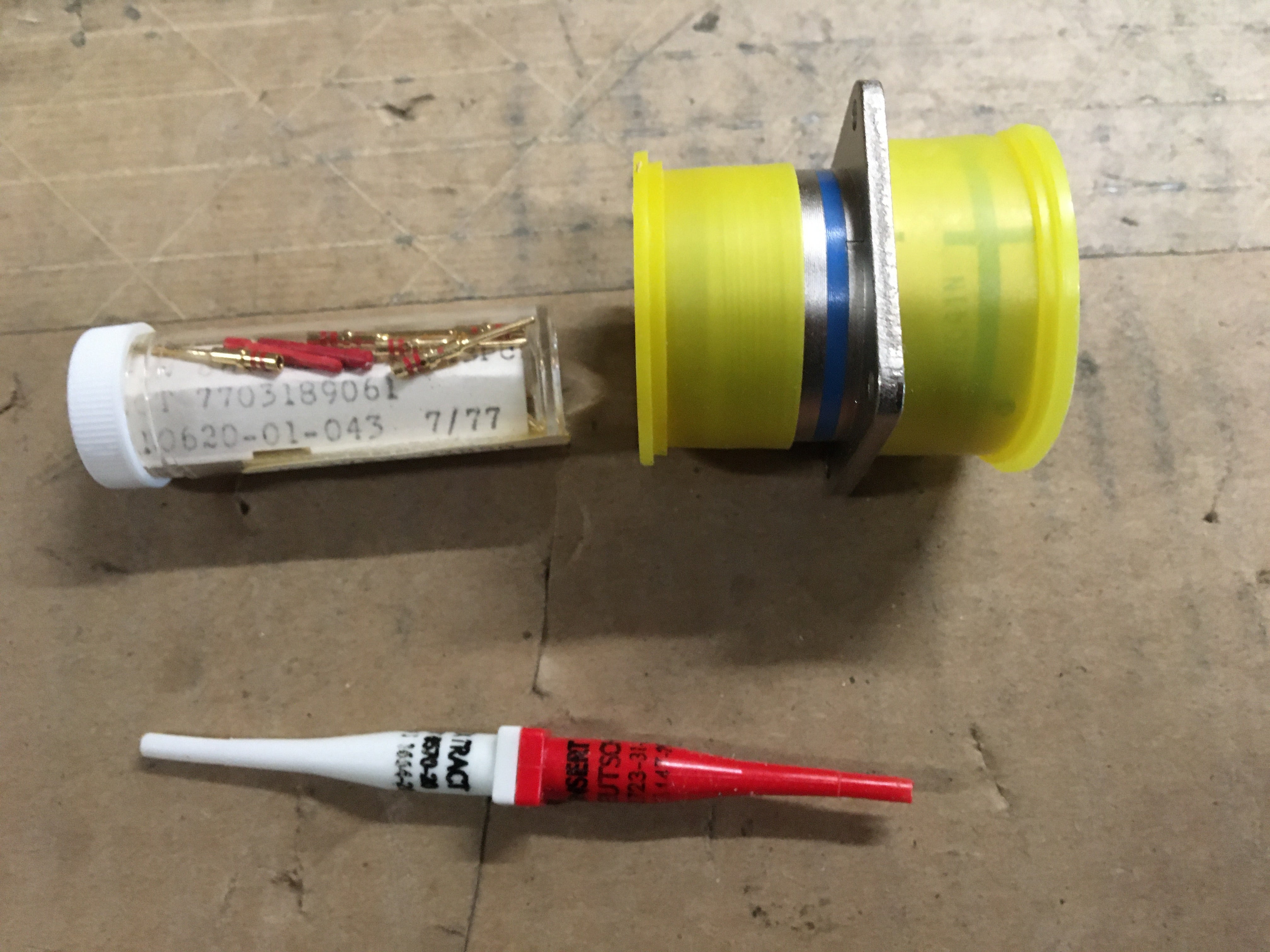

Electrical Receptacle Connector

NSN: 5935-00-884-3487 | Model: MILC83723-02
ITAR Registered seal

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connector (s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lamp holder jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified) . For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-00-884-3487
DEMIL
Yes - ITAR Controlled
Thread Class
2A
Thread Direction
Right-hand
Body Style
Straight shape, external coupling
Overall Length
1.465 inches
Overall Height
1.453 inches
Overall Width
1.453 inches
Environmental Protection
Moisture resistant and salt water resistant and vibration resistant
Unthreaded Mounting Hole Diameter
Between 0.115 inches and 0.125 inches
Center To Center Distance Between Mounting Facilities Parallel To Height
Between 1.151 inches and 1.161 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width
Between 1.151 inches and 1.161 inches
Distance From Mounting Shoulder To Front Face
Between 0.556 inches and 0.587 inches
Threaded Device Type
Back shell
Mating End Quantity
1
Contact Position Arrangement Style
20-41 single mating end
Contact Removability
Removable single mating end single contact grouping
Polarization Method
Key way or multiple key way
Insert Position In Deg
0.0
Shell Type
Solid
Connector Locking Method
Bayonet pin
Thread Length
0.290 inches
Thread Size
1.188 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping
Contact Surface Treatment Specification
MIL-G-45204, type 2, class 1 military specification single treatment response single mating end single contact grouping
Terminal Type
Crimp single mating end single contact grouping
Shell Material
Aluminum alloy
Shell Material Specification
QQ-A-367 federal specification single material response
Included Contact Quantity
41 single mating end single contact grouping
Included Contact Type
Round pin single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.041 gold grains, troy
Precious Material
Gold
Test Data Document
81349-MIL-C-8373 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unef
Specification Data
81349-MIL-C-8372/02 government specification



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
