Glenair M85049/57-10W Electrical Connector Cable Clamp NSN:5935-01-234-6445

Please fill out the form below for a price quote and availability on this item.

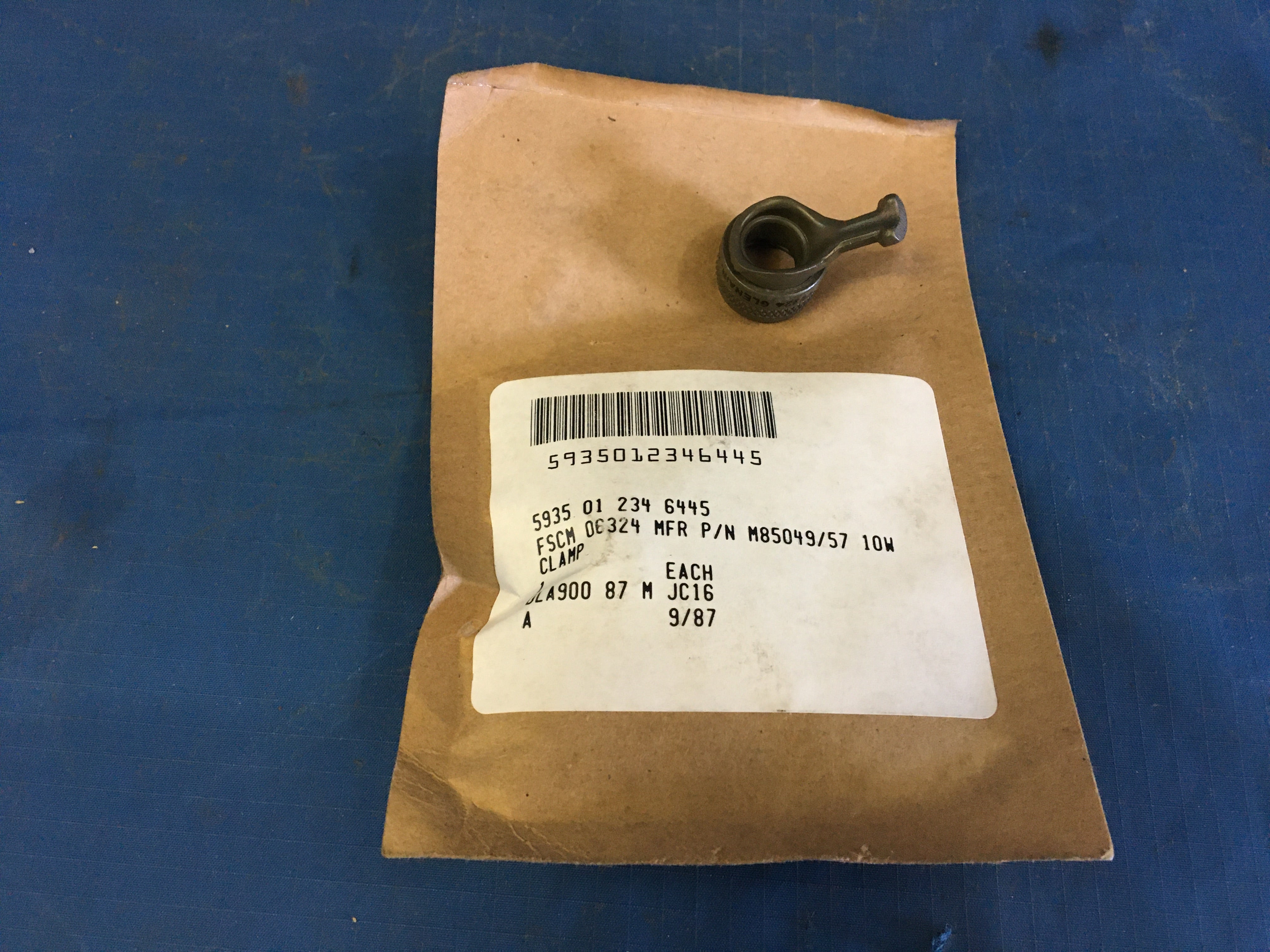

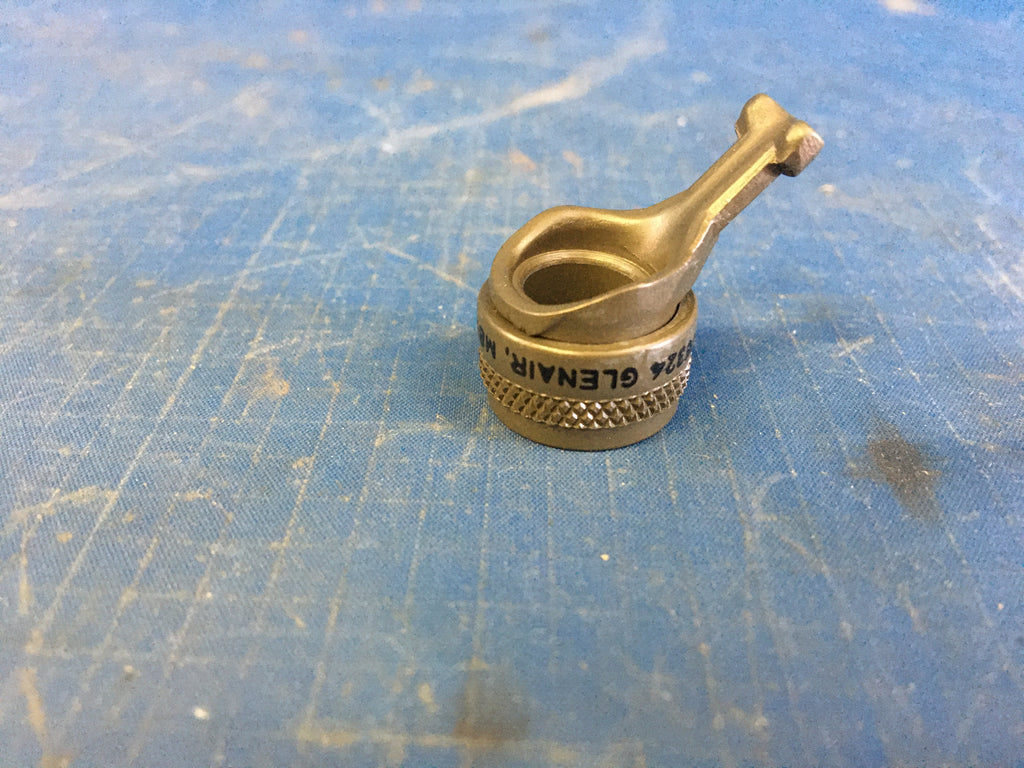

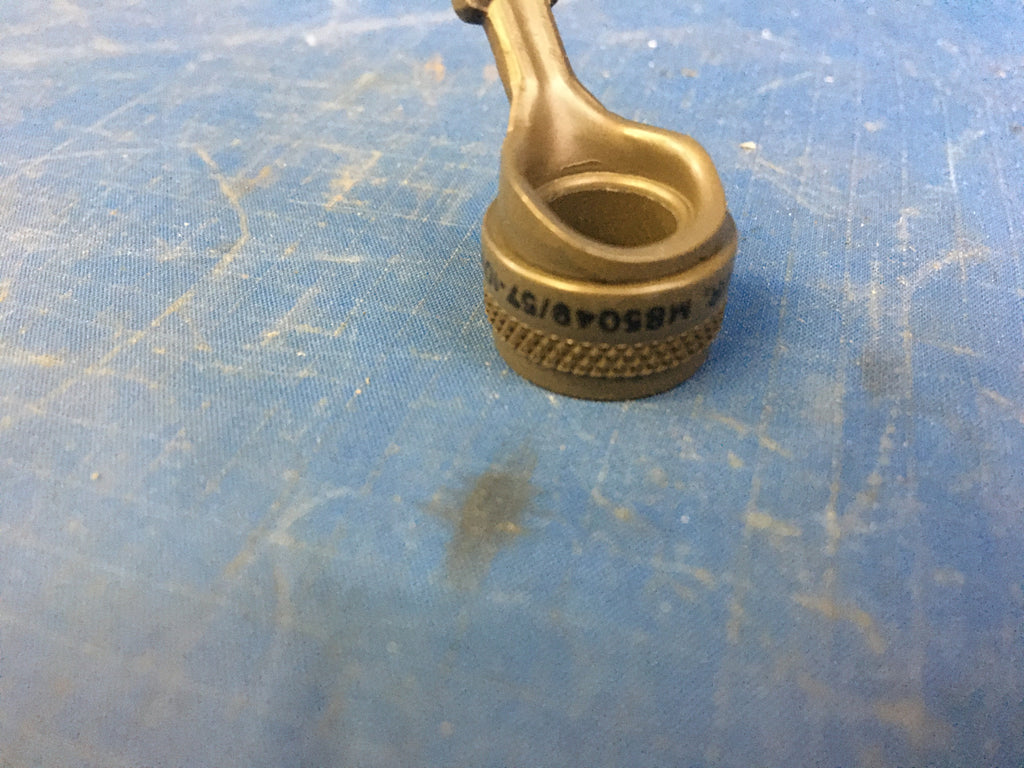

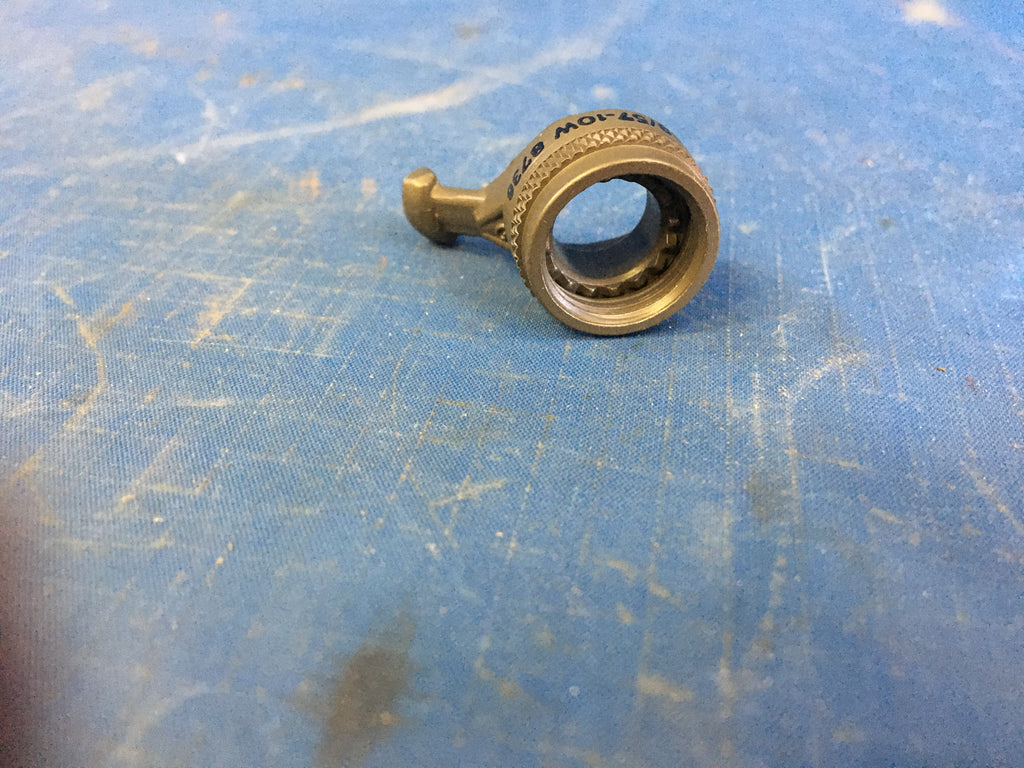

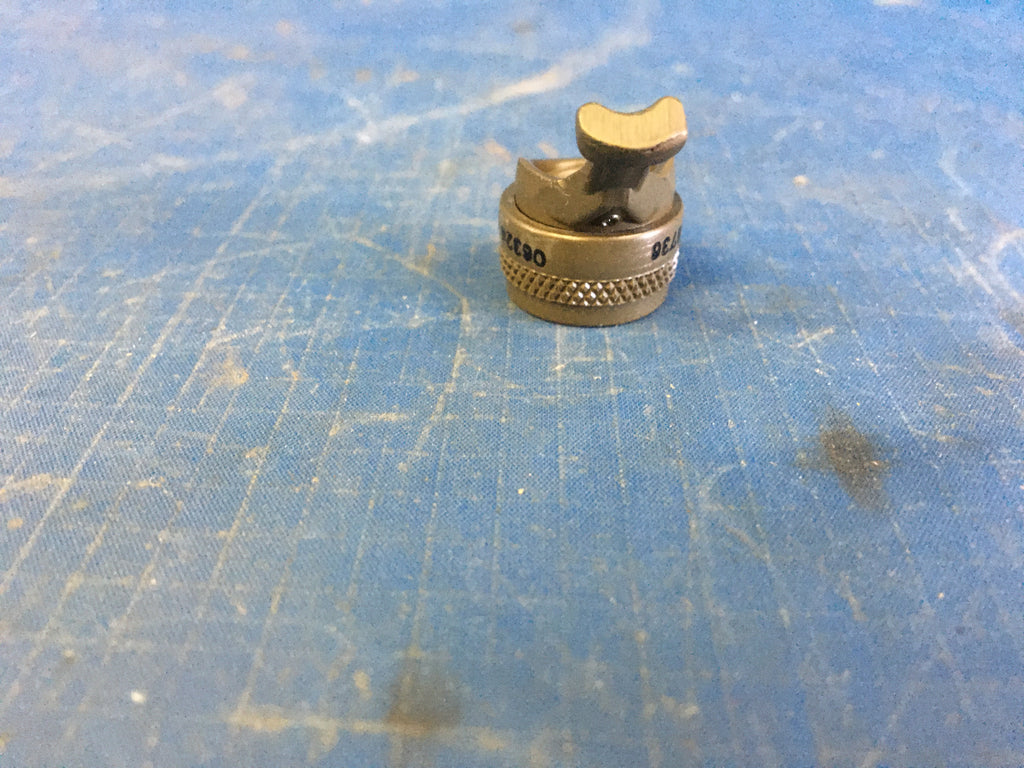

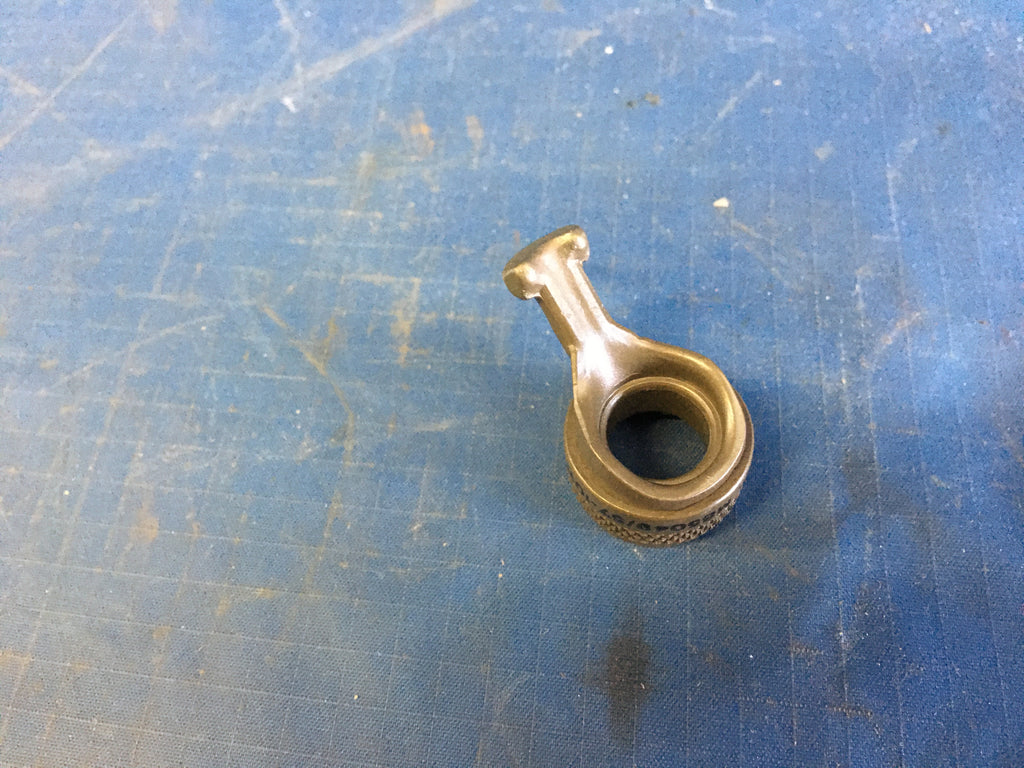

Electrical Connector Cable Clamp

NSN: 5935-01-234-6445 | Model: M85049/57-10W
ITAR Registered seal
Replacements:
  • 5935-01-234-6445 replaces 5935-01-071-6643
Schedule B & Trade:
  • Schedule B: 8548900100 (NAICS 335999)

    Electrical parts of machinery or apparatus not specified or included elsewhere in chapter 85

  • SITC: 77813

    Waste and scrap of primary cells, primary batteries and electric accumulators; spent primary cells, etc; electric parts of mach or apps, nes

  • End Use: 20005

    Electric apparatus

NSN Properties and Flags
NATO Stock Number
5935-01-234-6445
DEMIL
NO
Thread Class
2b
Thread Direction
Right-hand
Overall Width
0.782 inches
Body Angle In Deg
45.0
Cable Opening Diameter
0.392 inches
Distance From Centerline To Connector End
1.330 inches
Distance From Centerline To Cable End
0.880 inches
Thread Length
0.219 inches
Cable Opening Quantity
1
Size Designation
10 and 11
Mounting Facility Type And Quantity
1 threaded coupling
Thready Qty Per Inch (tpi)
24
Thread Size
0.562 inches
Material
Aluminum alloy
Material
Aluminum alloy
Surface Treatment
Cadmium and chromate
Style Designator
Clamp, angle tie strap type
Surface Treatment
Cadmium and chromate
Test Data Document
81349-mil-c-85049 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unef
Specification Data
81349-mil-c-85049/57 government specification

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
