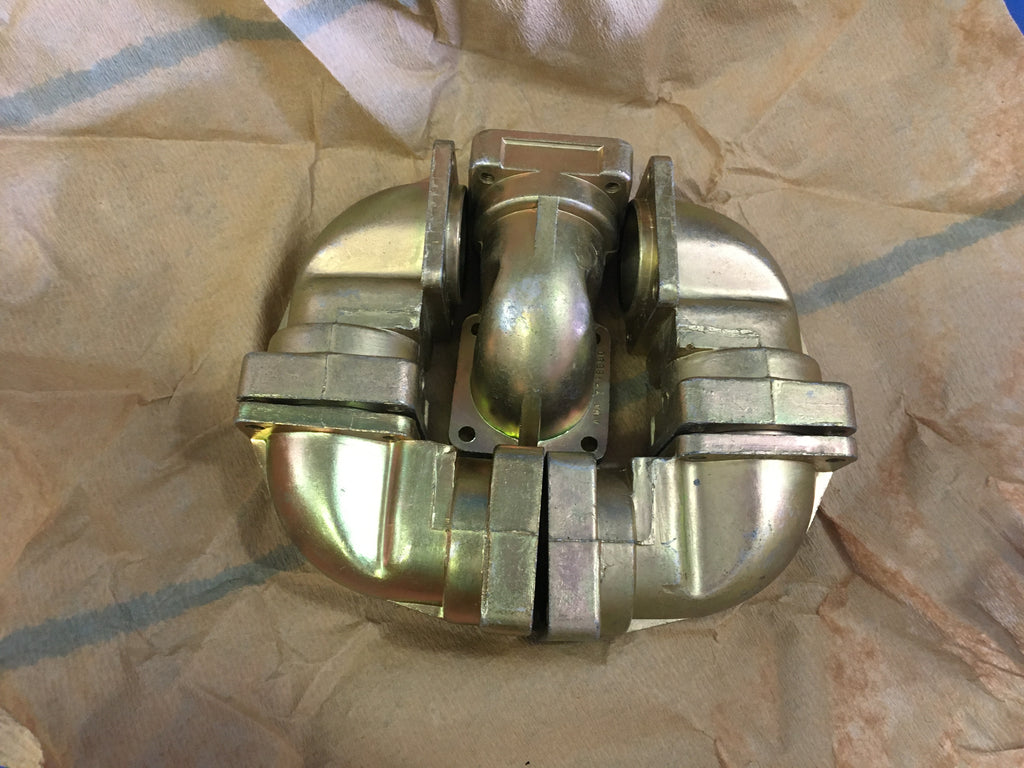

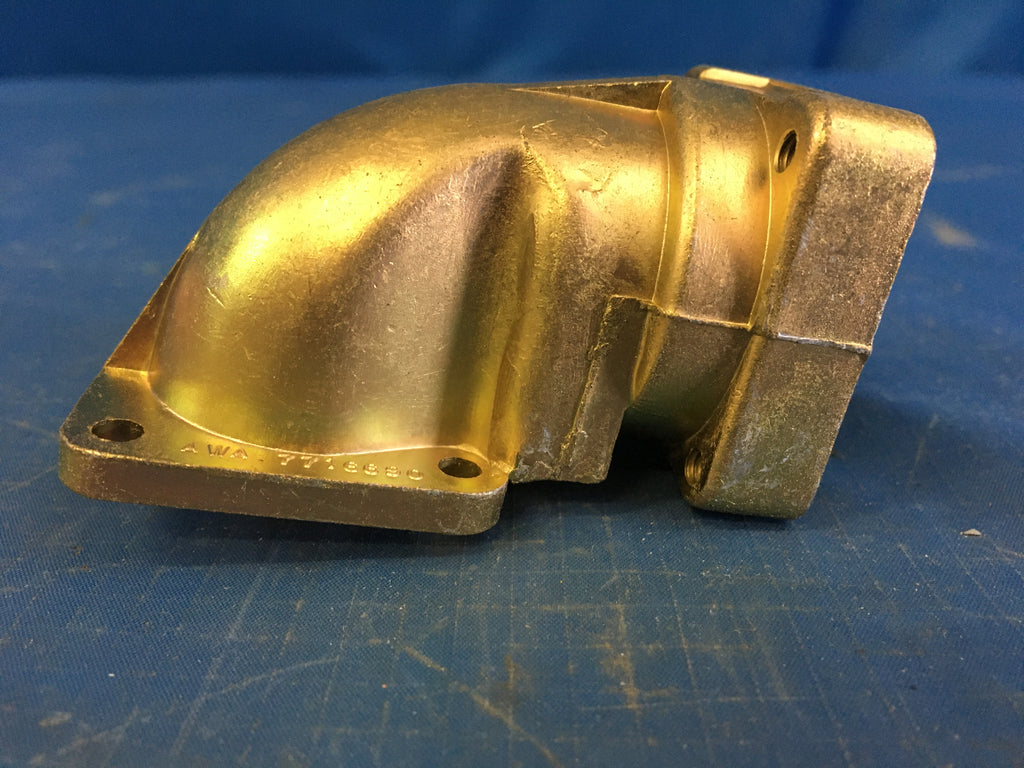

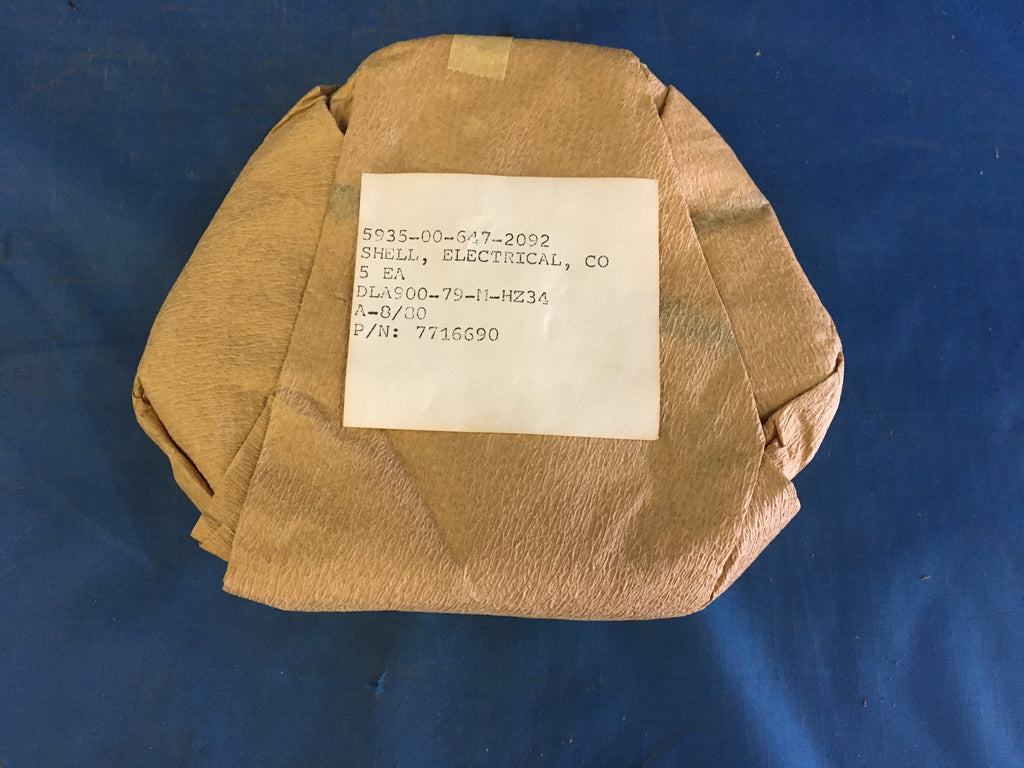

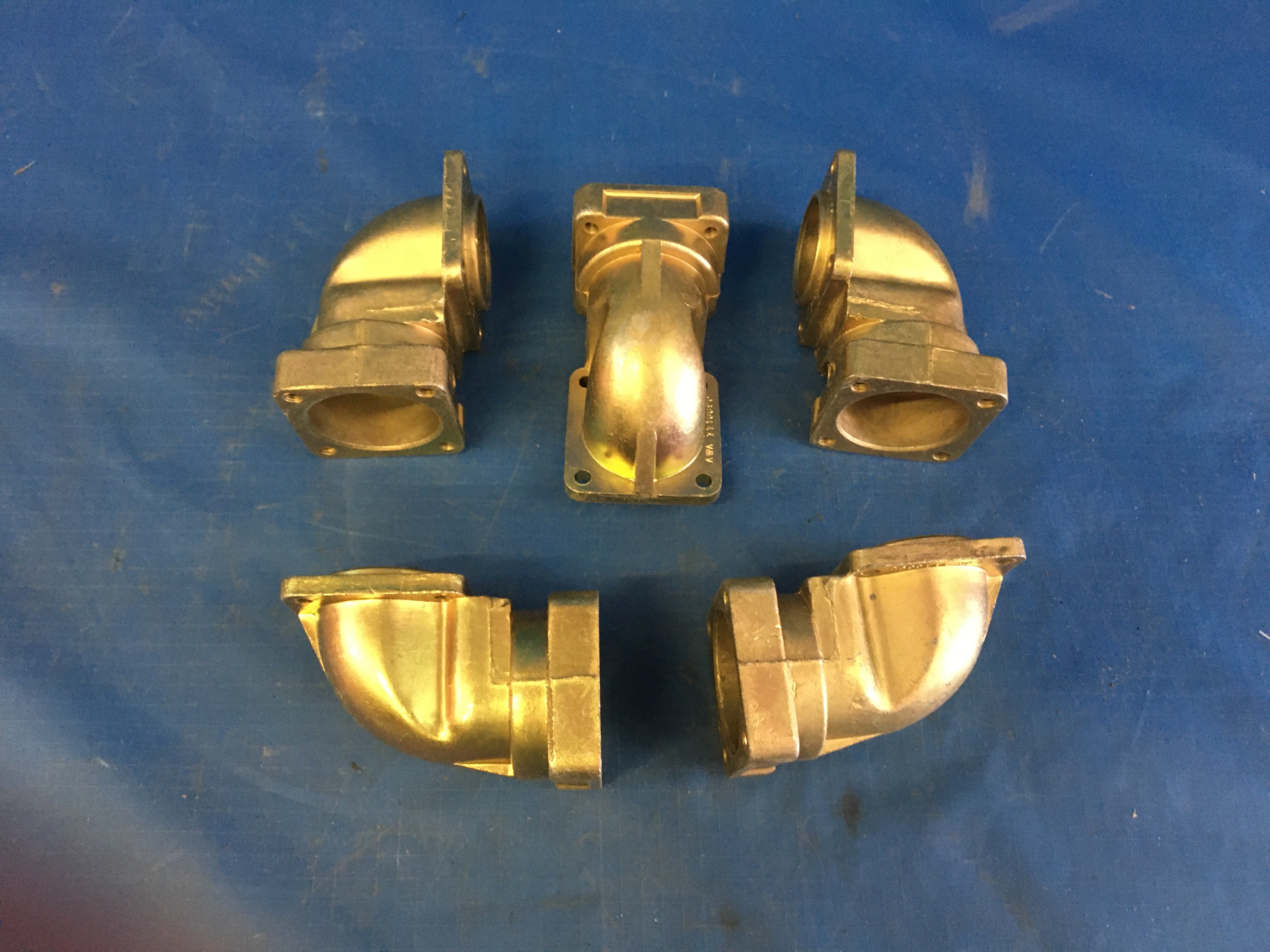

(5) Honeywell 7716690 Electrical Connector Backshell NSN:5935-00-647-2092

Please fill out the form below for a price quote and availability on this item.

Electrical Connector Backshell

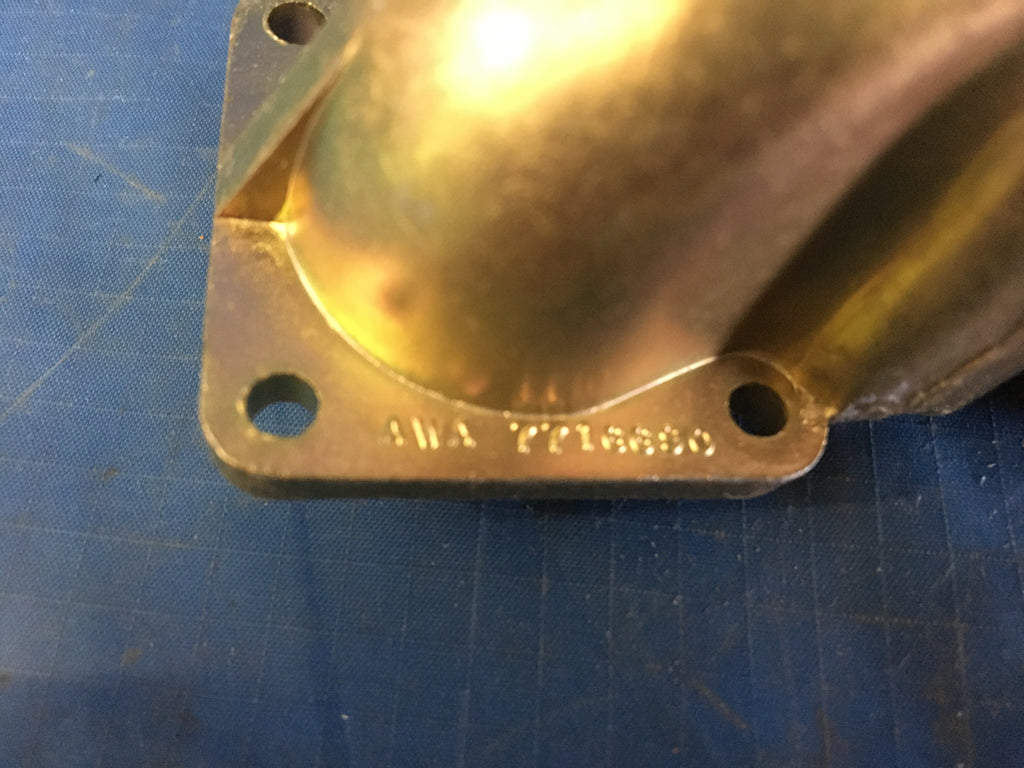

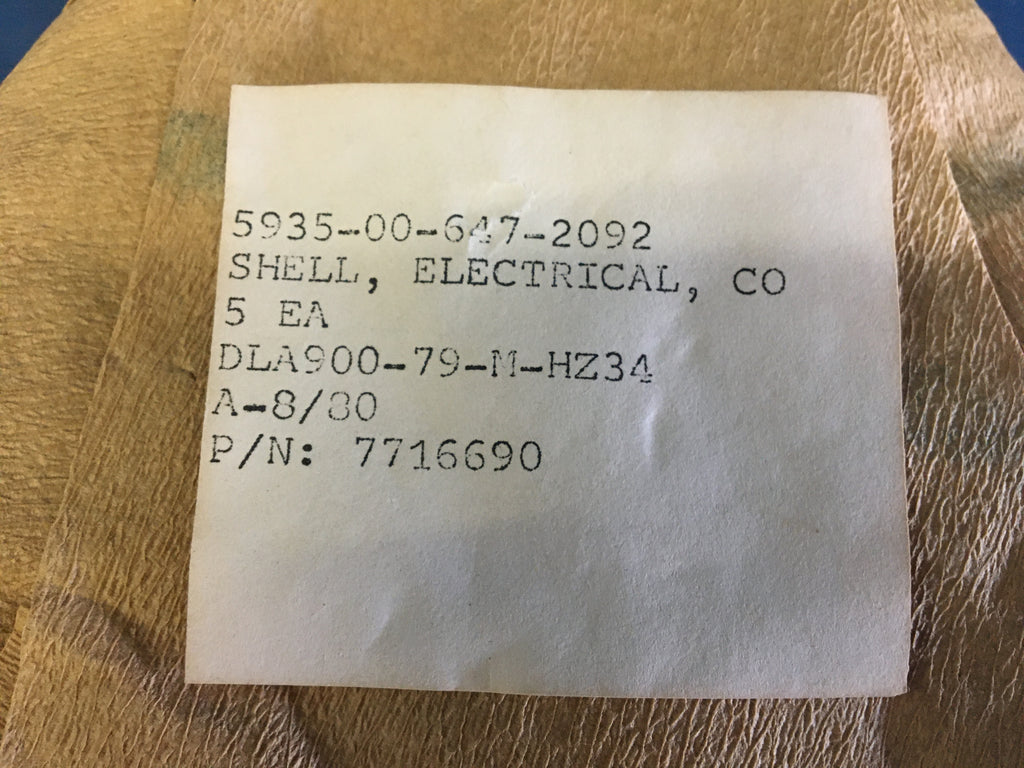

NSN: 5935-00-647-2092 | Model: 7716690
ITAR Registered seal

An item specifically designed to be placed around that portion of a connector, receptable, electrical or connector, plug, electrical which contains the facilities for attaching wires or cables. it may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. it may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Replacements:
  • 5935-00-647-2092 replaces 5935-00-699-6837
  • 5935-00-647-2092 replaces 5935-01-152-5351
Schedule B & Trade:
  • Schedule B: 8548900100 (NAICS 335999)

    Electrical parts of machinery or apparatus not specified or included elsewhere in chapter 85

  • SITC: 77813

    Waste and scrap of primary cells, primary batteries and electric accumulators; spent primary cells, etc; electric parts of mach or apps, nes

  • End Use: 20005
NSN Properties and Flags
NATO Stock Number
5935-00-647-2092
DEMIL
NO
Thread Class
2b
Thread Direction
Right-hand
Overall Length
2.750 inches
Center To Center Distance Between Mounting Facilities Parallel To Length
Between 1.245 inches and 1.255 inches
Center To Center Distance Between Mounting Facilities Parallel To Width
Between 1.245 inches and 1.255 inches
Overall Width
1.625 inches
Unthreaded Mounting Hole Diameter
Between 0.175 inches and 0.182 inches
Flange Length
1.625 inches
Distance From Centerline To Cable End
1.125 inches

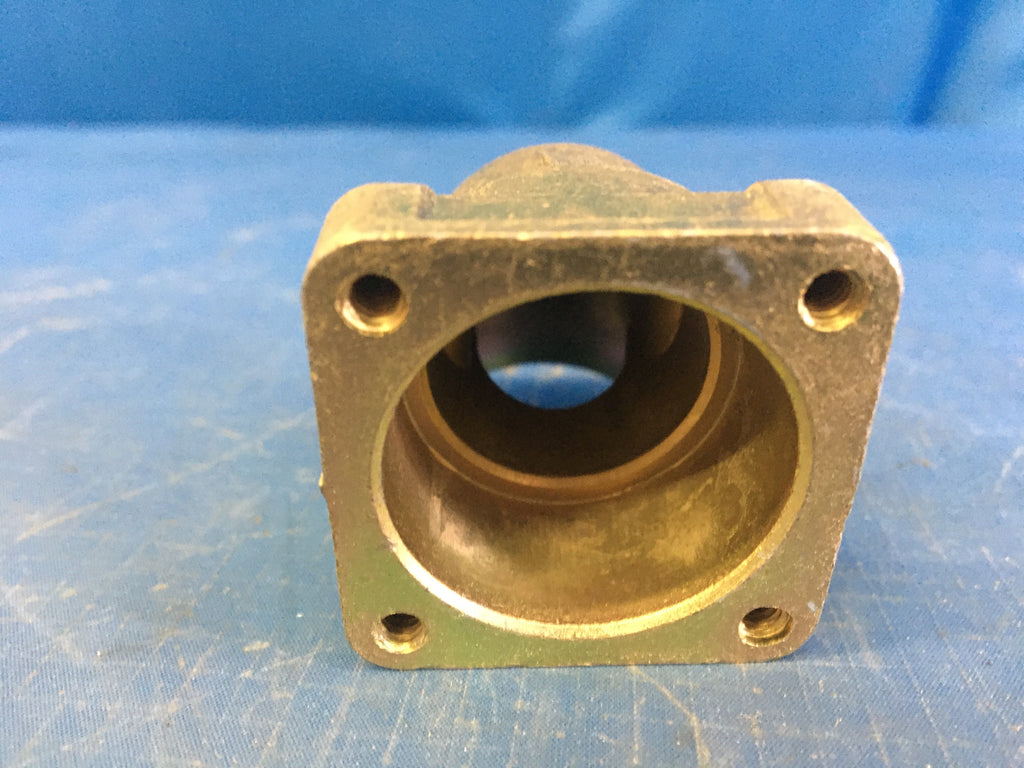

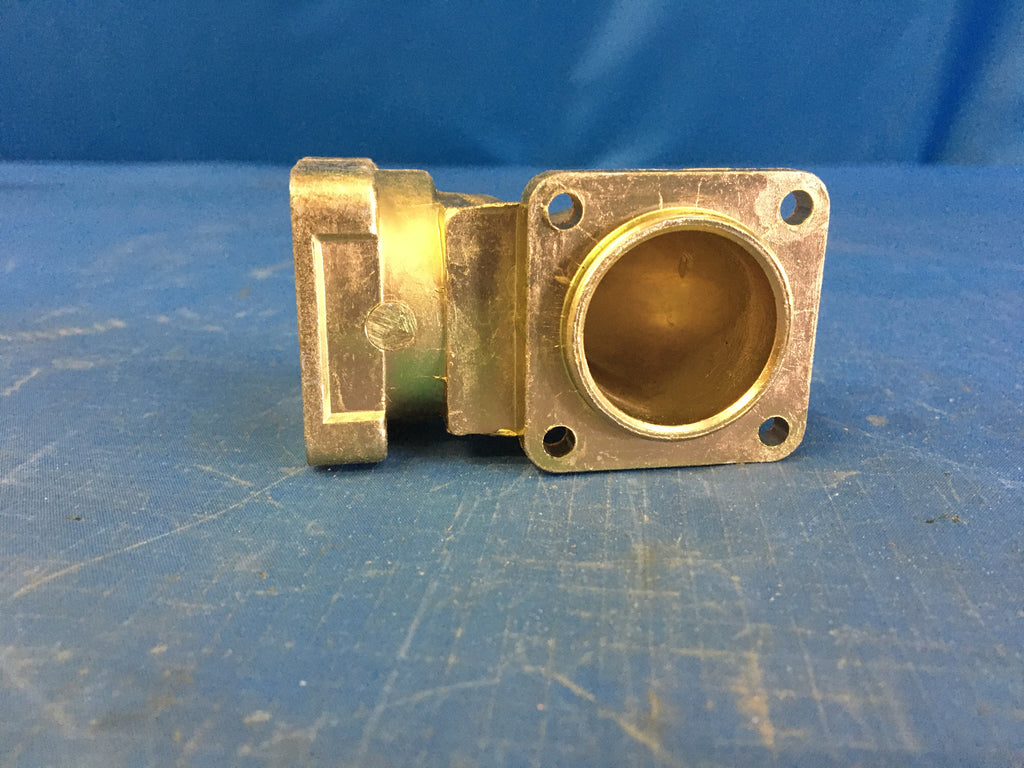

Mounting Facility Type And Quantity
4 threaded hole and 4 unthreaded hole
Thread Size
0.164 inches
Material
Aluminum alloy
Surface Treatment
Cadmium
Style Designator
Angle shape solid type
Surface Treatment
Cadmium
Thread Series Designator
Unc

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
