Coiltron Electrical Coil NSN:5950-00-773-2786 P/N:50102

Please fill out the form below for a price quote and availability on this item.

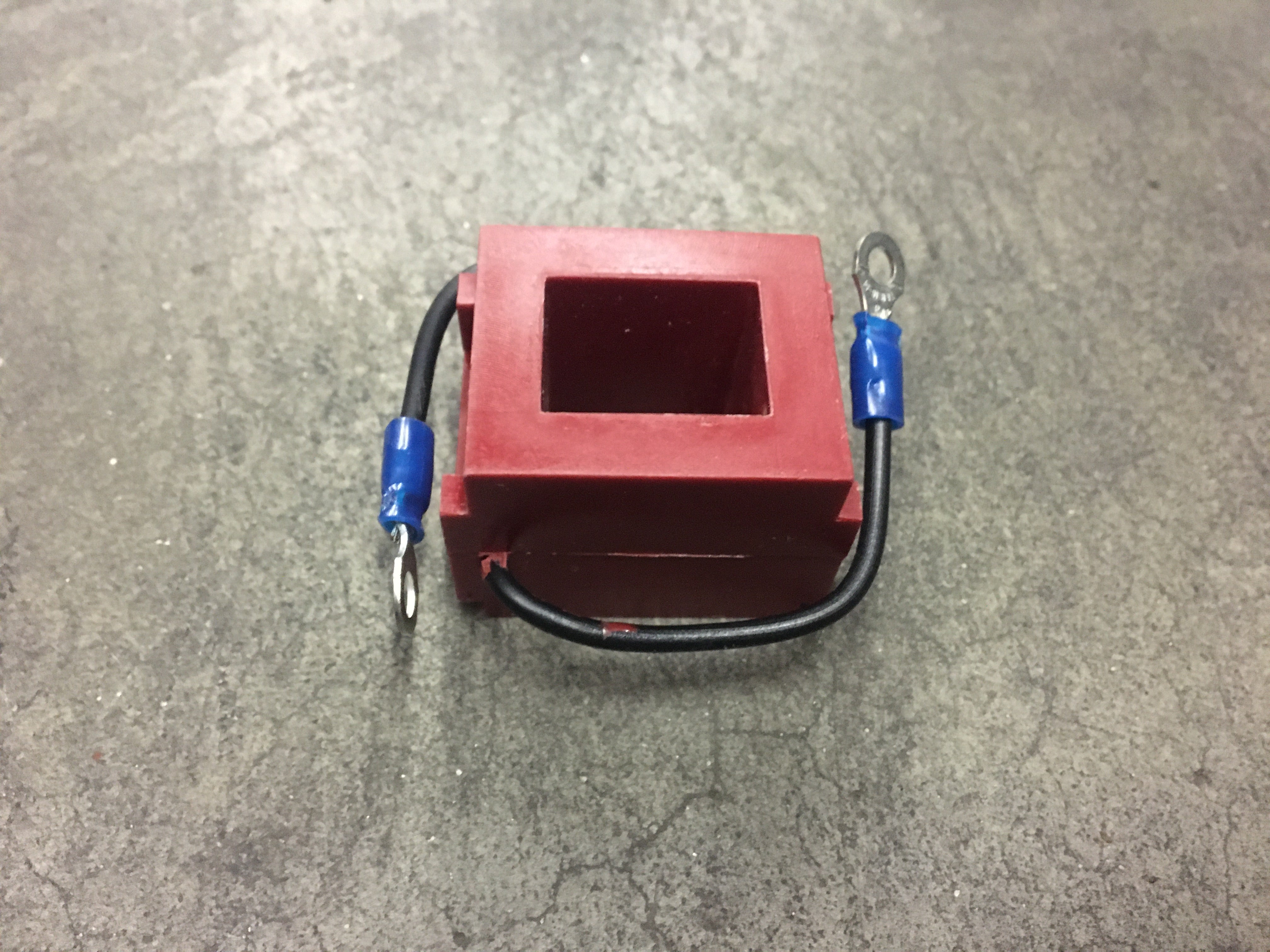

Electrical Coil

NSN: 5950-00-773-2786  Model: 9-1545-1  P/N:50102
ITAR Registered seal

An item generally consisting of one or more turns of wire or similar conductive material (in special cases it may be considered as a partial turn). It is specifically designed to concentrate magnetic flux generated by the flow of an electric current, to induce in itself an electromotive force, and to add or subtract inductive reluctance in a circuit. It may include tuning devices, integral resistors and capacitors; however, excludes filter (as modified). For coils wound on resistors which are designed to be inserted into the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see suppressor, parasitic..

NSN Properties and Flags
NATO Stock Number
5950-00-773-2786
DEMIL
Yes - ITAR Controlled
Reliability Indicator
Not established
Winding Quantity
1 single component
Inclosure Type
Fully enclosed
Rating Method
Electrical single component single winding
Dc Resistance Rating In Ohms
53.400 single component single winding
Terminal Type And Quantity
2 wire lead w/lug



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
