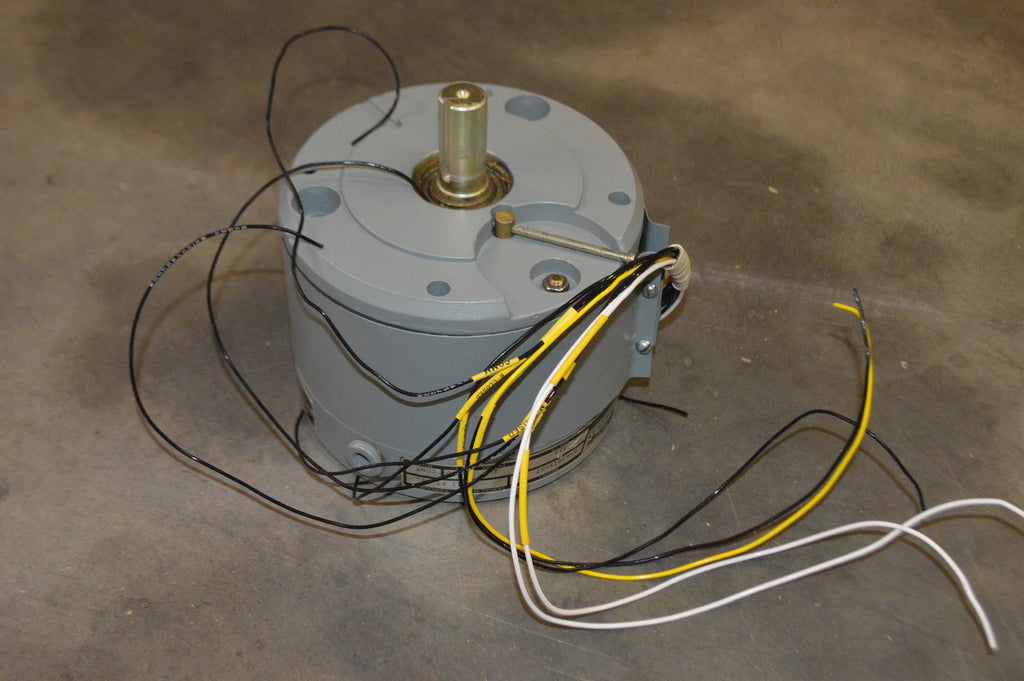

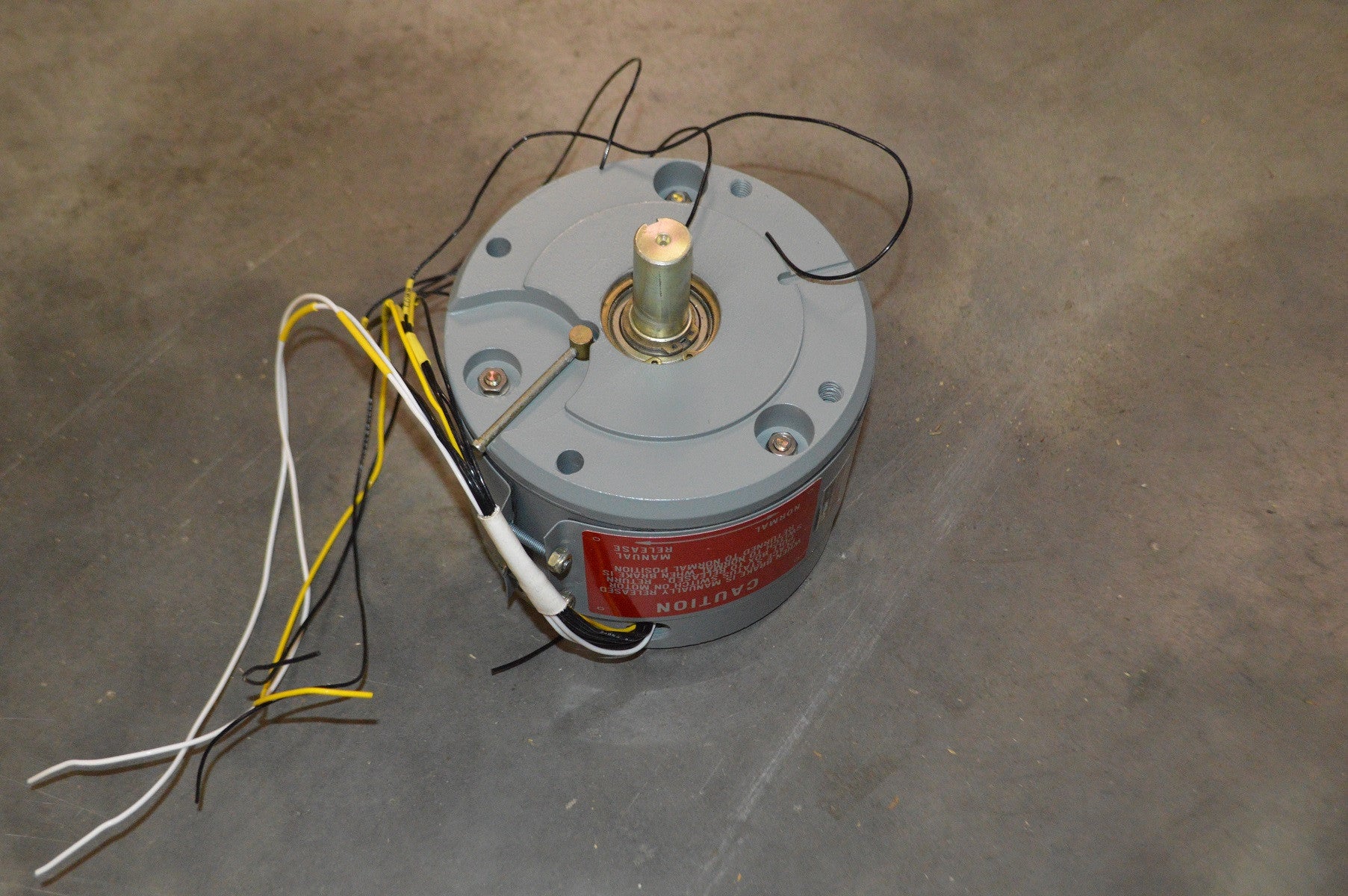

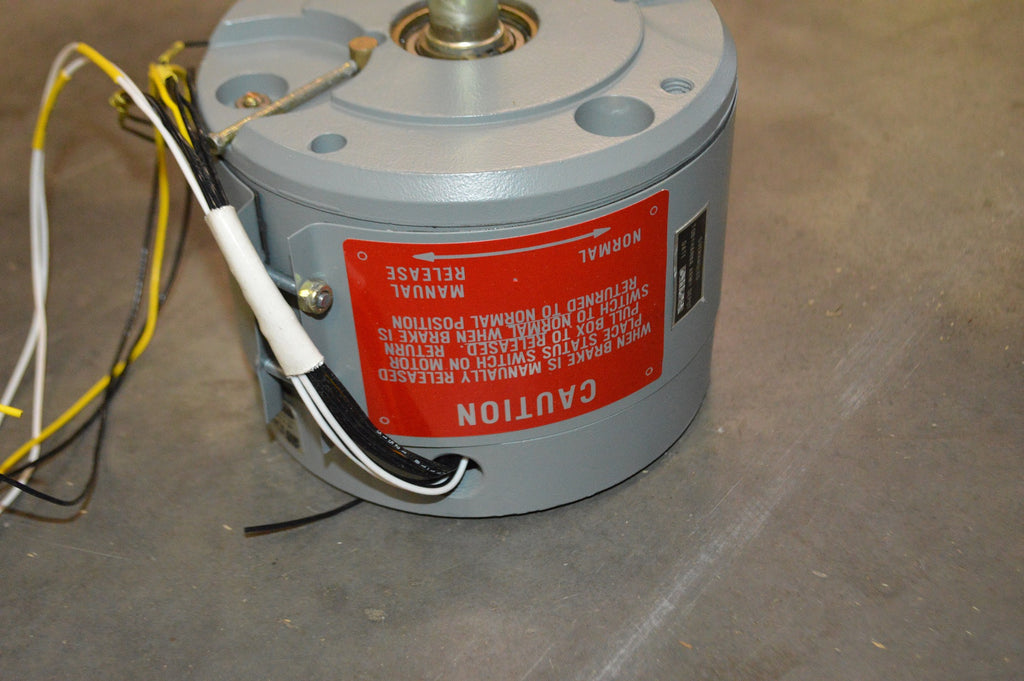

Electric Brake NSN:6110-01-070-3780 P/N:sm-a-949325-1

Please fill out the form below for a price quote and availability on this item.

Electric Brake-A device operated by electro-mechanical means which functions to bring to rest mechanically and/or hold at rest a load.

Electrical Section Inclosure Type: Watertight
Actuator Rated Ambient Temp: 40.0 deg fahrenheit minimum and 150.0 deg fahrenheit maximum
Actuator Type: Magnetic
Brake Type: Disk
Braking Surface Area: 5.000 square inches nominal
Current Type: Ac
Frequency In Hertz: 60.0
Mounting Hole Spacing And Location: 2 holes for 3/8 studs thru brake to motor lg 5.340 in. lg located on (top area) centerline on spacing of 30 degrees;2 holes for 3/8-16 nc bolts located on (bottom area) centerline spacing of 30 degrees
Overall Diameter: 6.880 inches nominal
Overall Length: 5.340 inches nominal
Phase: Single
Wheel Usage Feature: Not included
Torque Load Rating: 15.000 foot-pounds

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
