ELBOW

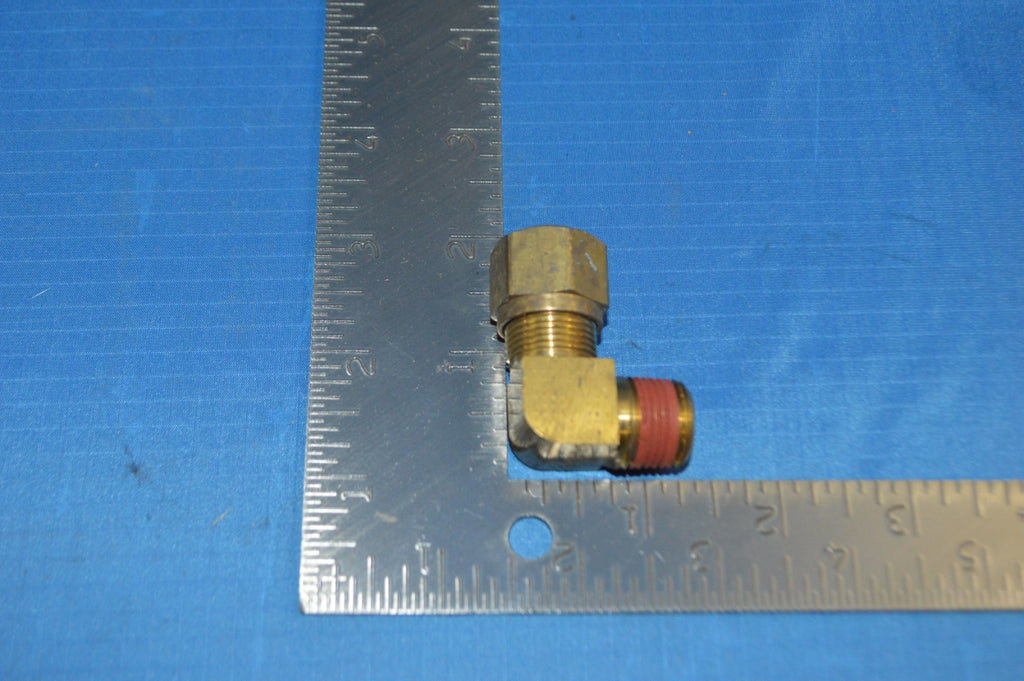

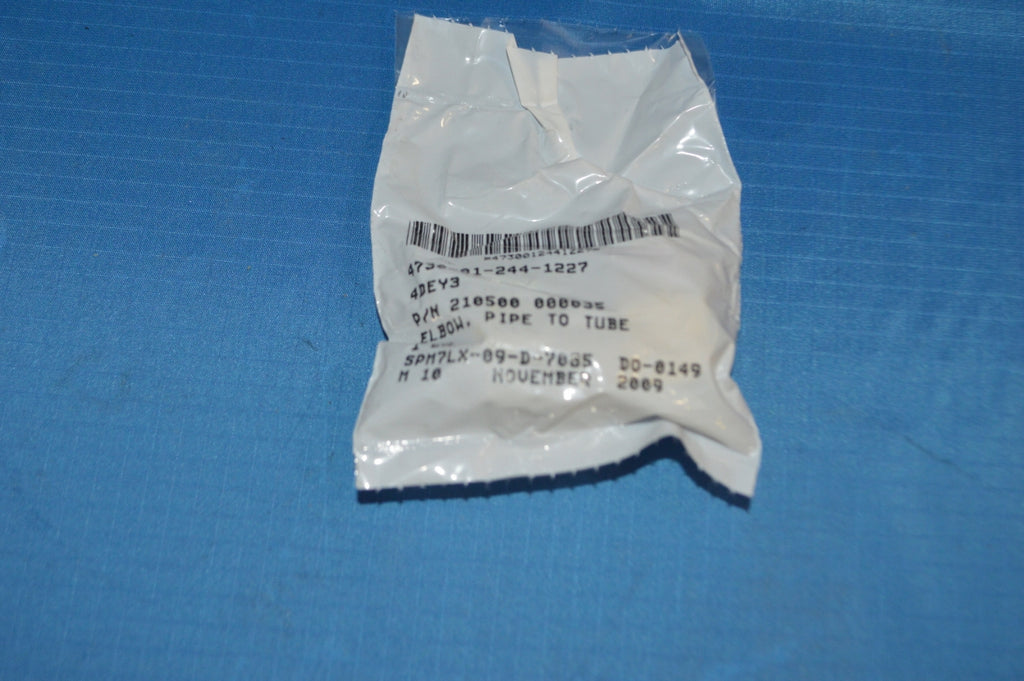

Elbow, Pipe To Tube P/N: 210500 000035 NSN: 4730-01-244-1227

Regular price $4.75

A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. one connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. the other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. it may have side or heel inlet(s). see also elbow, pipe; elbow, tube; and connector, multiple, fluid pressure line.



MRC: Requirement Name: Requirement:
NAME ITEM NAME ELBOW,PIPE TO TUBE
AAJD THREAD CLASS 2A 1ST END
AHNC CONNECTION STYLE B66 FLARELESS 1ST END
AHNC CONNECTION STYLE B67B PLAIN 2ND END
AHSJ LEG LENGTH 1.500 INCHES NOMINAL 1ST END
AHSJ LEG LENGTH 0.990 INCHES NOMINAL 2ND END
AWLS CONNECTION TYPE THREADED EXTERNAL TUBE 1ST END
AWLS CONNECTION TYPE THREADED EXTERNAL PIPE 2ND END
CMLP THREAD QUANTITY PER INCH 20 1ST END
CQJX NOMINAL THREAD SIZE 0.687 INCHES 1ST END
CQJX NOMINAL THREAD SIZE 0.375 INCHES 2ND END
CQRB SEAT ANGLE 12.0 DEGREES 1ST END
CRFY FLOW ANGLE 90.0 DEGREES
CWFD NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES 1ST END
FEAT SPECIAL FEATURES FOR USE W/NYLON TUBING,THD SEALANT ON 2ND END
MATT MATERIAL COPPER ALLOY OVERALL
PRPY PROPRIETARY CHARACTERISTICS PACS
THSD THREAD SERIES DESIGNATOR UN 1ST END
THSD THREAD SERIES DESIGNATOR NPT 2ND END
