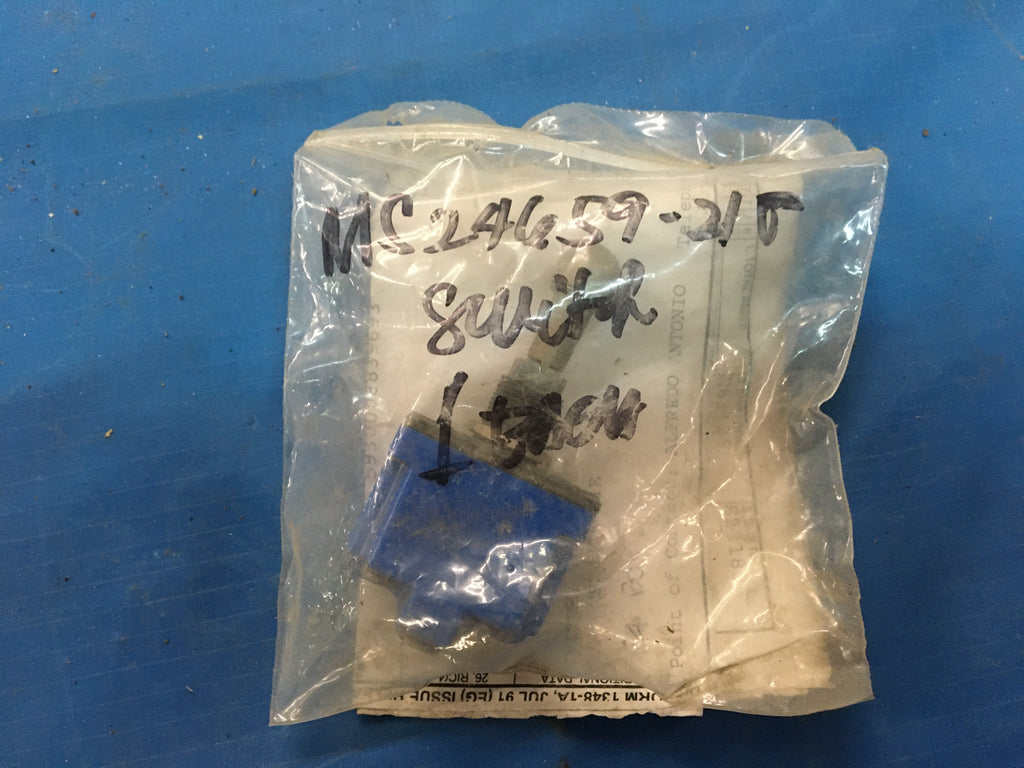

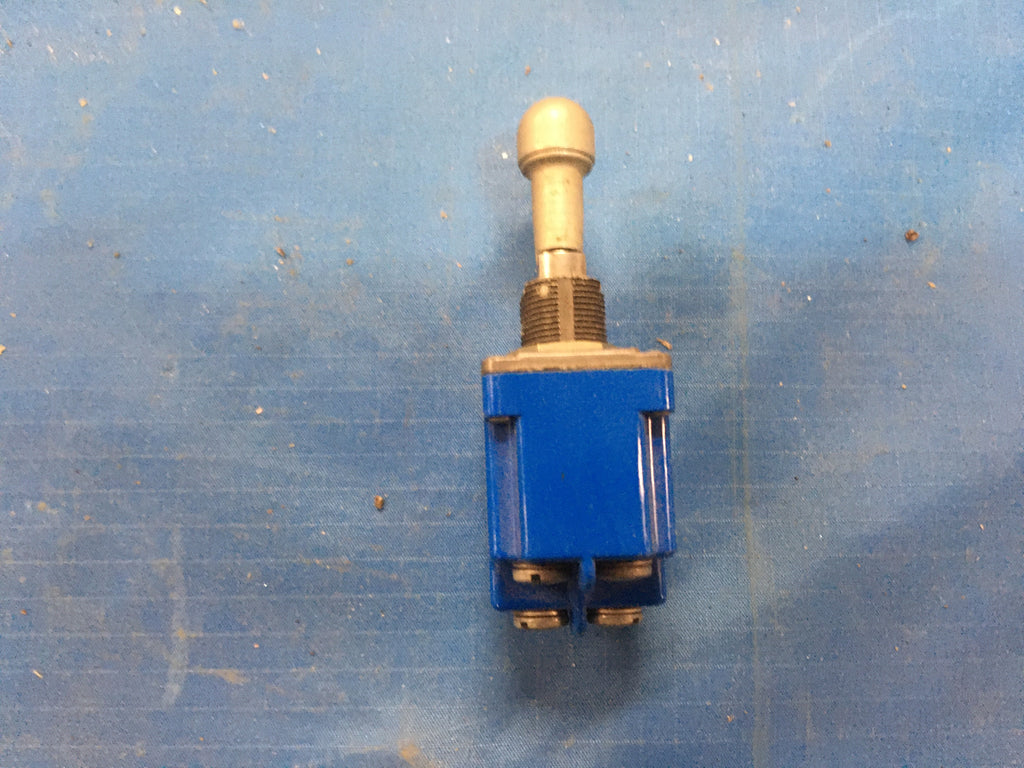

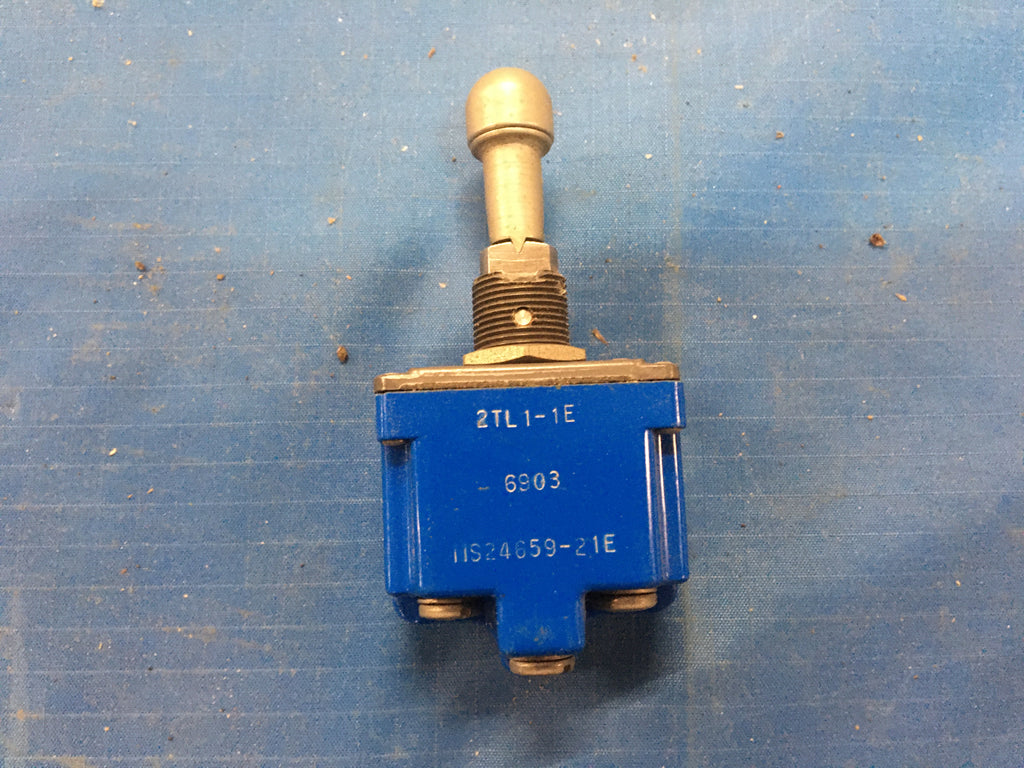

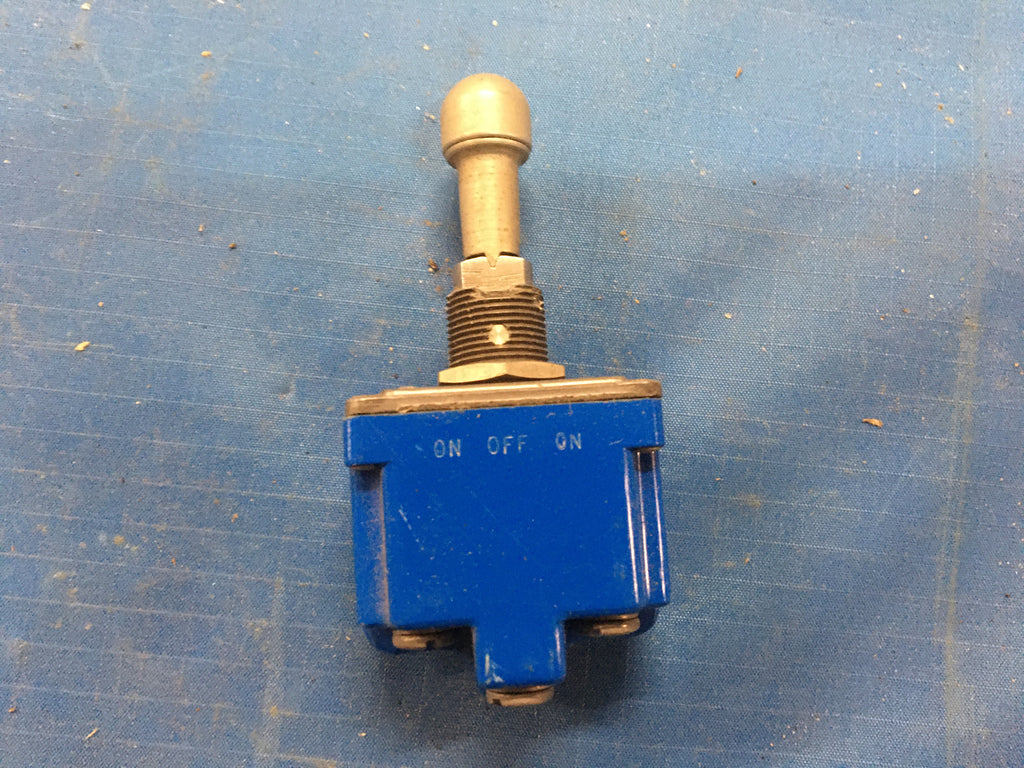

Eaton Cutler Hammer MS24659-21E Toggle Switch, On Off On, 20Amp, NSN:5930-00-883-9693

Regular price $32.99

Toggle Switch

NSN: 5930-00-883-9693 | Model: MS24659-21E
ITAR Registered seal

A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes switch, lever; switch, rotary; switch, knife; switch, sensitive; and switch, box.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Style
Bushing mount
Hazardous Locations/environmental Protection
Overall Length
1.340 inches
Overall Height
2.980 inches
Overall Width
0.910 inches
Bushing Length
0.470 inches
Body Length
1.340 inches
Body Width
0.910 inches
Body Height
1.100 inches
Actuator Style
Actuator Diameter
0.420 inches
Actuator Height
1.140 inches
Actuator Position-action Relationship
Up position maintained and down position maintained and center position maintained
Actuator Position-locking Relationship
Up position no locking action and down position no locking action and center position locked in
Maximum Voltage Rating In Volts
115.0 ac and 28.0 dc
Inclosure Type
Fully enclosed
Mounting Method
Threaded bushing
Features Provided
Actuator seal
Thready Qty Per Inch (tpi)
Thread Size
0.469 inches
Nonpile-up Contact Arrangement
2 pole, double throw, three positions maintained single switch unit
Contact Load Current Rating At Maximum Rated Voltage
20.000 amperes restive dc and 15.000 amperes inductive dc and 7.000 amperes lamp dc and 15.000 amperes restive ac and 15.000 amperes inductive ac and 4.000 amperes lamp ac
Test Data Document
81349-MIL-S-3950 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Terminal Type And Quantity

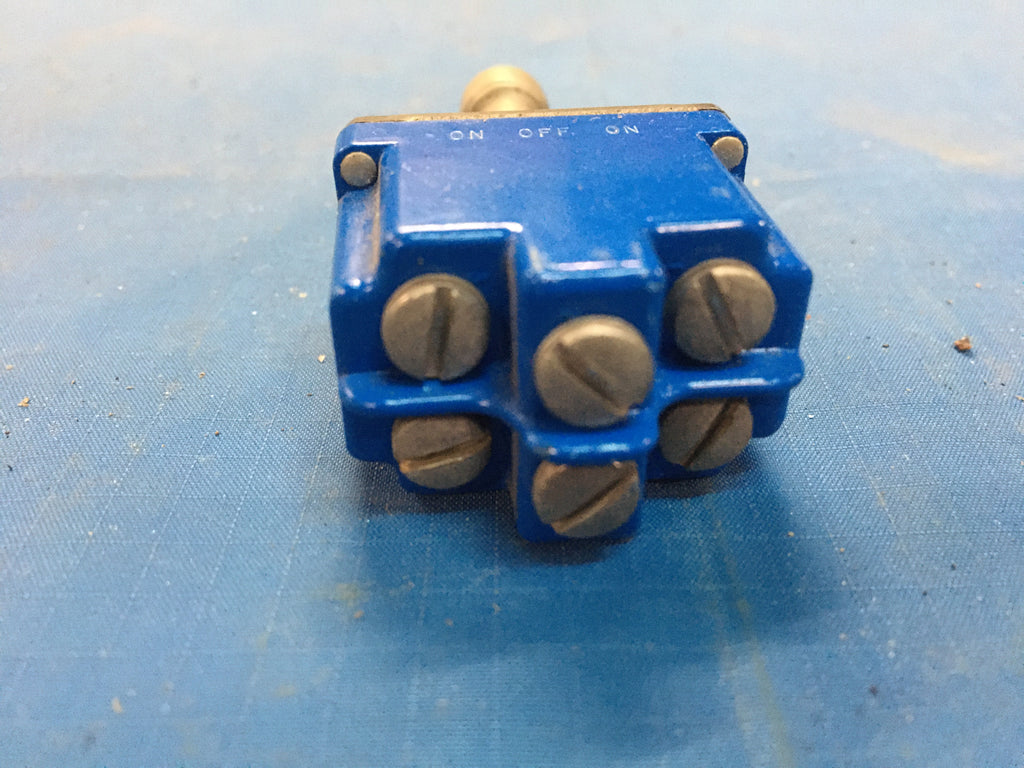

6 screw
Specification Data
96906-MS24659 government standard
