Tyco 202C663-51 Dust & Moisture Seal Boot NSN:5975-01-260-7152

Please fill out the form below for a price quote and availability on this item.

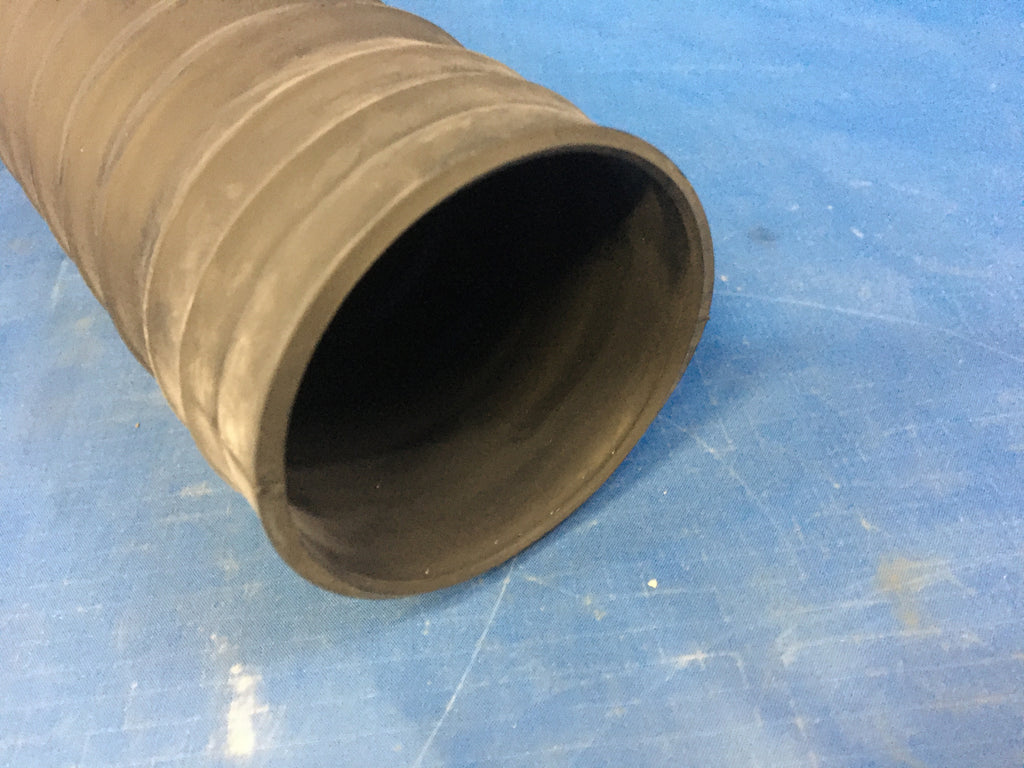

Dust And Moisture Seal Boot

NSN: 5975-01-260-7152 | Model: 202C663-51
ITAR Registered seal

A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes bellows, protection; grommet, nonmetallic; and cable nipple, electrical. See also cap, electrical; cap, protective, dust and moisture seal; and shield, electrical connector.

NSN Properties and Flags
NATO Stock Number
5975-01-260-7152
DEMIL
Yes - ITAR Controlled
Overall Height
9.300 inches
Body Outside Diameter
2.450 inches
Base Outside Diameter
2.250 inches
Opening Inside Diameter
2.250 inches
Style Designator
Thru-hole



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
