DINGS DYNAMICS
NSN 6110-01-070-3780

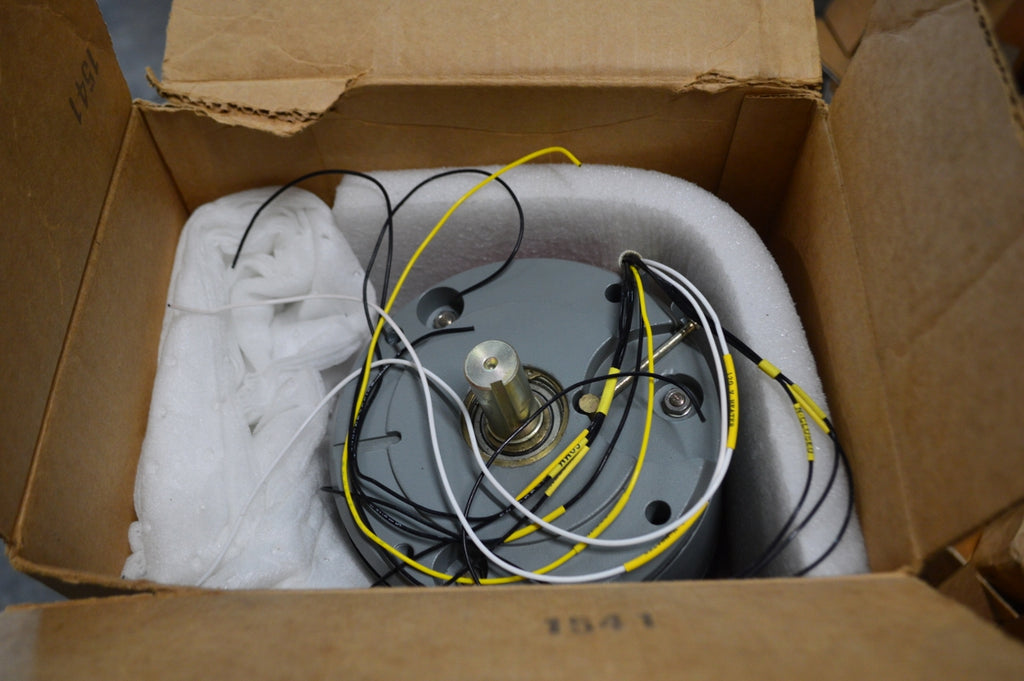

Dings Dynamics Double C Face Electric Brake ,120V,1PH,15Ft/Lb P/N:SM-A-949325-1 NSN:6110-01-070-3780
Regular price
$599.99
Electric Brake
SKU: 6110010703780 | Model: SM-A-949325-1NSN 6110-01-070-3780
Specifications from the Manufacturer

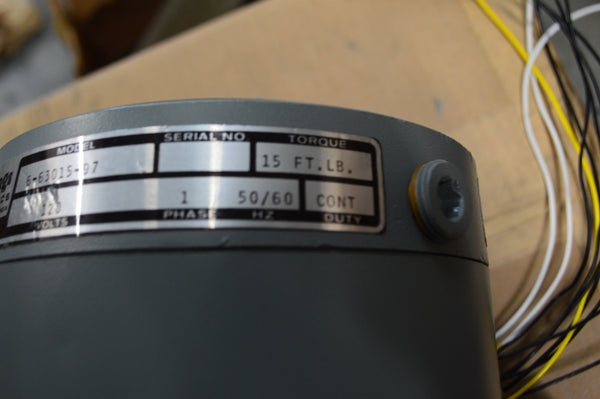

Torque Load Rating:
15.000 foot-pounds
Overall Length:
5.340 inches nominal
Current Type:
Ac
Overall Diameter:
6.880 inches nominal
Brake Type:
Disk
Mounting Hole Spacing And Location:
2 holes for 3/8 studs thru brake to motor lg 5.340 in. lg located on (top area) centerline on spacing of 30 degrees;2 holes for 3/8-16 nc bolts located on (bottom area) centerline spacing of 30 degrees
Wheel Usage Feature:
Not included
Braking Surface Area:
5.000 square inches nominal
Actuator Type:
Magnetic
Actuator Rated Ambient Temp:
40.0 deg fahrenheit minimum and 150.0 deg fahrenheit maximum
Electrical Section Inclosure Type:
Watertight
Phase:
Single
Frequency In Hertz:
60.0
