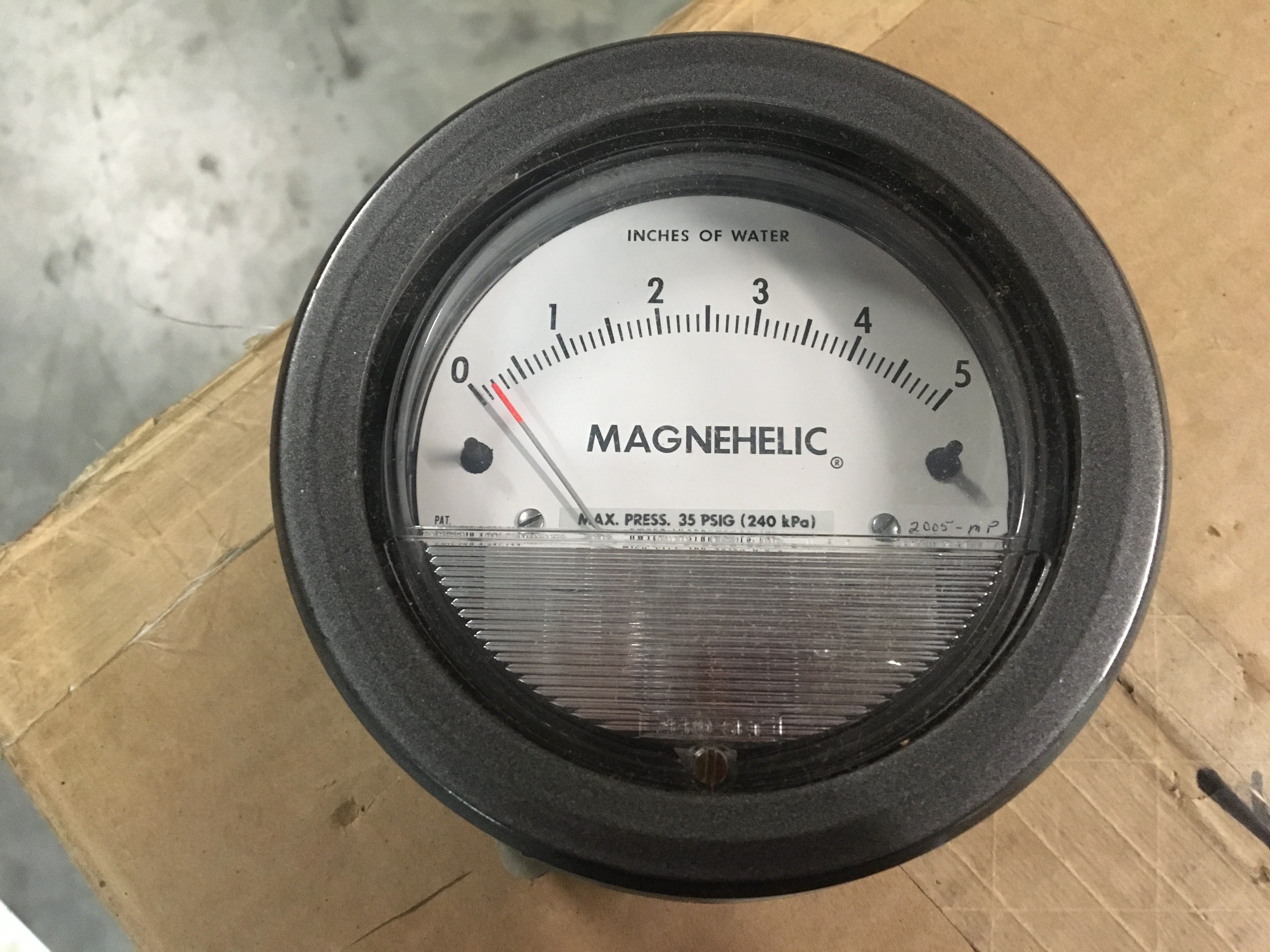

MagnehelicDifferential Cage NSN:6685-00-557-8622 P/N:2005MP

Please fill out the form below for a price quote and availability on this item.

Differential Cage- An instrument designed to measure air, gas, fluid, and vapor differential by means of a pressure sensitive element(s) which transmits energy, by direct linkage, to the indicating pointer of a scale calibrated to units of pressure. the scale may indicate in units of pressure, quantity, or flow.

Actuating Element Material: Silicone resin
Actuation Type: Diaphragm
Adjustability: Adjustable
Bezel Type: Thread
Bolt Circle Diameter: 4.125 inches nominal
Case Material: Aluminum, die cast
Case Surface Treatment: Baked dark gray hammerioid
Connection Location: Back and side
Connection Quantity: 4
Connection Size: 0.125 in. npt dia
Connector Type Vent: Not provided
Connection Type: Internal
Dial Size: 4 in. dia
Graduation Unit: 1.0 inches
Material: Aluminum
Mounting Hole Diameter: 0.250 inches nominal
Mounting Hole Quantity: 3
Mounting Method: Flush and surface
Overall Depth: 2.188 inches nominal
Overall Diameter: 4.750 inches nominal
Scale Accuracy: 2 pct entire range
Scale Inscription/background Color: Black markings on white background
Scale Name: Differential pressure
Scale Smallest Increment: 0.1 inches
Scale Type: Single
Scale Range: +0.0 to 5.0 inches of water
Pointer Color: Aluminum
Pointer Type: Indicating
Protective Crystal Material: Plastic
Special Features: Baked dark gray hammerioid; red tip pointer
