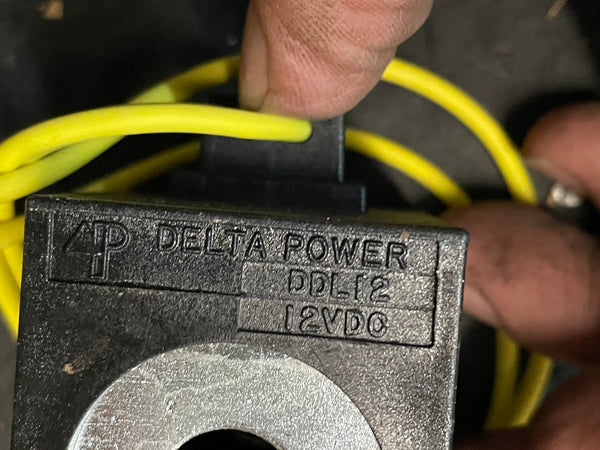

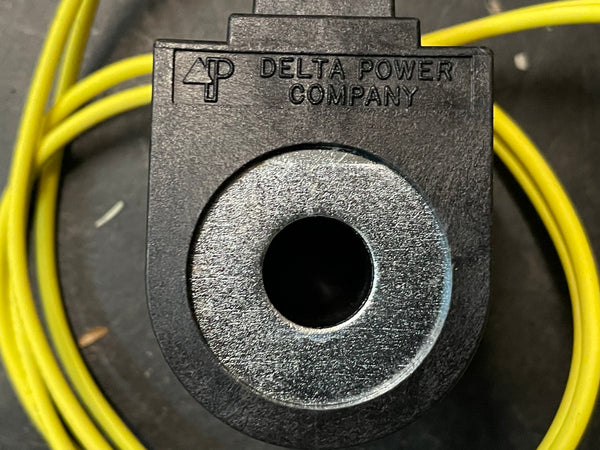

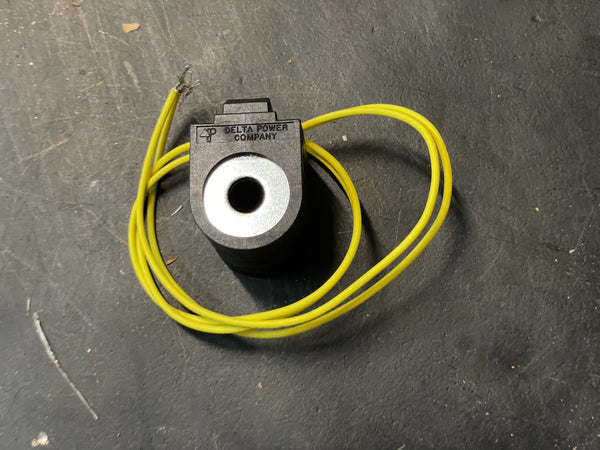

Delta Power 07-3077 Electrical Coil NSN:5950-01-432-5548

Regular price $149.99

Electrical Coil

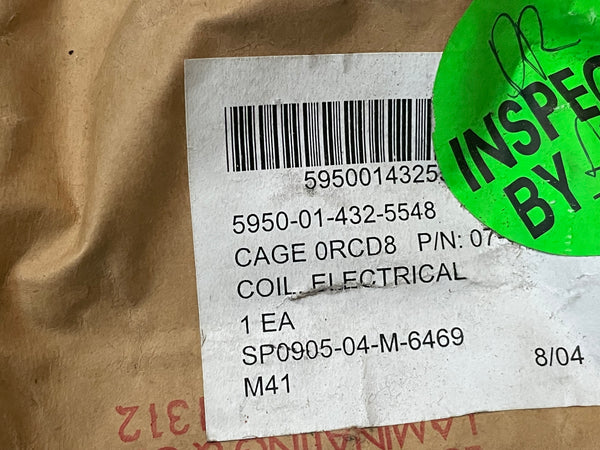

NSN:5950-01-432-5548  Model:07-3077
ITAR Registered seal

An item generally consisting of one or more turns of wire or similar conductive material (in special cases it may be considered as a partial turn). It is specifically designed to concentrate magnetic flux generated by the flow of an electric current, to induce in itself an electromotive force, and to add or subtract inductive reactance in a circuit. It may include tuning devices, integral resistors and capacitors; however, excludes filter (as modified). For coils wound on resistors which are designed to be inserted into the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see suppressor, parasitic..

NSN Properties and Flags
NATO Stock Number
Winding Operating Voltage
12.00 dc pounds per hour wet single component single winding
Terminal Type And Quantity

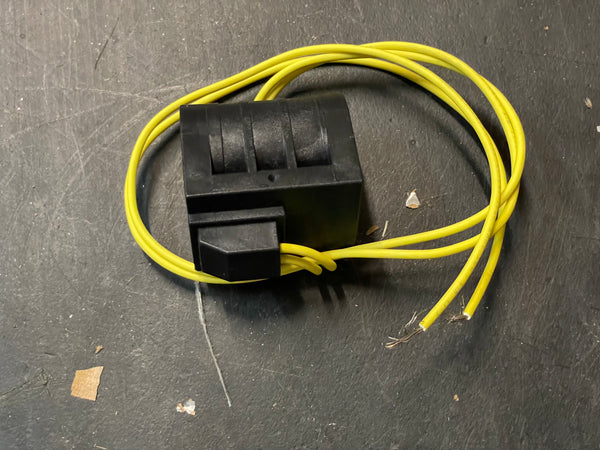

2 wire lead
