DAYTON

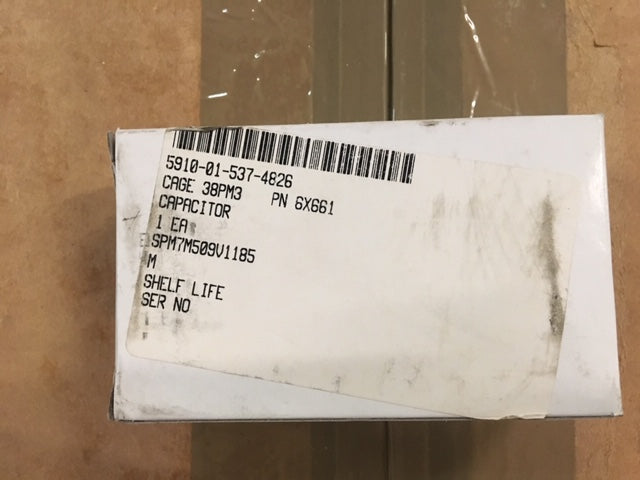

NSN 5910-01-537-4826

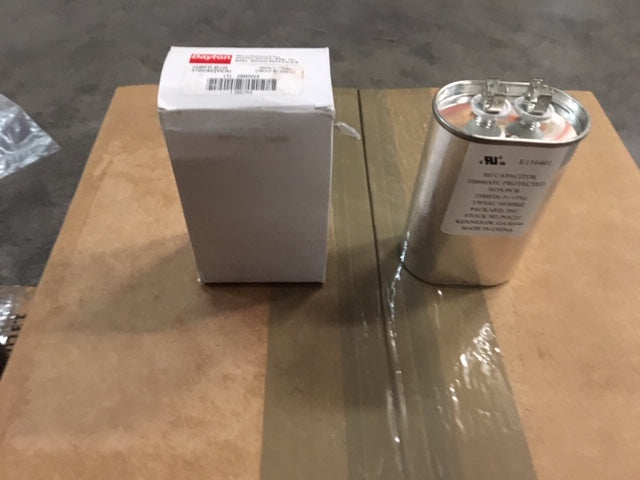

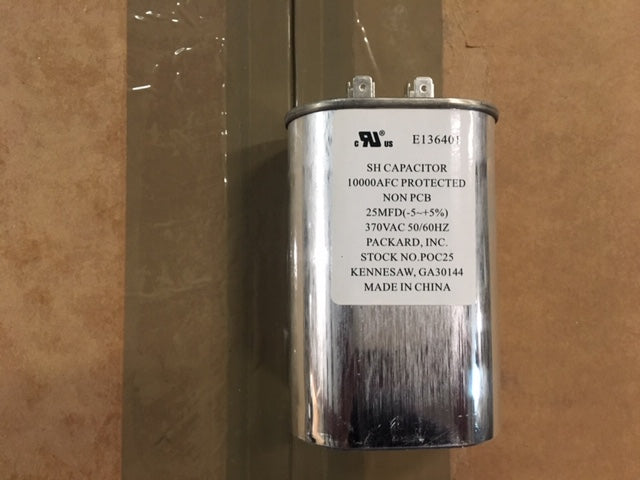

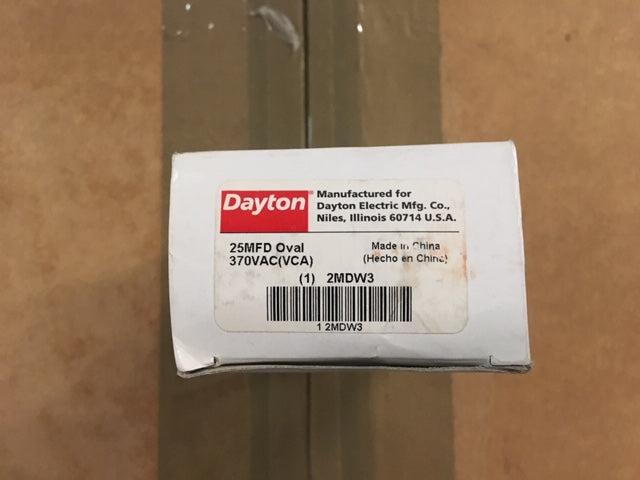

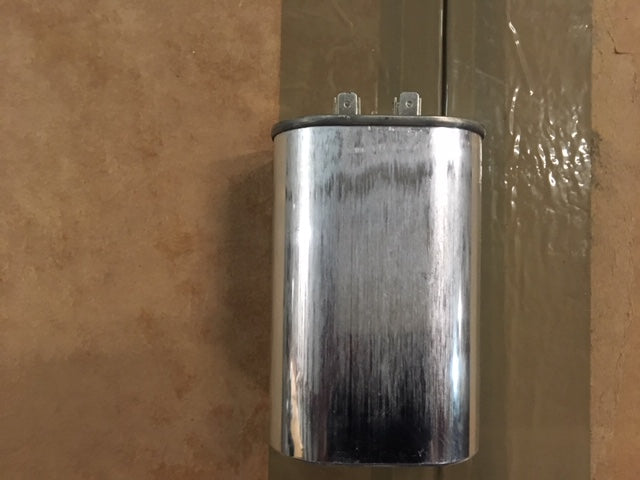

DAYTON 2MDW3 OVAL Motor Run Capacitor 25 Microfarad Rating 370VAC Voltage
Regular price
$7.99
Fixed Metallized Paper Capacitor
SKU: 5910015374826 | Model: 6X661NSN 5910-01-537-4826
Specifications from the Manufacturer
Body Style:
W/o mtg facilities, terminal(s) on one surface
Terminal Length:
0.410 inches nominal
Body Length:
2.880 inches maximum
Body Width:
2.910 inches nominal
Body Height:
1.910 inches nominal
Center To Center Distance Between Terminals Parallel To Width:
0.812 inches nominal
Terminal Diameter:
0.750 inches nominal
Section Quantity:
2
Capacitance Value Per Section:
25.000 microfarads all sections

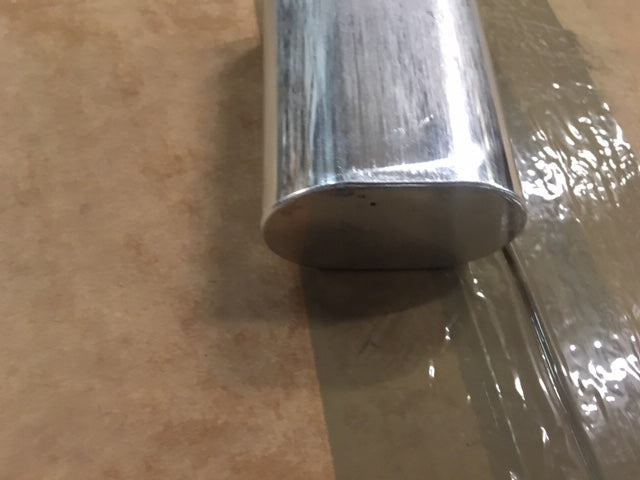

Case Material:
Metal
Case Insulation Material:
Plastic
Part Name Assigned By Controlling Agency:
Capacitor,motor run

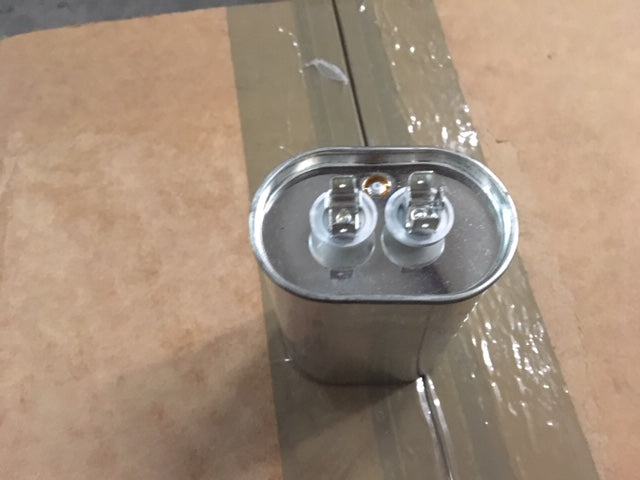

Terminal Type And Quantity:
2 quick disconnect, male, four blade
DAYTON 2MDW3 OVAL Motor Run Capacitor 25 Microfarad Rating 370VAC Voltage NEW
PRODUCT DETAILS:
With a temperature range of -40° to 185°F, these hermetically sealed capacitors can help improve the electrical performance of motors, air conditioners, and refrigeration equipment. Also suitable for blowers, fans, and pump motors. Each features an aluminum case and 1⁄4" male quick-connect terminals with plastic insulators. Protected to 10,000 AFC.
