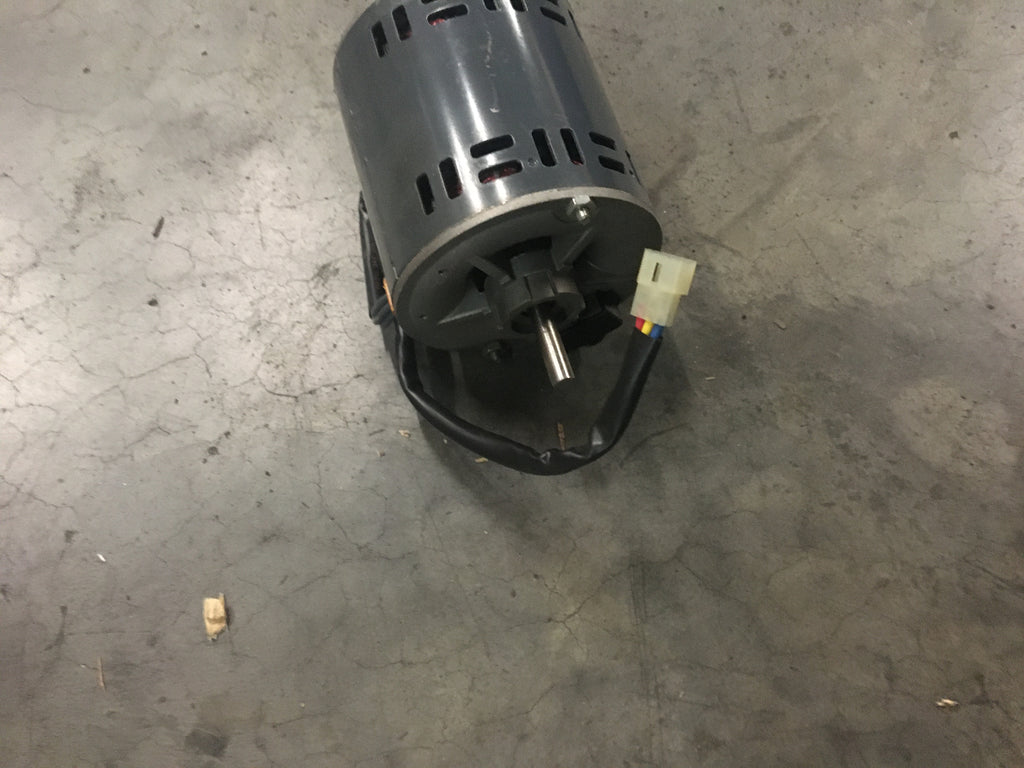

Teletype AC Motor Model:402402 NSN:6105-01-015-6237

Please fill out the form below for a price quote and availability on this item.

Alternating Current Motor

NSN: 6105-01-015-6237 | Model: 402402
ITAR Registered seal

TELETYPE CORP PART # 402402 ALTERNATING MOTOR NATIONAL STOCK #  6105-01-015-6237

ROTATION  CWLE  115 VOLTS  HZ 60/50   PH.I  HP.  1/20    RPM 3450/2850   AMPS  1.3/1.5  TIME RATING CONT. CLASS B-1  MADE BY:    MODEL #  KL-H330-AOL   BY  ROGGINS & MYERS INC.

NSN Properties and Flags
NATO Stock Number
6105-01-015-6237
DEMIL
Yes - ITAR Controlled
Overall Height
3.750 inches
Overall Length
7.188 inches
Overall Width
3.750 inches
Hole Diameter
0.138 inches second end
Hole Depth
0.312 inches second end
Shaft Diameter
0.3120 inches identical ends
Hole Center To Shaft End Distance
0.188 inches second end
Shaft Rotation Direction
Counterclockwise second end
Duty Cycle
Continuous
Inclosure Feature
Open protected
Specific Use
Teletype printer, model no. M-40
Winding Type
Induction-shaded pole
Mounting Method
Face
Mounting Facility Type And Quantity
4 threaded hole
Cooling Method
Ambient air
Current Rating Method
Load
Inclosure Specificationification
Commercial
Features Provided
Thermal protective device and horizontal mounting position and vertical mounting position
Power Rating
0.0500 horsepower output
Length Of Shaft From Housing
1.000 inches second end
Mounting Facility Circle Diameter
2.875 inches
Rotor Speed Rating In Rpm
3450.0 single full load
Current Rating In Amps
1.600 single input
Connection Type And Voltage Rating In Volts
115.0 line to neutral single input
Shaft End Characteristic
A13 single style second end
Phase
Single input
Frequency In Hertz
50.0 input or 60.0 input
Terminal Type And Quantity
1 connector, plug and 3 wire lead
