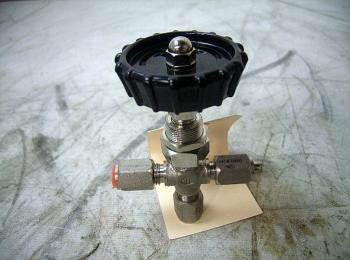

Cross Valve

NSN: 4820-00-226-4515 | Model: DM328-4GT
ITAR Registered seal

A valve with two connections on the run and a third and sometimes fourth connection at 90 degree (1.5708 radians) angl (s) to the run. The flow is controlled by the action of a stem which lifts a disk perpendicularly off of the center axis of its seat.

NSN Properties and Flags
NATO Stock Number
Thread Class
3a all ends
Thread Direction
Right-hand all ends
Flow Control Device
Bonnet Type
Inside screw
Bonnet Attachment Method
Maximum Operating Temp
70.0 degrees fahrenheit single response
Connection Style
Flareless (tube) all ends
Valve Operation Method
Connection Type
Threaded external tube all ends
Features Provided
Bonnet packing
Maximum Operating Pressure
3000.0 pounds per square inch single response
Thread Size
0.437 inches all ends
Seat Angle
12.0 degrees all ends
Nickel alloy
Media For Which Designed
Steam single response
Style Designator
Thread Series Designator
Unf all ends
Furnished Items And Quantity
1 ferrule
