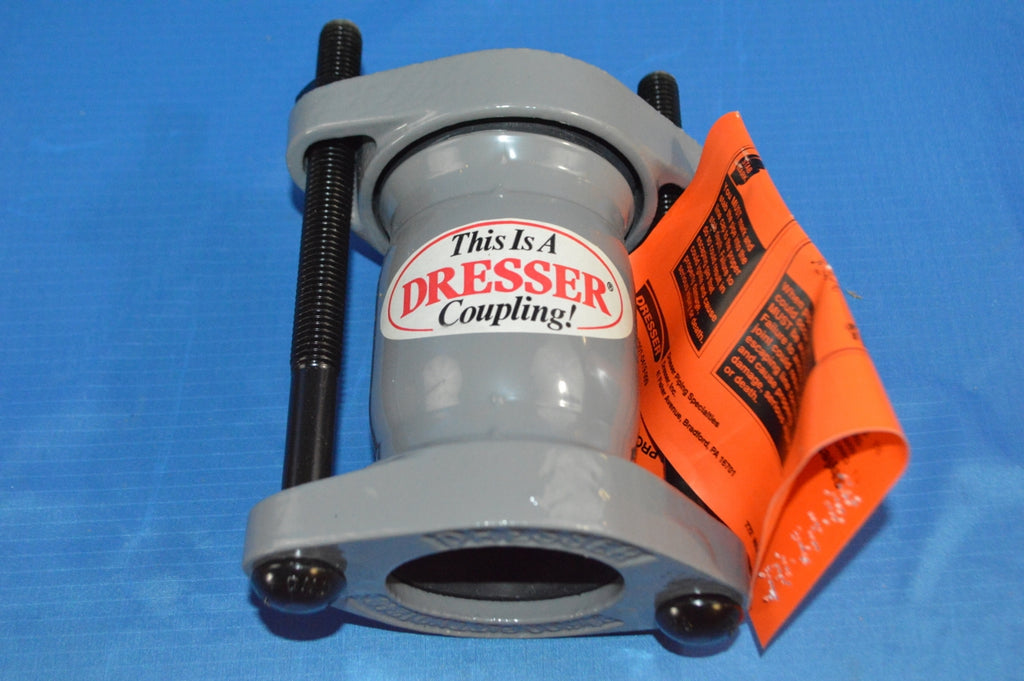

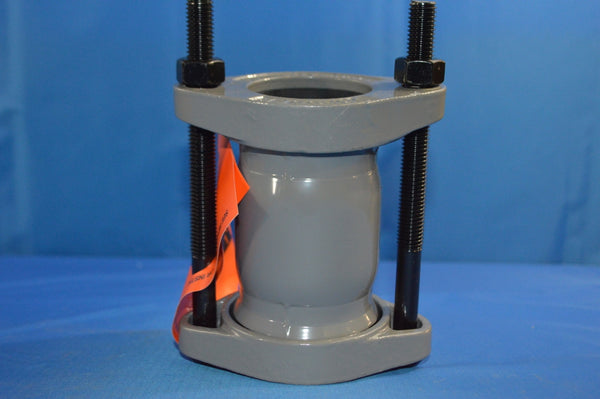

2" Dresser Coupling Pipe P/N: 0038-0011-011 NSN: 4730-002-88-8431

Regular price $23.00

Coupling Pipe P/N: 0038-0011-011 NSN: 4730-002-88-8431

A straight fitting 12 inches (304 mm) long or under having the same or different type pipe connection of the same size on both ends. it is designed to join a pipe or pipe fitting to another pipe or pipe fitting. excludes fittings with threaded external connections on both ends. see also nipple, pipe.

Connection Style: Socket w/ grove (pipe) all ends
Connection Type: Unthreaded internal pipe all ends
Furnished Items And Quantity: 2 bolt
Material: Steel overall
Maximum Operating Pressure: 1500.0 pounds per square inch single response
Media For Which Designed: Water-oil-gas single response
Nominal Pipe Size Accommodated: 2.000 inches all ends
Nominal Overall Length: 6.625 inches
Pipe Wall Thickness Designation For Which Designed: Schedule std all ends
Style Designator: Clamp type
