Raychem 360843-000 Connector Adapter NSN:5935-01-495-5741

Please fill out the form below for a price quote and availability on this item.

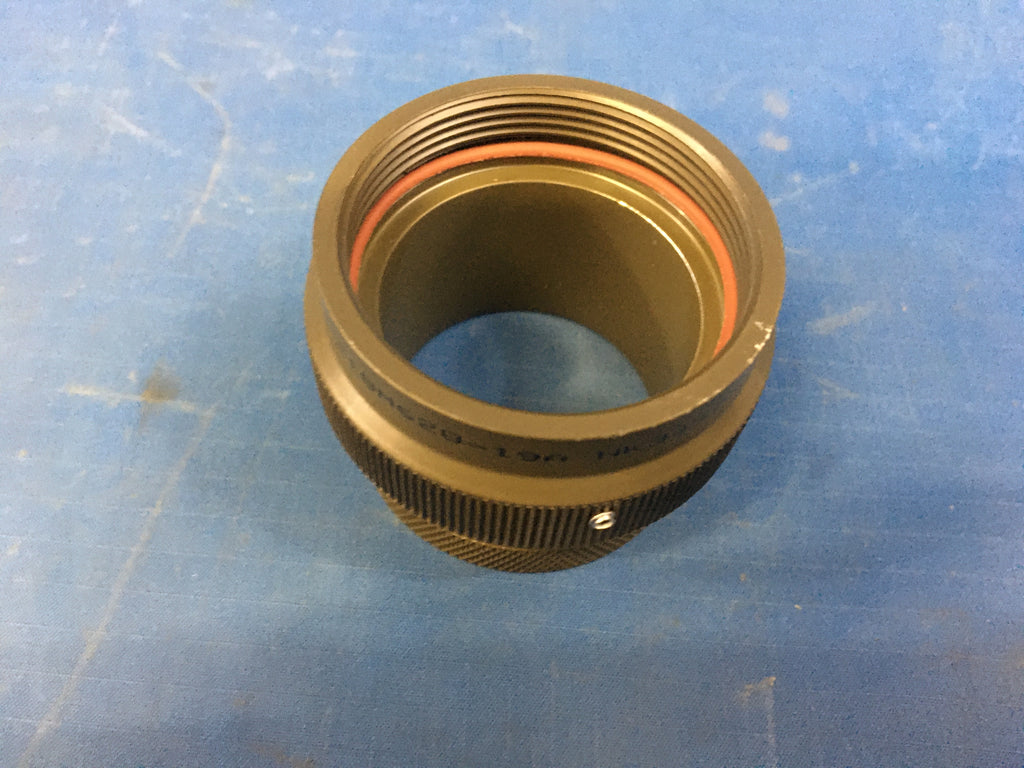

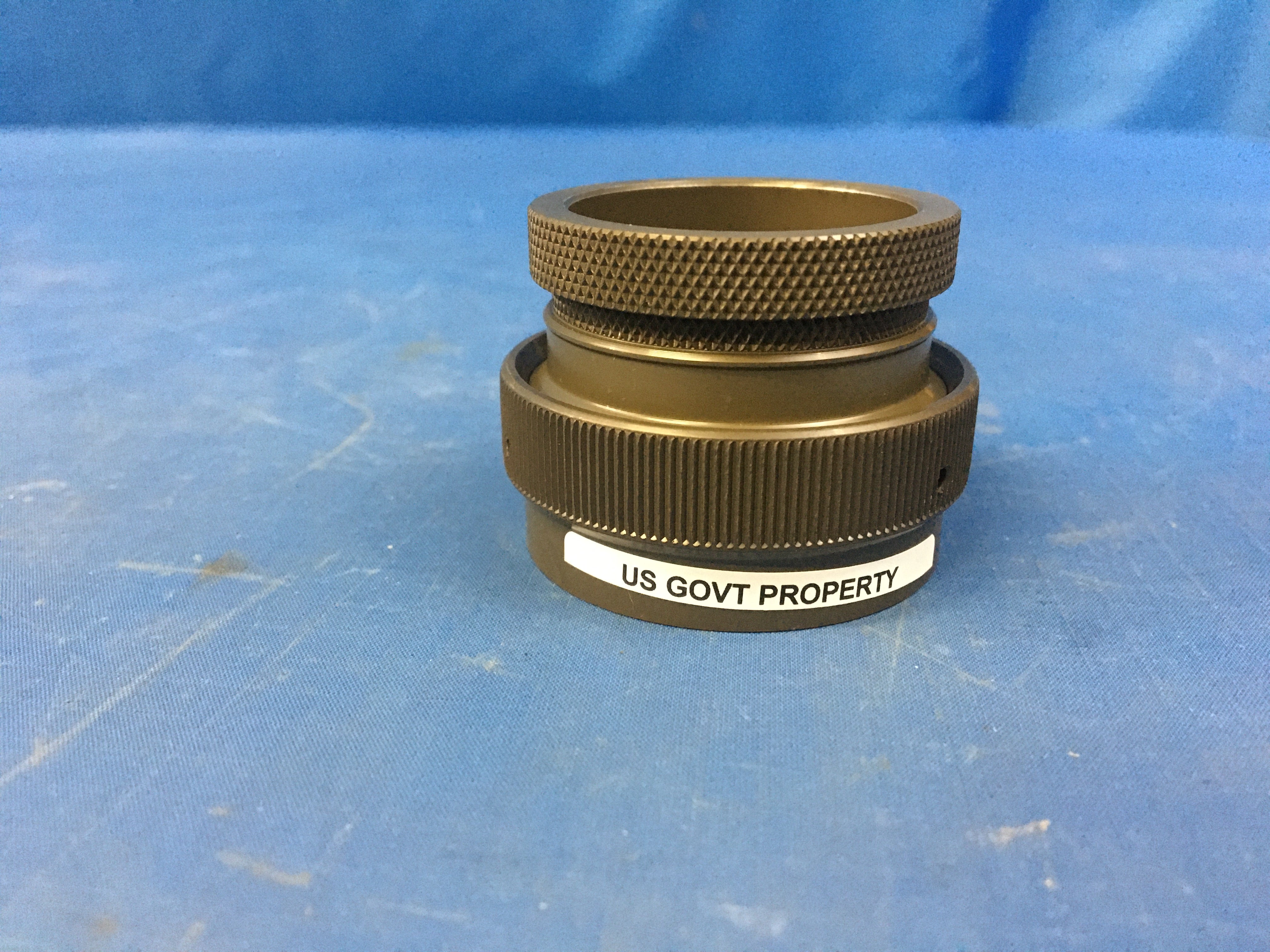

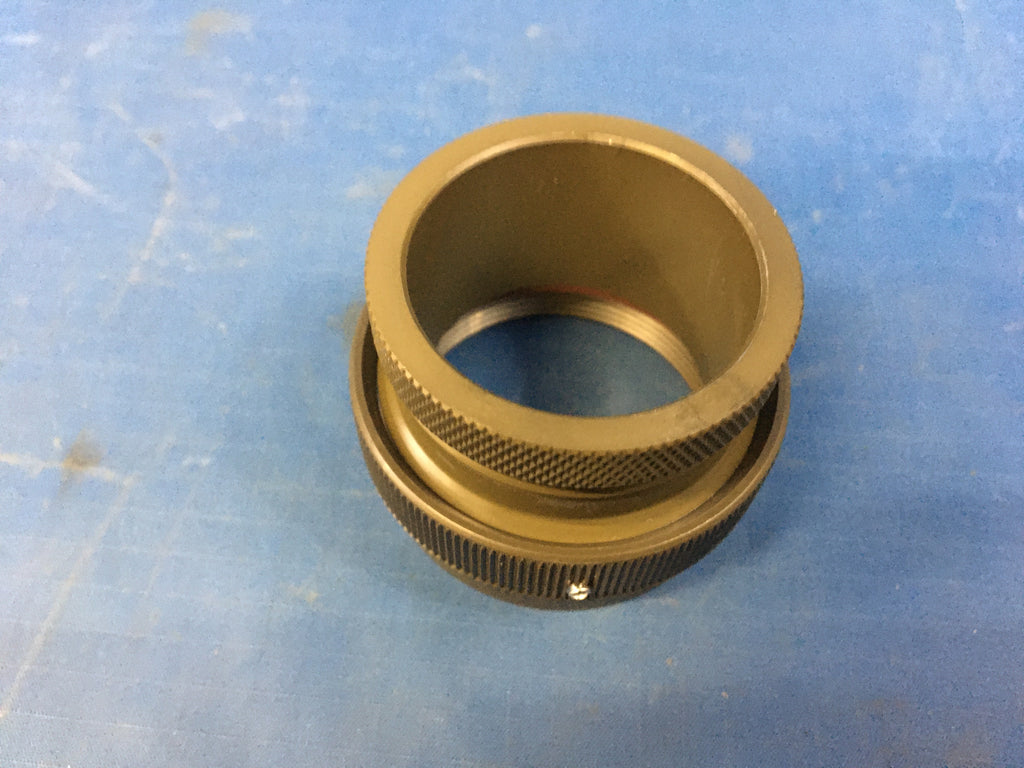

Connector Adapter

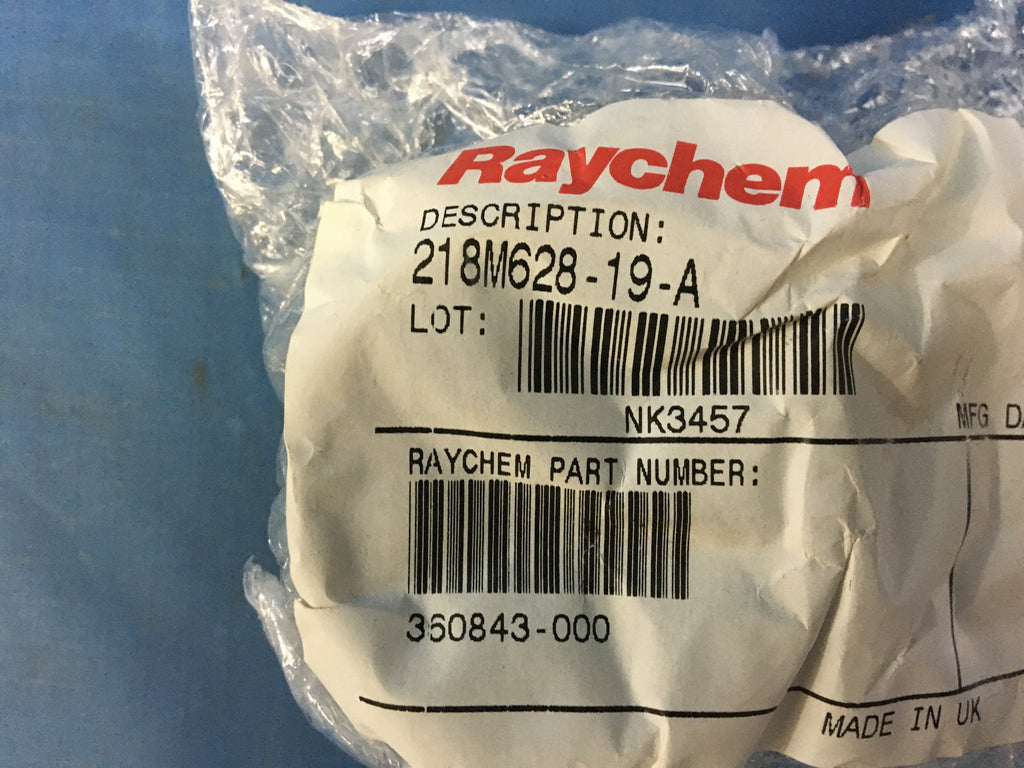

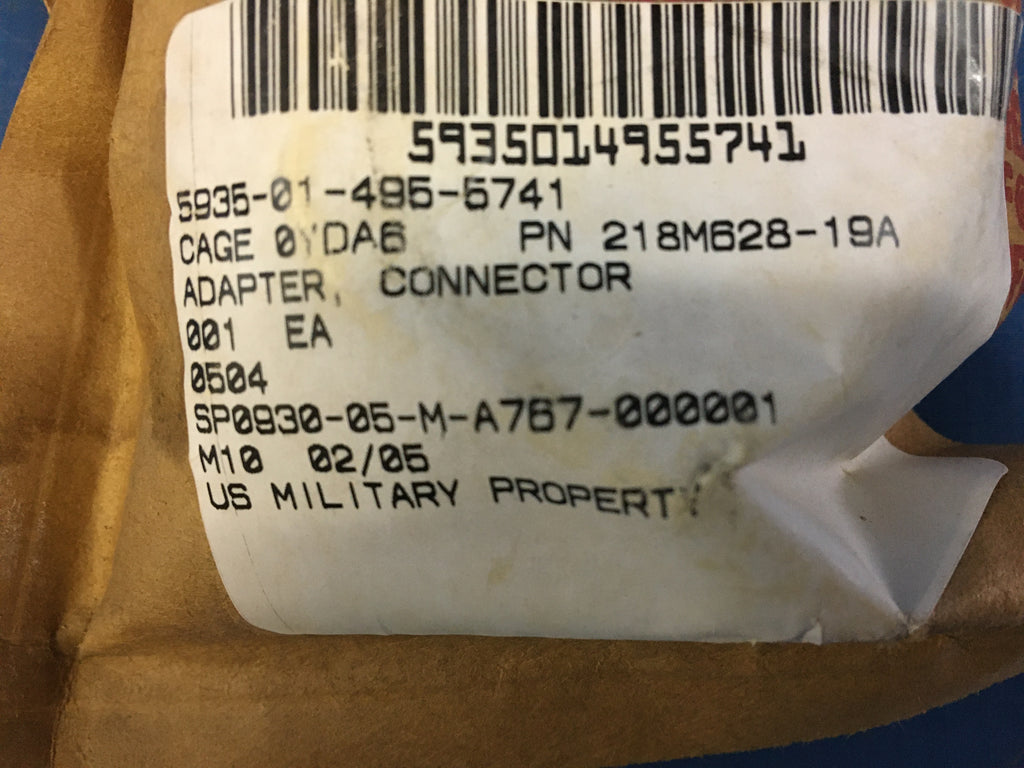

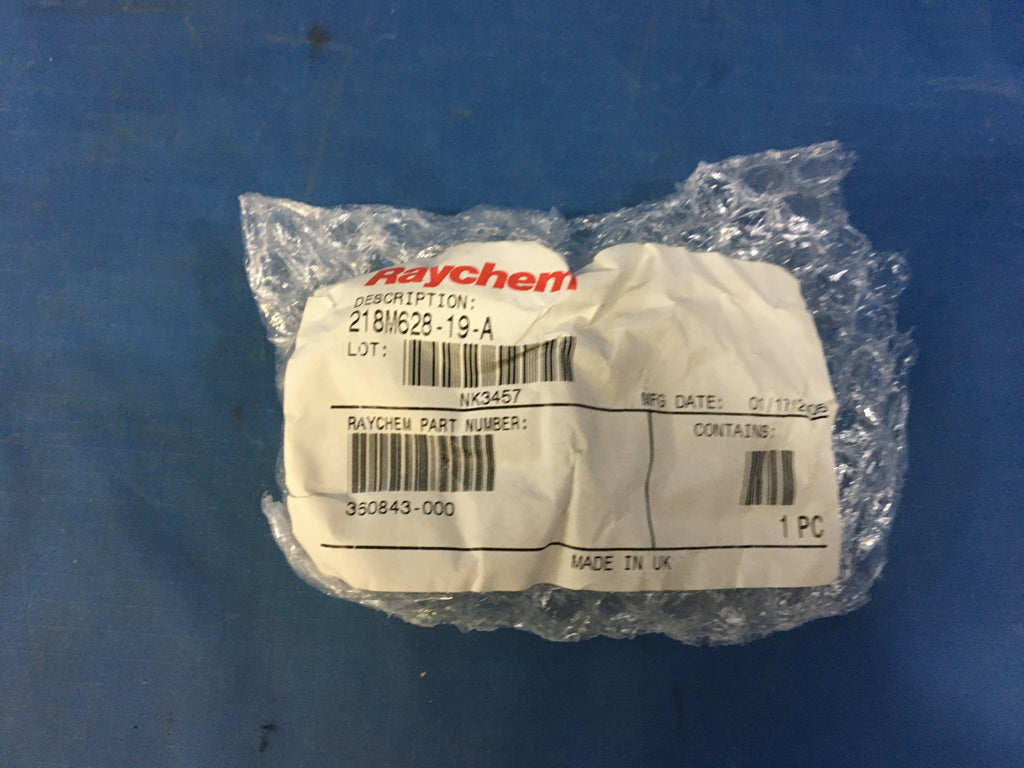

NSN:5935-01-495-5741     Model:218M628-19A    P/N:360843-000
ITAR Registered seal

An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. it is not designed for permanent attachment to a cable, cord, coaxial line, or wire. the physical shape of an electrical connector should not be the determining factor of its name. tee, angle, straight, and y-shaped adapters are all adapter, connector. excludes adapter, connector to lampbase; adapter, lampholder to connector; adapter (1), cable clamp to connector; and adapter, lampholder. for items designed as a mechanical connection between an electrical conduit and an electrical connector, see adapter (1), electrical conduit.

NSN Properties and Flags
NATO Stock Number
5935-01-495-5741
DEMIL
Yes - ITAR Controlled
Body Style
Straight shape, internal coupling
Overall Length
1.435 inches
Overall Diameter
2.100 inches
Unthreaded Mounting Hole Diameter
1.694 inches
Threaded Device Type
Coupling facility
Shell Type
Solid
Connector Locking Method
Snap ring
Shell Material
Aluminum alloy 2011
Color
Green



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
