Cole Instrument Corp

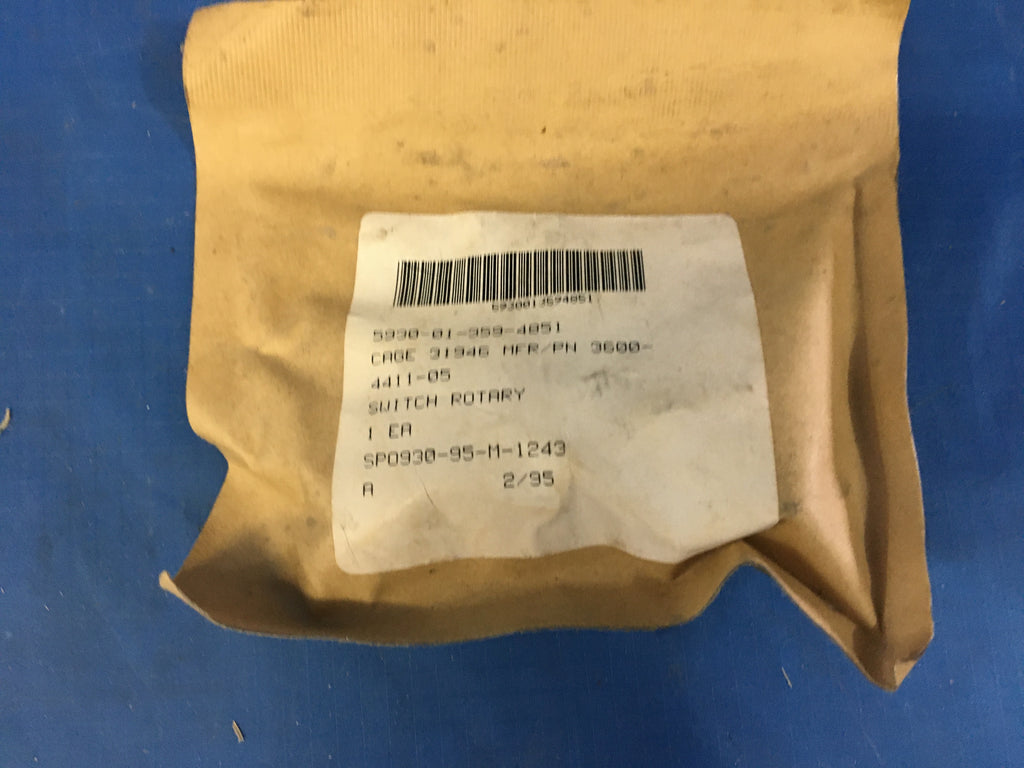

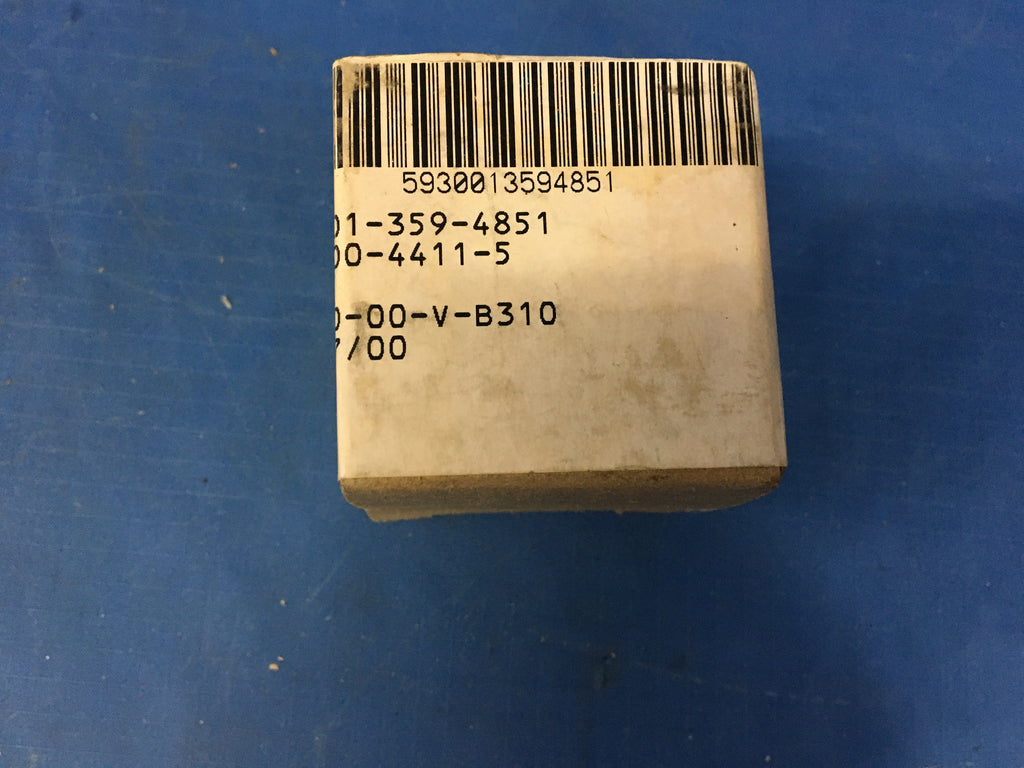

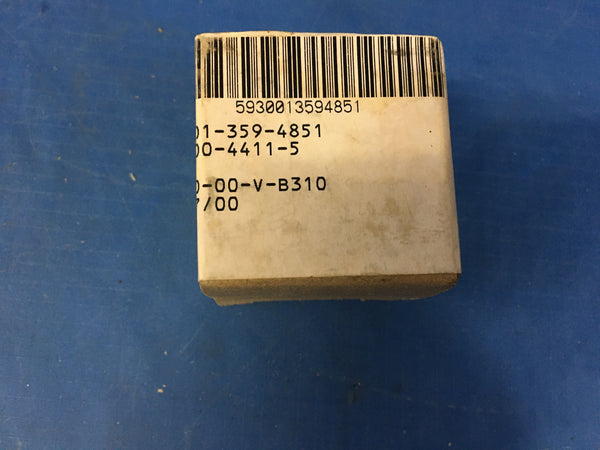

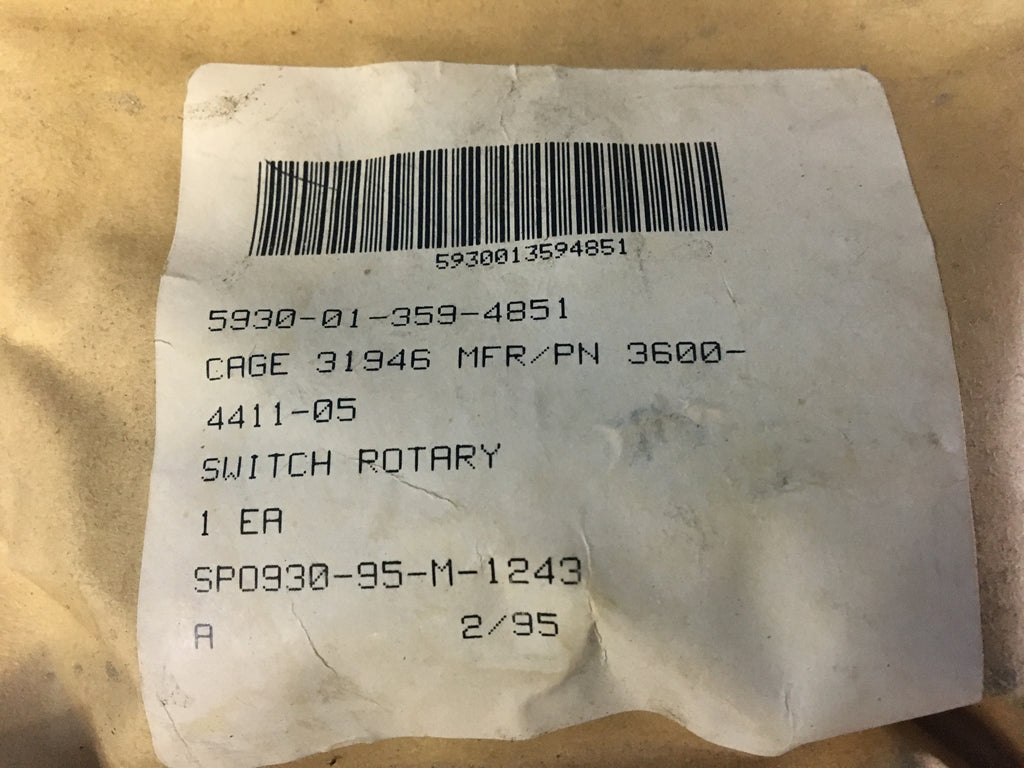

Cole Instrument Rotary Switch NSN:5930-01-359-4851 Model:3600-4411-5

Regular price $69.99

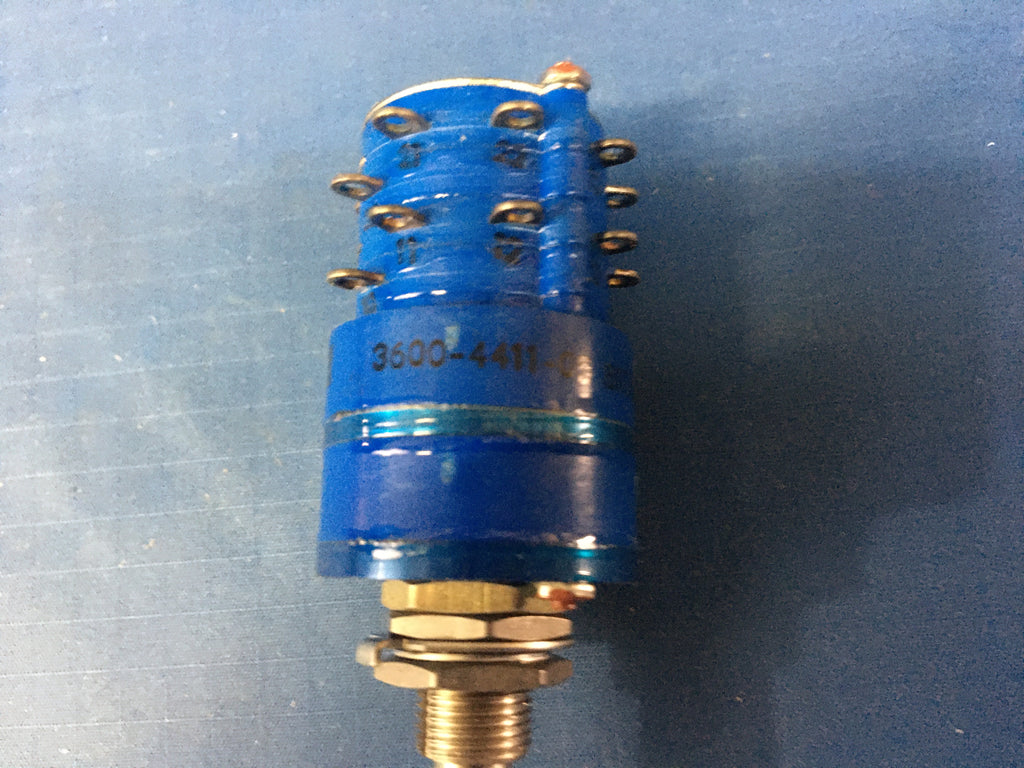

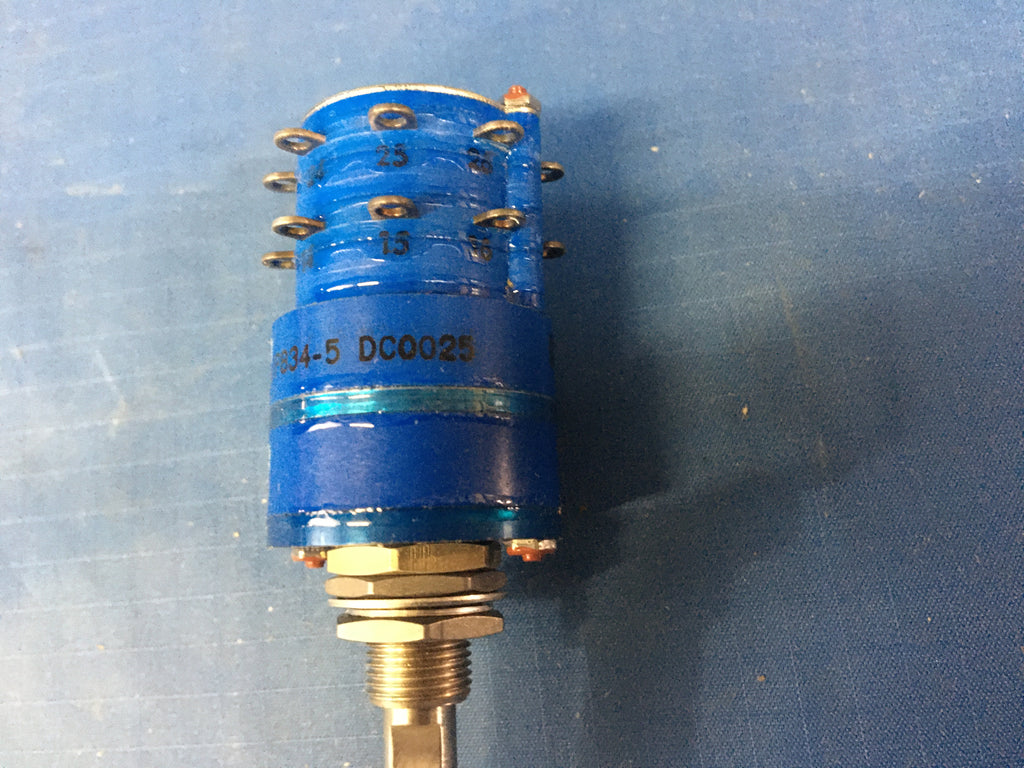

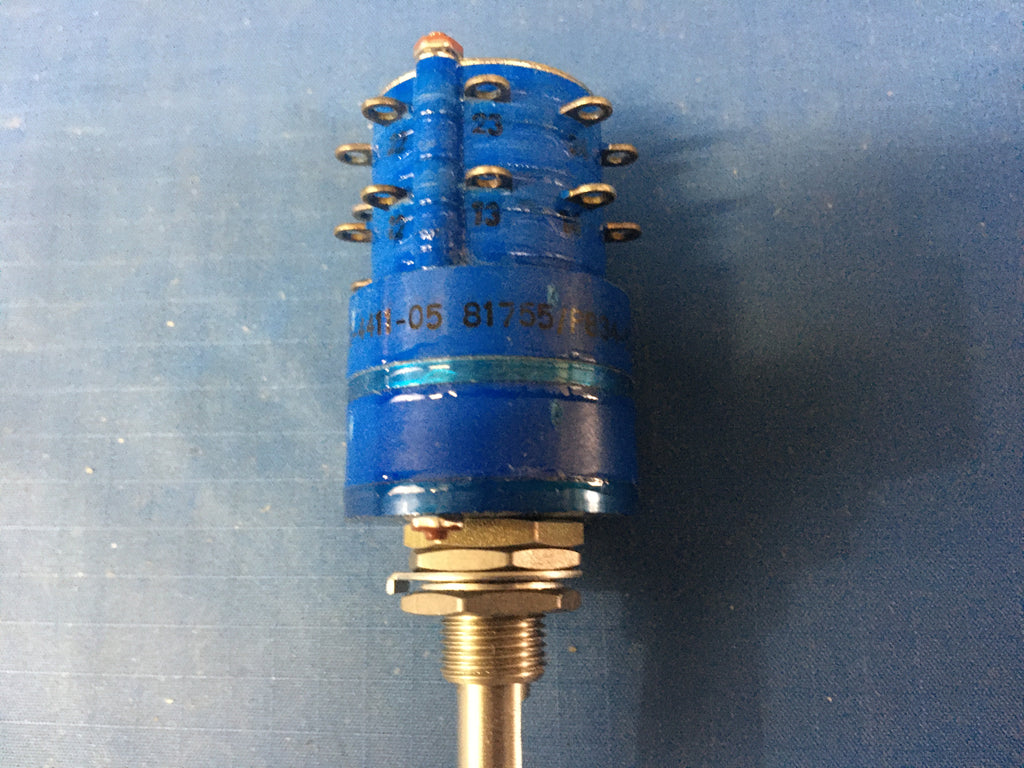

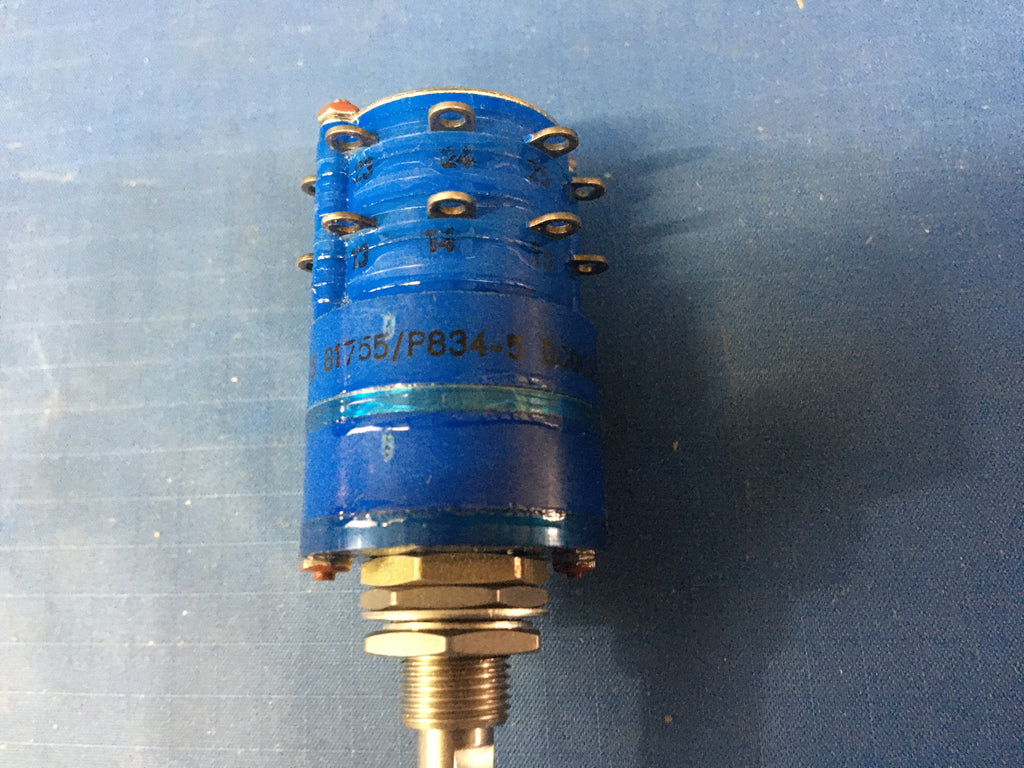

Rotary Switch

NSN: 5930-01-359-4851 | Model: 3600-4411-5
ITAR Registered seal

A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see switch, sensitive. Excludes relay, rotary; switch, stepping; and switch, telephone (as modified).

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Class
2A single mounting facility
Thread Length
0.440 inches single mounting facility
Hazardous Locations/environmental Protection
Explosion proof
Overall Length
2.740 inches
First Flat Length
0.437 inches single actuator
Flat Height
0.216 inches single actuator
Shaft Diameter
0.250 inches single actuator
Shaft Length
0.500 inches single actuator
Overall Diameter
1.306 inches
Nonturn Device Radius
0.375 inches at 3: 00 o'clock
Individual Section Quantity
Nonturn Device Type
Tab at 3: 00 o'clock
Operating Tempurature Range
-55.0/+125.0 degrees celsius
Switch Contact Basic Design
Nonpile-up nonsymmetrical
Pole Quantity
1 each section front
Throw Quantity
7 each section rear
Mounting Method
Threaded bushing single mounting facility
Features Provided
Push to turn
Thread Size
0.375 inches single mounting facility
Contact Voltage Rating In Volts
115.0 ac at sea LEVEL28.0 dc at sea level
Shaft Flat/slot Angular Location
22.5 degrees from non turn device single actuator
Switch Actuator Indexing Position Quantity
7 single actuator
Shaft Type
Round, flatted single actuator
Terminal Type
Tab, solder lug
Contact Switching Action
Breaks before makes 1ST section rear makes before breaks 2ND section rear
Switch Actuator Positioning Increment
45.0 degrees single actuator
Detent Rotational Torque Range
+2.000/+5.000 inch-pounds single actuator
Switch Actuator Stop Device Type
Fixed stop single actuator
Contact Load Current Rating
2.0 amperes restive load ac at sea level and 1.0 amperes inductive load ac at sea LEVEL2.0 amperes restive load dc at sea level and 1.0 amperes inductive load dc at sea level
Special Features
Switch body sealed at terminals to prevent internal liquid flux contamination
Style Designator
Tap, circular, bushing mount
Thread Series Designator
Unef single mounting facility
