CIVACON
NSN 4730-00-840-5348

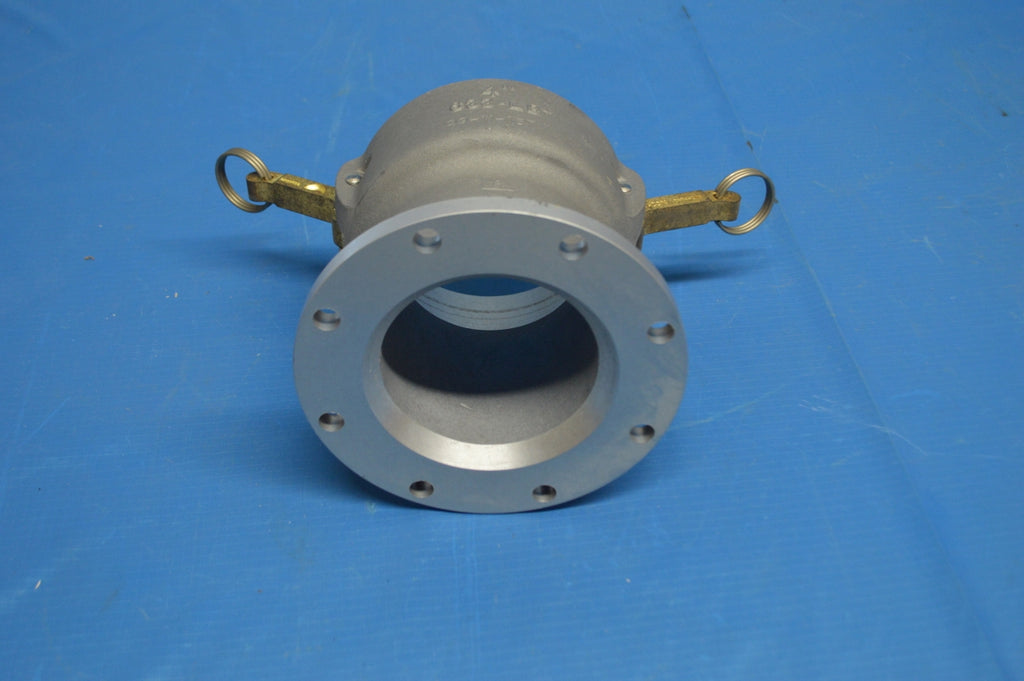

Civacon 4" Quick Disconnect Coupling Half P/N:27027 NSN:4730-00-840-5348
Regular price
$39.99
Quick Disconnect Coupling Half
SKU: 4730008405348 | Model: 4LBNSN 4730-00-840-5348
Specifications from the Manufacturer
Overall Length:
5.625 inches nominal
Quick Disconnect Method:
Cam-locking all ends
Quick Disconnect Nominal Size:
4.000 inches all ends
Bolt Hole Quantity:
8
Basic Shape Style:
3 round first fluid end connection
Connection Style:
Plain all ends
Connection Type:
Flange first fluid end connection
Connection Type:
Internal quick disconnect all ends
Nominal Outside Diameter:
6.625 inches
Nominal Thickness:
0.375 inches
Bolt Hole Nominal Diameter:
0.438 inches
Bolt Circle Nominal Diameter:
5.875 inches
Material:
Aluminum alloy body
Material Document And Classification:
Qq-a-601,t6 fed spec single material response body
Surface Treatment:
Anodize body
Surface Treatment Document And Classification:
Mil-a-8625,ty 2 mil spec single treatment response body
Style Designator:
Male coupling half
Specification/standard Data:
A-a-59326/8 professional/industrial association specification
Nondefinitive Spec/std Data:
1 class
