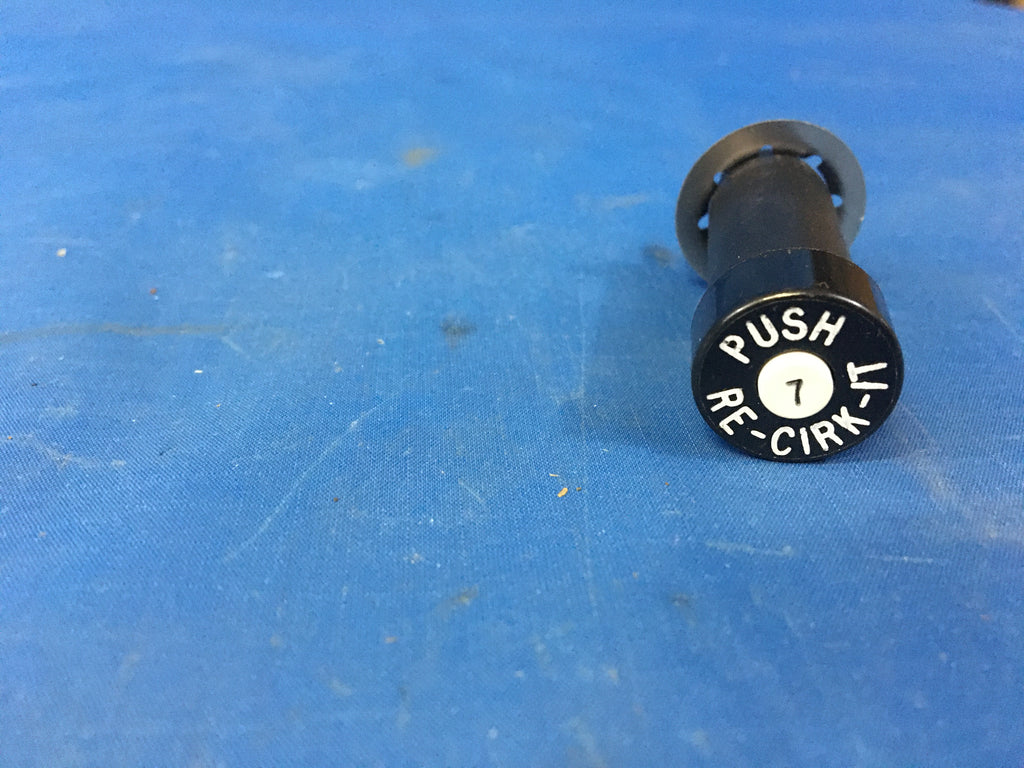

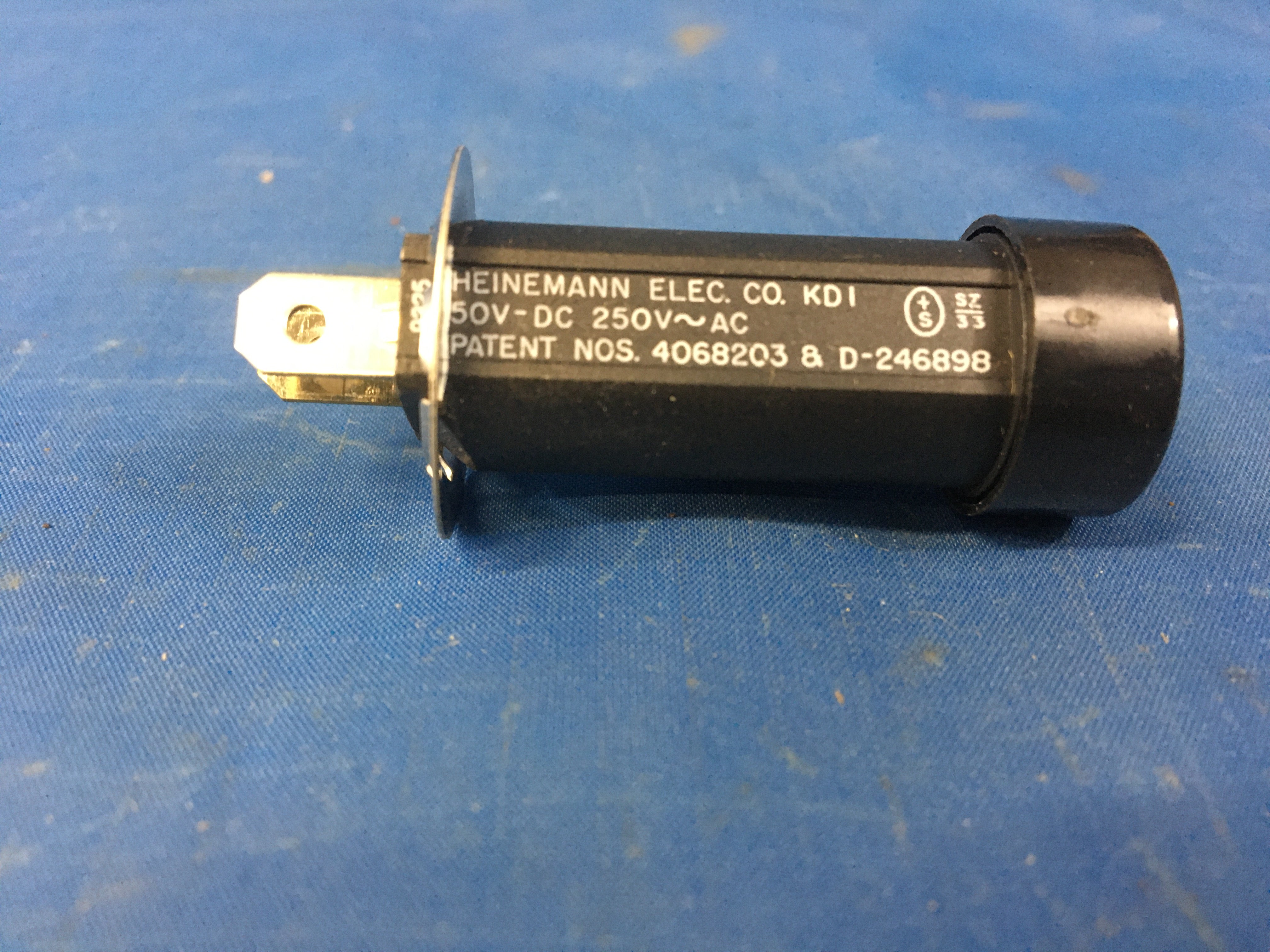

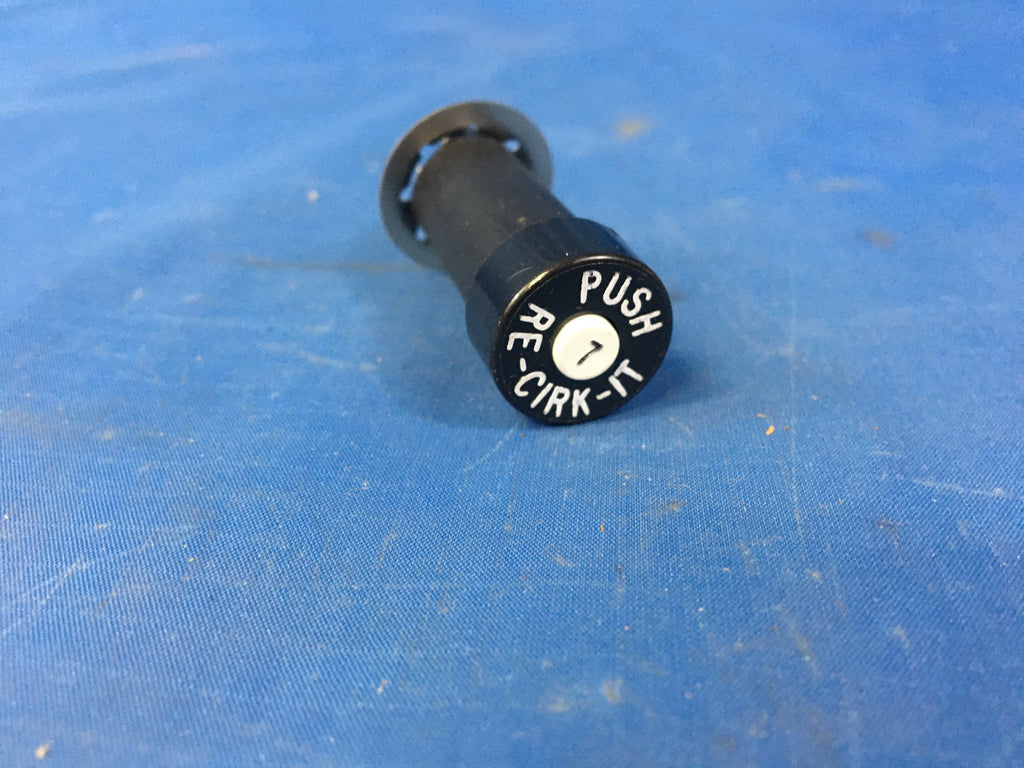

Circuit Breaker NSN: 5925-01-141-8406 P/N: KD1-7

Please fill out the form below for a price quote and availability on this item.

Circuit Breaker- A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. may include provisions for manual operation. at least one set of contacts must be in series with the actuating element(s). a combination of semiconductor and passive devices may be used in lieu of contacts. for automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). for items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. excludes circuit breaker box and magneto "breaker" assemblies. see also switch (as modified); and controller.

Actuator Function: Reset
Actuator Position Designation: At pole one
Body Length: 2.150 inches nominal
Body Style: Single pole type
Case Material: Plastic
Circuit Protection Type: Overcurrent single location
Fragility Factor: Moderately rugged
Frequency In Hertz: 50.0 single location or 60.0 single location
Maximum Continuous Load Current Rating Per Pole: 7.0 amperes ac single location and 7.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 1000.0 ac single location and 200.0 dc single location
Mounting Facility Type And Quantity: 1 clip
Operating Voltage Type And Rating Per Pole In Volts: 240.0 ac single location and 32.0 dc single location
Overall Diameter: 0.635 inches nominal
Inclosure Protection Type For Which Designed: Fungus resistant
Internal Trip Release Configuration: Series trip single location
Main Contact Tripping Mechanism Type: Trip free
Manual Actuator Type And Quantity: 1 push button
Reset Method: Manual
Pole Quantity: 1
Storage Type: General purpose warehouse

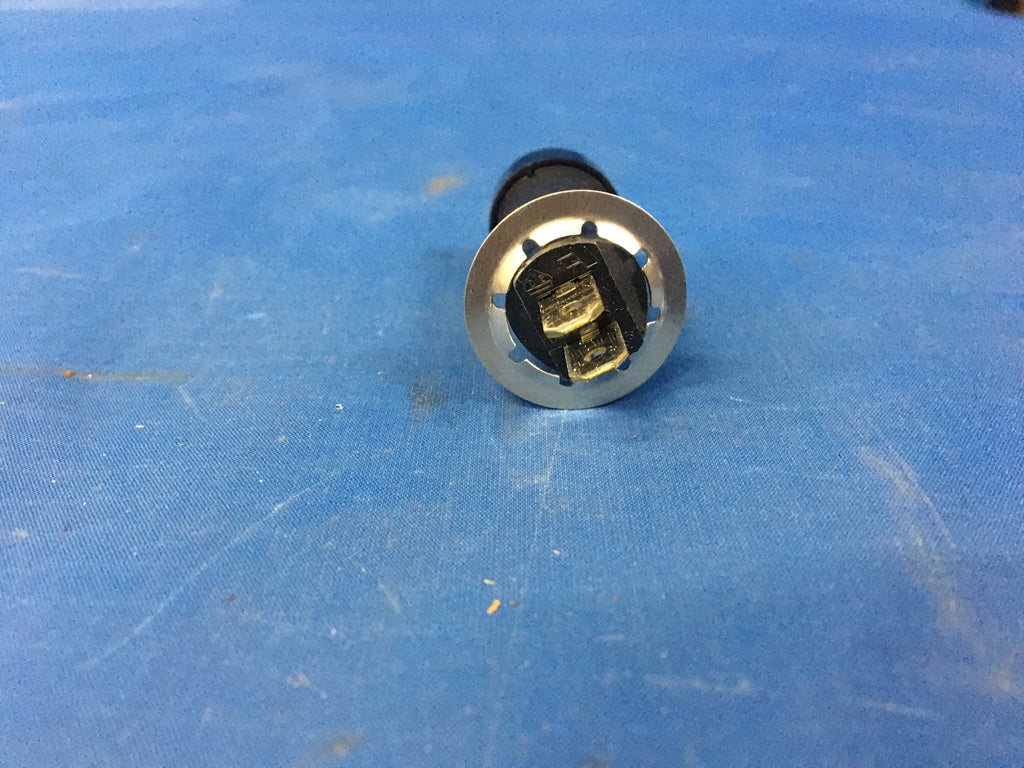

Terminal Type And Quantity: 2 quick disconnect, male
Trip Delay Time In Seconds Per Rated Continuous Current: 3.000 minimum at 200 pct single location and 40.000 maximum at 200 pct single location
Trip Release Ambient Temp Rating: 25.0 deg celsius nominal single location
Trip Release Characteristic: Time delay single location
Trip Release Method: Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 135.0 single location
Unpackaged Unit Weight: 11.0 grams

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
